Specifications
Brand Name :
SFC
Model Number :
XLB-D
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD10000-100000
Payment Terms :
L/C, T/T
Supply Ability :
100Sets/month
Delivery Time :
45days
Packaging Details :
Standard export package
Description

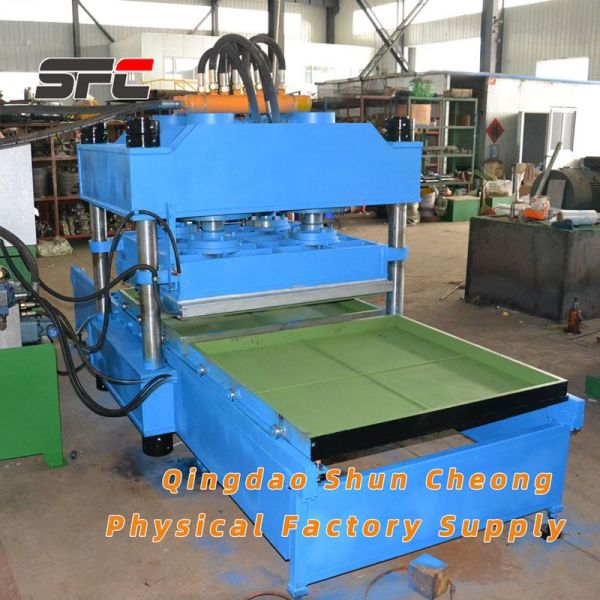

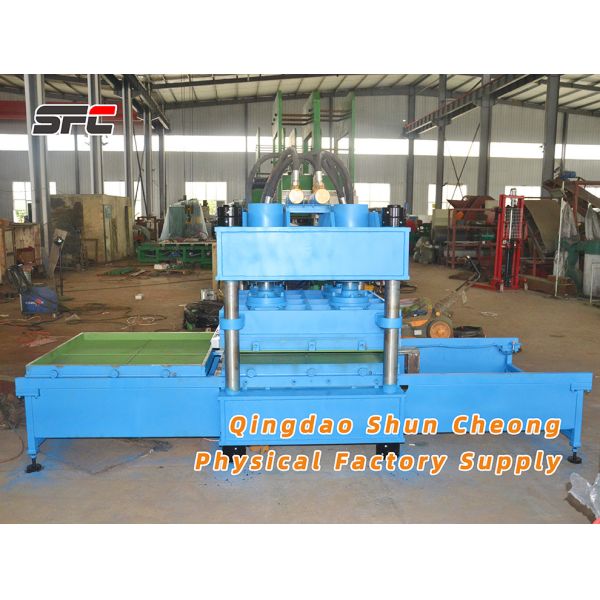

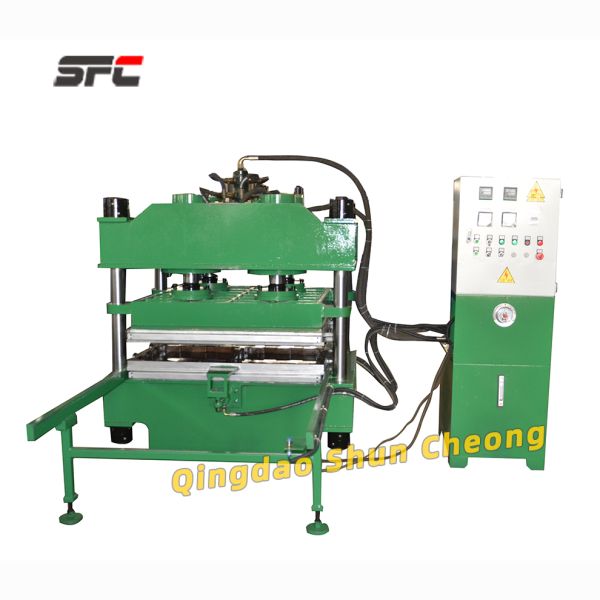

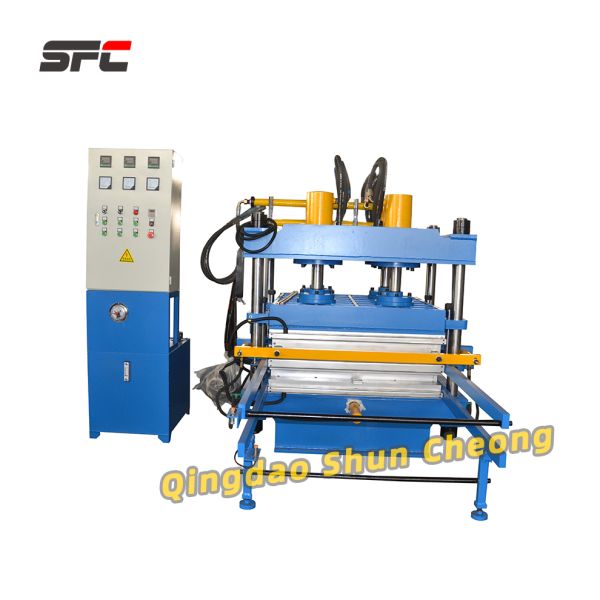

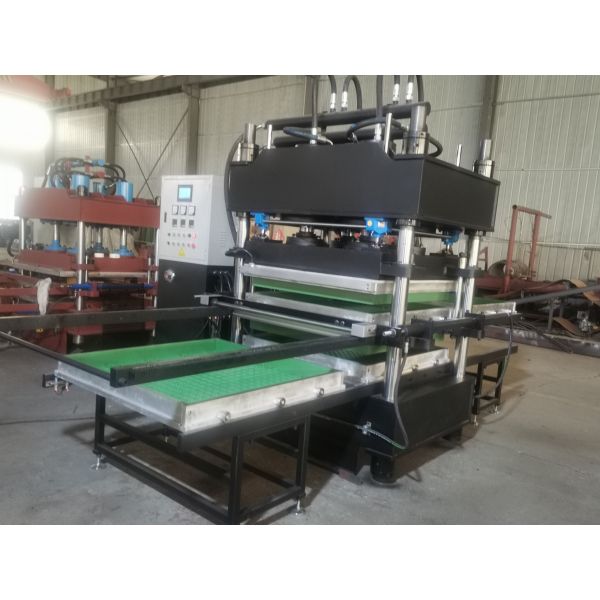

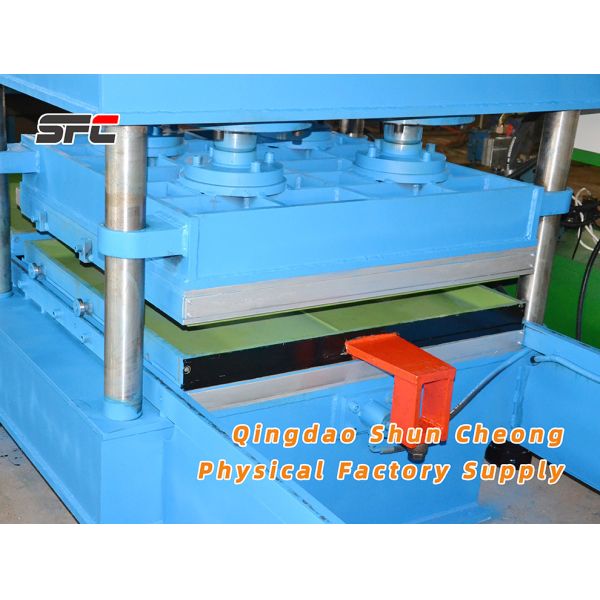

Factory Direct Sale Popular Rubber Tile Making Press Machine


1. This rubber tile vulcanizing press is specially used to produce rubber tiles.
2. Each layer of the vulcanizing press matched with two sets of moulds, so it can be vulcanized batch by batch for better efficiency.
3. The rubber tile vulcanizing press is adopted with manual mould push-out device, so the operation is more convenient.


7. It has passed CE-QA-1218/13 vulcanizing press quality certificate.

Model XLB-D/Q
350X350X1(2)
XLB-D/Q
400X400X2
XLB-D/Q
500X500X2
XLB-D/Q
600X600X2
XLB-D/Q
750X850X2(4)
Nominal pressure(MN) 0.25 0.50 0.60/0.80 1.00 1.60
Plate size(mm) 350X350 400X400 500X500 600X600 750X850
Plate clearance(mm) 125 125 125 125 125
Working layer number 1(2) 2 2 2 2(4)
Plate unit pressure(Mpa) 1.56 3.1 3.2 2.8 2.5
L 1200 1400 1650 1410 1900
W 400 550 600 680 950
H 1300 1500 1600 1750 2000
Weight(kg) 800 1300 1500 3500 6500(7500)


Factory Direct Sale Popular Rubber Tile Making Press Machine


Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

If you come to our factory, we can show the user around us.

5. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Our Services

Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.

In the process of production, we will take photos and send to customers for their track the progress.

Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.

We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.

We supply overseas engineer service and help to train your workers to operate the machine.
