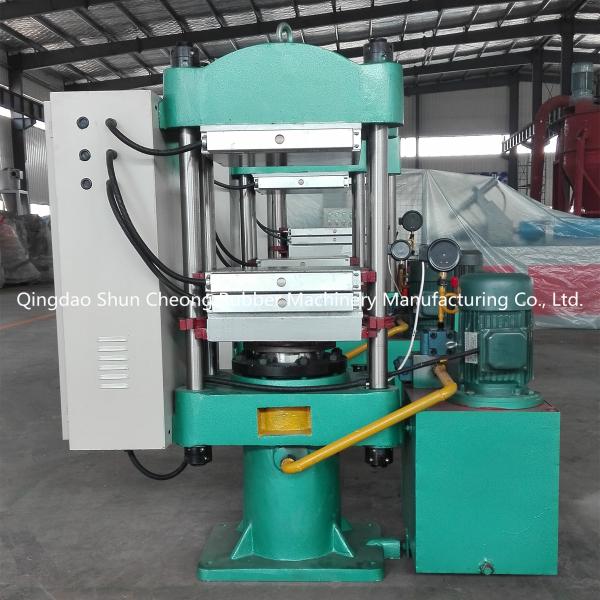

Rubber Hydraulic Oil Seal Vulcanizing Press
Rubber Hydraulic Oil Seal Vulcanizing Press
Rubber Hydraulic Oil Seal Vulcanizing Press
Rubber Hydraulic Oil Seal Vulcanizing Press
Rubber Hydraulic Oil Seal Vulcanizing Press
Rubber Hydraulic Oil Seal Vulcanizing Press
Specifications
Brand Name :
SFC
Model Number :
XLB-400×400×1
Certification :
ISO9001:2015/CE/SGS
Place of Origin :
China
MOQ :
1 Set
Price :
5000-6000 USD per Set
Payment Terms :
L/C, T/T
Supply Ability :
15 Sets per Month
Delivery Time :
25 days
Packaging Details :
Wooden Case
Total Pressure(MN) :
0.50
Dayloigh(mm) :
125
Working Layer :
1
Piston Storke(mm) :
250
Main Motor Power(KW) :
2.2
Size(L×W×H)(mm) :
1600×500×1480
Description

XLB-400×400×1 Vulcanizing Press / Rubber Vulcanizing Press / Hydraulic Press For Rubber Vulcanization

Product Introduction

1. This vulcanizer is a new model product, which is suitable for vulcanization of various rubber products and has a wide range of applications.
2. There are three heating methods in the vulcanization process: electric heating, steam heating and heat transfer oil heating.
3. Fast-open mold features high production efficiency and slow locking to protect the mold.
4. Automatic move-in-and-out and ejecting units allows low labor intensity.
5. Conventional valve and proportional valve are optional; advanced and rational oil-way configuration is energy saving;
6. Electric system adopts PLC and touch screen man-machine interaction.
7. Single machine and double machine for option.
8. We can design various non-standard plate vulcanizers according to customer requirements.

Rubber Hydraulic Oil Seal Vulcanizing Press

Rubber Hydraulic Oil Seal Vulcanizing Press

Rubber Hydraulic Oil Seal Vulcanizing Press

Model XLB-350×350×1/4 XLB-400×400×1/4 XLB-500×500×1/4 XLB-600×600×1/4 XLB-700×700×1/4 XLB-750×850×1/4 XLB-900×900×2
Total Pressure(MN)

0.25

 0.5 0.63 1.00 1.20 1.60

2.00
Plate Distance(mm)

125

 125

125

 125 125 200 300
Working Layer No.

1-4

 1-4 1-4 1-4 1-4 1-4 2
Unit Area Pressure of Hot Plate(Mpa)

2.04

 3.13 2.52 2.77 2.45 2.51 2.47

Plunger Stroke(mm)

250

 250 250 250/400 250 400 400

Heating Mode

Electricity

Electricity /Stream

 Electricity /Stream Electricity /Stream Stream Electricity /Stream Stream

Motor Power(KW)

2.2

 2.2 2.2 2.2 2.2 3 5.5
Size(L×W×H)(mm)

1400×480

×1380

1600×500

×1480

1750×600

×1540

1880×720

×1680

2000×850

×1750

2250×1200

×2200

1400×900

×2400

About Us

Rubber Hydraulic Oil Seal Vulcanizing Press

Rubber Hydraulic Oil Seal Vulcanizing Press

Rubber Hydraulic Oil Seal Vulcanizing Press

Rubber Hydraulic Oil Seal Vulcanizing Press

Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.

our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...

Market: our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions

Professional engineers and teams, then basing on customer requirements, we accept OEM*ODM machines, also oversea engineer service is available.

Our Service

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.

♦ In the process of production, we will take photos and send to customers for their track the progress.

♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.

♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.


2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.
