Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber
Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber
Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber
Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber
Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber
Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber
Specifications
Brand Name :
Tebiete
Model Number :
Heavy Truck Valve Oil Seal
Certification :
IATF 16949: 2016 , ISO 9001:2008
Place of Origin :
China
MOQ :
200 sets
Price :
US Dollars $0.15-$4.02
Payment Terms :
T/T
Supply Ability :
100000 pcs / day
Delivery Time :
10-30 days
Packaging Details :
Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton 12pcs/ carton box
Material :
Rubber, NBR, PTFE, PU,
Feature :
Oil Resistance, Corrosion Proof, Sealing Performance, Factory And Home, Heat-Resisitant
Oem :
Aviable, OEM is welcomed, Acceptable, Highly Welcomed
Sample :
Available, Freight Collect, Provide free samples,
Package :
Inner pack is PE bag and out packaging is carton box,12pcs/ carton box
Product name :
oil seal, V shape rubber oil seal good price, China Supplier FKM Rubber Oil Seal for Gearbox, silicone o ring, Silicone Rubber Lip Seal
Description

Product Name:Heavy Truck Valve stem oil seal ,Valve oil seal Material: NBR, Rubber

Install and replace valve oil seal:


1. Disassembly steps of valve rod oil seal:
(1)Remove the camshaft and hydraulic tappet, and its face down storage, operation must pay attention to the tappet is not interchangeable. Remove the spark plug using the spark plug wrench 3122B, adjust the piston of the corresponding cylinder to the top dead center, and screw the pressure hose vw653/3 into the threaded hole of the spark plug.

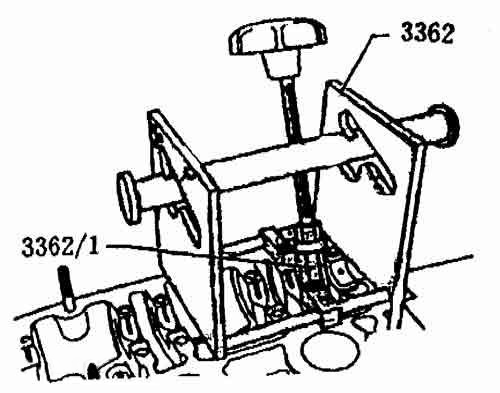

(2) bolt the spring compression tool 3362 onto the cylinder head, as shown in figure (1).

Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber

Adjust the relevant valves to the correct position and connect the pressure hose to the air compressor (air pressure at least 600kPa). Press down the valve spring with the threaded mandrel and thrust piece and remove the spring.
(3) can tap valve spring seat remove air lock block. Pull the valve rod oil seal with tool 3364, as shown in figure (2).

Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber

2. Installation of valve rod oil seal.

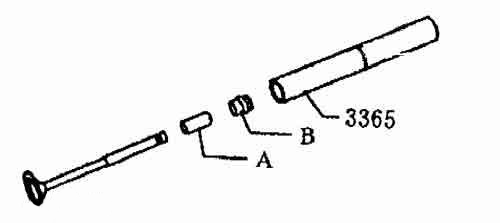

Attach the plastic sleeve (FIG. (3) A) to the valve stem to prevent damage to the new valve stem oil seal. Apply a light coat of oil to the oil lip. Attach the oil seal (figure (3) B) to tool 3365 and slowly push it onto the valve guide. Special note: apply a layer of oil on the valve rod before installing inlet and exhaust.

Heavy Truck Valve Stem Oil Seal ，Valve Oil Seal Material: NBR, Rubber

Key Benefits:

A. Easy to Fit - Any tool will work, even your hands.

B.Impossible to Damage during Installation.

C.Standard & Premium Versions available.

D.Unrivalled protection against contaminants.

E.Eco-friendly - low friction from the outset.
