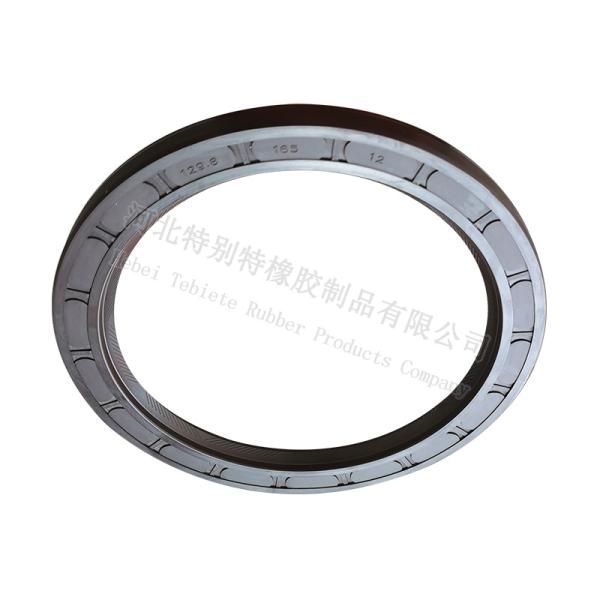

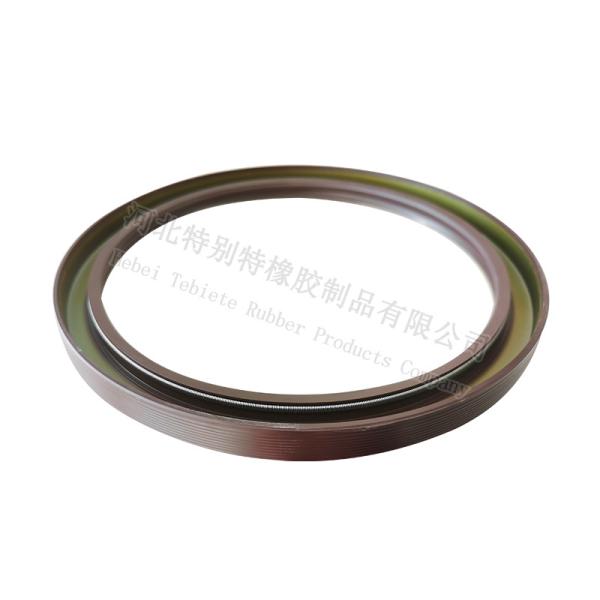

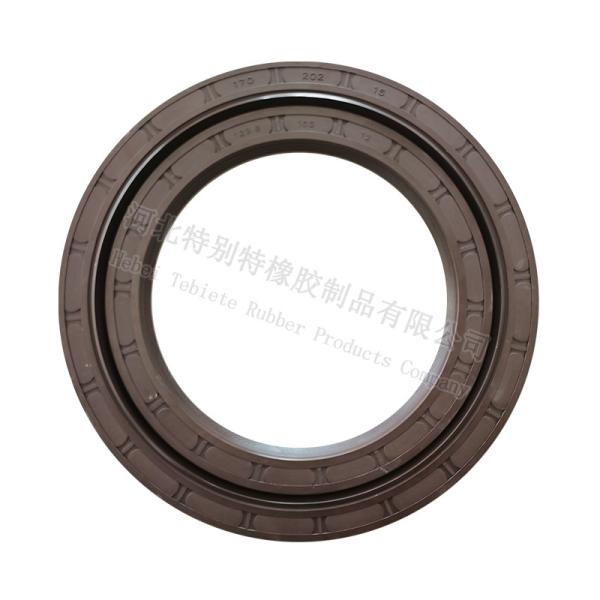

Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
Specifications
Brand Name :
Tebiete
Model Number :
170X202X15/129.8x165x12, 170*202*15/129.8*165*12
Certification :
IATF 16949: 2016 , ISO 9001:2008
Place of Origin :
China
MOQ :
500 pcs
Price :
US Dollars $0.15-$4.02
Payment Terms :
T/T
Supply Ability :
10000 pcs/ day
Delivery Time :
10-30 days
Packaging Details :
Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton
Material :
NBR
Size :
Standard
Hardness :
30-90 Shore
OEM :
OEM is Welcomed
Sample :
Freight Collect
Standard :
Standard or Customize
Description

Product Name:

Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12

Material: NBR

Oil Seals Introduction:


Oil Seals are used to prevent oil leakage from rotary shaft and housing clearance. It has a flexible lip that rubs against a shaft or housing to prevent leakage or ingress of fluid and dirt. Seal selection is based on shaft diameter, housing bore diameter and width, shaft speed, working temperature, fluid, pressure differential and service conditions. Common configurations include single lip, double lip, triple lip and four or more lips.

Rubber sealing element or lip material choices for oil seals include: Nitrile Rubber (NBR), Acrylic Rubber (ACM), Silicon Rubber (VMQ), Fluorocarbon Rubber (/FKM), Ethylene Propylene Rubber (EPDM), Tetrafluoroethylene Resin (PTFE). To resist wear, the compound durometer (hardness) is typically 70 to 85 shores A.

Product Details:

Product Name Rubber o ring/oil seal for sealing
Materials NBR, HNBR, EPDM, SILICONE, , FLS, FFPM, PTFE
Temperature

NBR(-40~120°C),FFKM(-20~320°C)

(-20~200°C),Silicone (-70~220°C)

EPDM(-50~150°C),PU(-40~90°C)
Feature Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
Certification ISO 9001:2008
Hardness 30-90 shores A
Color Red,Black,White, blue, green,Clear,etc
Size Any size, Customized/standard and nonstandard
Sample Time If in stock, within 3 days after payment
Delivery Time

10-20 days by shipping after final payment
Shipping By Ships
Customized OEM & ODM are welcomed
Packing Plastic bag&carton box or according to your requirements
Certification IATF 16949: 2016

Dana Axle rear wheel Oil Seal170X202X15/129.8x165x12, Flexible Lip High Speed NBR Material 170*202*15/129.8*165*12
