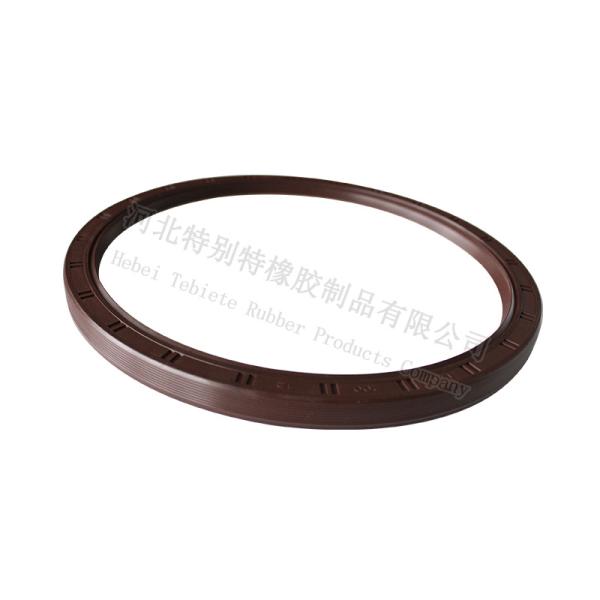

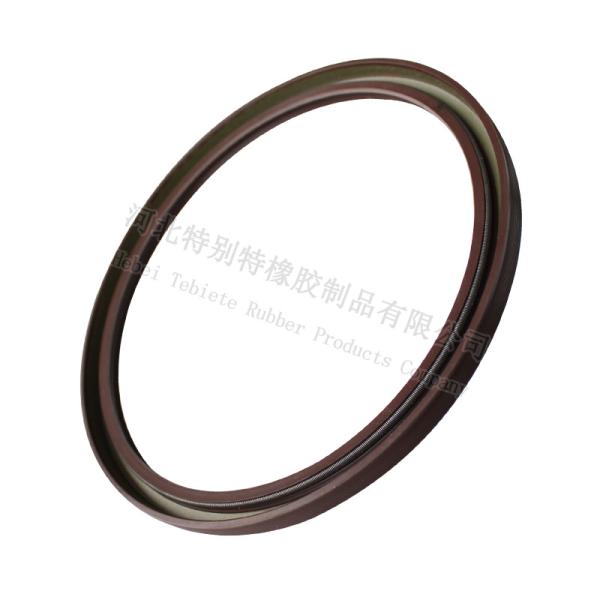

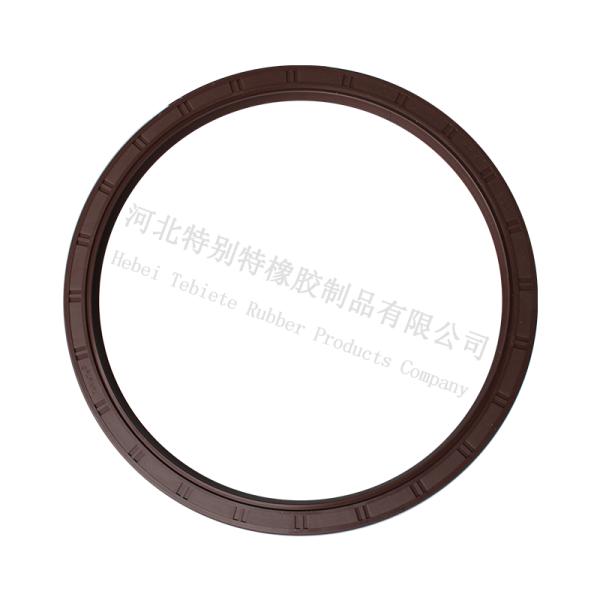

OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal
Specifications
Brand Name :
TE BIE TE/ customized
Model Number :
175x200x12 175*200*12
Certification :
IATF 16949: 2016 , ISO 9001:2008
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10000pcs /day
Delivery Time :
5-40days(accroding to quantity)
Packaging Details :
Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton
Materia; :
NBR
Color :
Brown, Black,Blue,Green or depends on requirments
OEM :
3104055
Sample :
Free
Size :
175x200x12 OR customized
Hardness :
20-90 shore A (depend on material)
Description

Product Name:

Rear Wheel Hub Oil Seal for FAW AOE Axle 175X200X12MM TC Oil Seal

OEM 3104055

Product Description:

Product Name Hub Oil Seal for FAW AOE Axle
Materials NBR or Customized
Feature Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
Certification ISO 9001:2008
Hardness 30-90 shores A
Color Red,Black,White, blue, green,Clear,etc
Size Any size, Customized/standard and nonstandard
Sample Time If in stock, within 3 days after payment
Delivery Time

10-20 days by shipping after final payment
Shipping By Ships
Customized OEM & ODM are welcomed
Packing Plastic bag&carton box or according to your requirements
Certification IATF 16949: 2016

Material Feature:

MATERIAL TEMPERATURE ADANTAGES LIMITATION

Nitrile Rubbrt

(NBR)

 -40~125ºC

Good oil and fuel resistance

High tensile strength

Low swelling in water

Poor weather and ozine resistance

Poor resistance against polar lkuids

Poor resistance against clhydrocarbon

Poor resistance against aromatic fluids

Fluorinated Rubber

(FKM)

 -20~250ºC

The resistance against oil and fuels is better than other types

The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons

Exccllcent hcat resistance

Exccllcent weather and ozonc resistance

Exccllcent acid resistance

Low swelling in water

Limited cold flexibliity

Limited tensile and tear strength

Limited wear resistance

High compression set in hot water

Poor resistance to polaric solvents

Polyacrylate Rubber

(ACM)

 -25~150ºC

Good oil and fuels resistance

Good weater and ozone resistance

Not usable in contact with water and water solutions

Limited cold flexibility

Limited tensile strength and tear resistance

Poor wear reisistance

Poor resistance against polar and aromatic and chlorinared hydrocarhons

Silicone Rubber

(VQM)

 -60~225ºC Best heat resistance of all rubber types
Excellent low temp resistance of all rubber types
Excellent weather and ozone resistance

Poor tensile and tear strength

Poor wear resistance

Sensitive to hydrolysis

Poor resistance against aromatic oils and oxidized mineral oils

Different Type of Oil Seals

Type

 Material Lip Spring Feature
TC NBR & FKM Double Lips Single Metal Coverd Rubber
TB NBR Double Lips Single Metal Case
TA NBR Double Lips Single Metal Case
sc NBR & FKM Single Single Double Metal Shell
SB NBR Single Single Metal Case
SA NBR Single Single Double Metal Shell
Dc NBR Double Lips Double Double Springs
vc NBR & FKM Single Without Metal Coverd Rubber
VB NBR Single Without Metal Case
Tcv NBR Double Lips Single High Pressure
TCN NBR Double Lips Single High Pressure
PTFE PTFE Single & Double Lips Without Stainless steel
HTCL NBR & FKM Double Lips Single Inside thread L
HTCR NBR & FKM Double Lips single lnside thread R

OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal

OEM 3104055 Rear Wheel Hub Oil Seal For FAW AOE Axle 175X200X12MM TC Oil Seal

FAQ:

Q : When can I get the price?

A : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us by E-mail,so that we will regard your inquiry as the first priority.

Q : How can I get a sample to check your quality?

A :After price confirmation, you can require for samples to check our quality.

Q : Can you do the design for us?

A :Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can manufacture the products as per your requirements.

Q : How long can I expect to get the sample?

A :It will be ready for delivery in 7-10 days. The samples will be sent to you via express and arrive in 3-5 days.

Q : What about the lead time for mass production?

A :Usually 30-45 days after you confirm the PP sample and we received your deposit.
