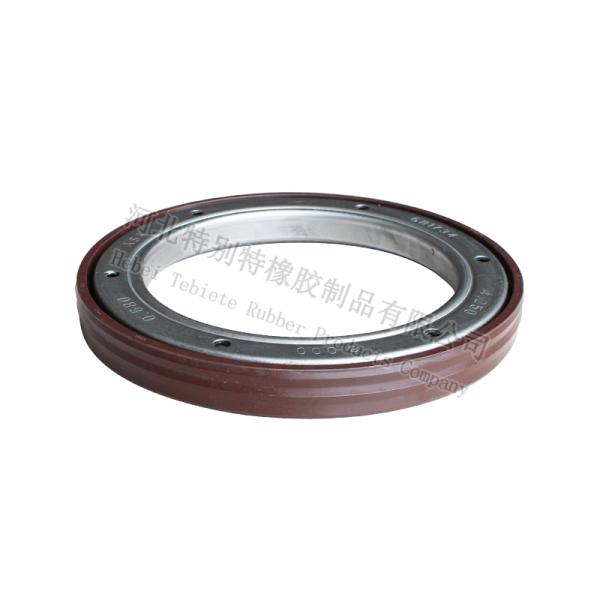

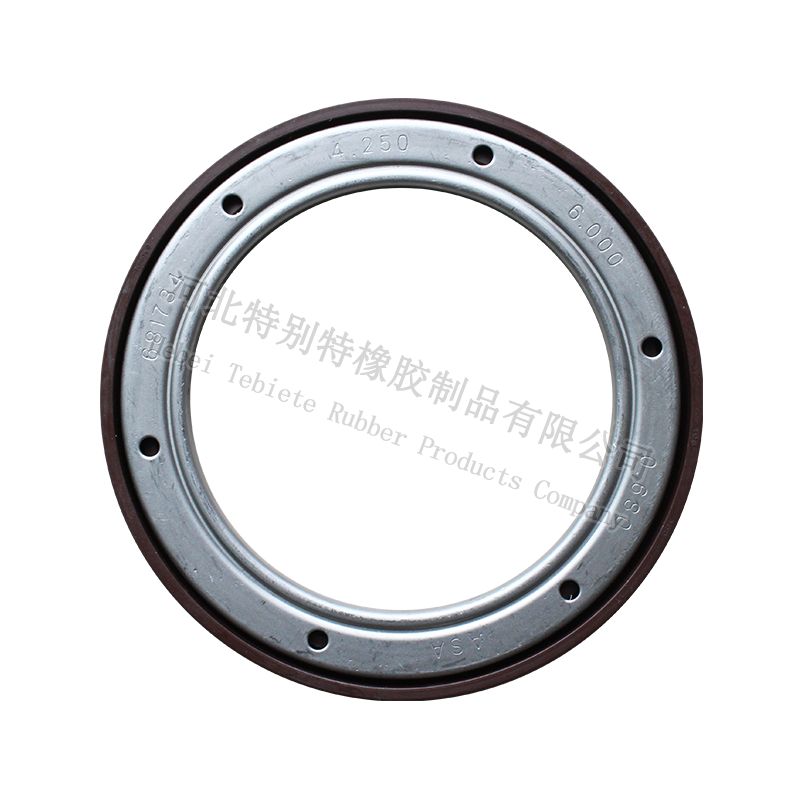

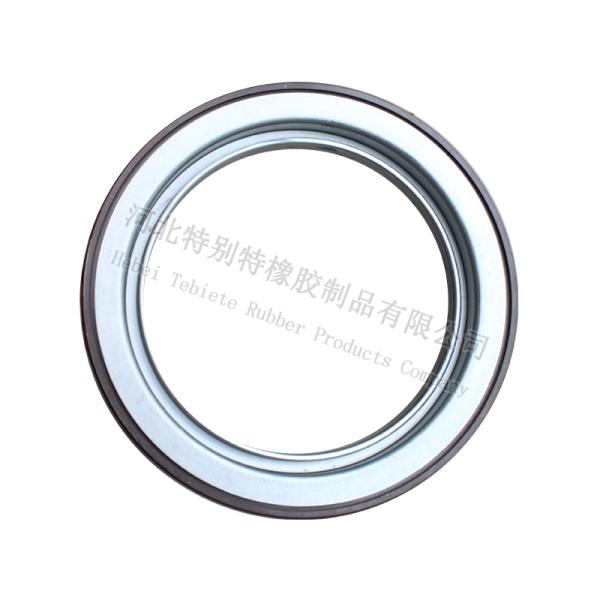

OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
Specifications
Brand Name :
TBT/ customized
Model Number :
ID:108mm OD:153mm H:17mm
Certification :
IATF 16949: 2016 , ISO 9001:2008
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10000pcs /day
Delivery Time :
5-40days(accroding to quantity)
Packaging Details :
Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton
Material :
NBR or Customized
Type :
labyrinth
Apply :
Fuwa Axle 13T
Feature :
Oil Resistance, Corrosion Proof, Sealing Performance, Factory And Home, Heat-Resisitant
Temperature :
Resistance to high and low temperatures up to -40℃to +300℃
Warranty :
12 months
Description

Product Name:

Fuwa Bridge 13T Rear Wheel Hub Oil Seal 108x153x17 4.250x6.000x0.680Inch

OEM: 681734

Product Description:

Product Name Fuwa Axle Oil Seal
Materials NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE
Size 4.250x6.000x0.680
Temperature

NBR(-40~120°C),FFKM(-20~320°C)

Viton(-20~200°C),Silicone (-70~220°C)

EPDM(-50~150°C),PU(-40~90°C)
Feature Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
Certification ISO 9001:2008
Hardness 30-90 shores A
Color Red,Black,White, blue, green,Clear,etc
Size Any size, Customized/standard and nonstandard
Sample Time If in stock, within 3 days after payment
Delivery Time

10-20 days by shipping after final payment
Shipping By Ships
Customized OEM & ODM are welcomed
Packing Plastic bag&carton box or according to your requirements
Certification IATF 16949: 2016

Oil Seal Type:

Different Type of Oil Seals
Type Material Lip Spring Feature
TC NBR & FKM Double Lips Single Metal Coverd Rubber
TB NBR Double Lips Single Metal Case
TA NBR Double Lips Single Metal Case
sc NBR & FKM Single Single Double Metal Shell
SB NBR Single Single Metal Case
SA NBR Single Single Double Metal Shell
Dc NBR Double Lips Double Double Springs
vc NBR & FKM Single Without Metal Coverd Rubber
VB NBR Single Without Metal Case
Tcv NBR Double Lips Single High Pressure
TCN NBR Double Lips Single High Pressure
PTFE PTFE Single & Double Lips Without Stainless steel
HTCL NBR & FKM Double Lips Single Inside thread L
HTCR NBR & FKM Double Lips single lnside thread R

SomeNumber Here For Your Reference:

TYPE SIZE TYPE SIZE TYPE SIZE
AXLE 1.000*1.752*0.641 AXLE 3.875*5.690*0.927 AXLE 4.250*6.250*1.375
AXLE 1.063*2.000*0.615 AXLE 3.875*5.691*0.938 AXLE 4.250*6.254*1.250
AXLE 1.750*2.500*0.690/0.743 AXLE 3.875*5.696*0.875 AXLE 4.375*5.748*0.605
AXLE 2.225/2.375*3.125*0.6/0.7 AXLE 3.875*5.696*0.875 AXLE 4.375*5.751*0.945
AXLE 2.250*3.000*0.800 AXLE 3.938*5.505*0.750 AXLE 4.375*5.751*1.016
AXLE 2.250*3.251*0.689 AXLE 3.999*5.747*0.960 AXLE 4.375*5.763*0.930
AXLE 2.250*3.251*0.740 AXLE 4.000*5.126*1.047 AXLE 4.375*5.884*0.825
AXLE 2.500*3.500*0.500 AXLE 4.000*5.375*1.000 AXLE 4.375*5.905*1.000
AXLE 2.750*3.779*0.762 AXLE 4.000*5.625*0.605 AXLE 4.375*6.003*1.047
AXLE 2.875*3.625*0.472 AXLE 4.000*5.626*0.688 AXLE 4.375*6.251*0.605
AXLE 2.875*3.875*0.500 AXLE 4.000*5.626*0.700 AXLE 4.500*5.374*0.905
AXLE 3.437*4.755*0.642/0.720 AXLE 4.000*5.750*0.928 AXLE 4.500*5.750*0.960
AXLE 3.437*4.755*0.699 AXLE 4.000*5.750*1.068 AXLE 4.500*5.876*0.984
AXLE 3.438*4.757*0.700 AXLE 4.000*5.754*1.079 AXLE 4.625*5.999*0.840
AXLE 3.438*4.757*0.859 AXLE 4.000*5.757*0.866 AXLE 4.606*6.311*1.141
AXLE 3.500*4.547*0.900 AXLE 4.000*5.757*0.930 AXLE 4.625*6.001*0.912
AXLE 3.500*4.841*0.919 AXLE 4.000*5.757*0.930 AXLE 4.625*6.001*1.000
AXLE 3.500*4.842*0.903 AXLE 4.125*5.375*0.605 AXLE 4.625*6.006*0.846
AXLE 3.500*4.842*0.904 AXLE 4.250*6.000*0.637 AXLE 4.625*6.622*1.093
AXLE 3.500*4.842*0.925 AXLE 4.250*6.000*0.680 AXLE 4.750*6.250*0.813
AXLE 3.574*4.757*0.548 AXLE 4.250*6.000*0.750 AXLE 4.750*6.308*1.115
AXLE 3.625*4.810*0.921 AXLE 4.250*6.000*0.750 AXLE 4.765*6.251*0.605
AXLE 3.625*4.810*4.823*0.921 AXLE 4.250*6.000*0.766 AXLE 4.765*6.311*1.078
AXLE 3.875*5.126*0.605 AXLE 4.250*6.000*1.000 AXLE 4.766*6.001*1.063
AXLE 3.875*5.129*0.844 AXLE 4.250*6.008*1.142 AXLE 4.765*6.311*1.115
AXLE 3.875*5.376*0.905 AXLE 4.250*6.008*0.974 AXLE 4.766*6.311*1.125
AXLE 3.875*5.500*0.938 AXLE 4.250*6.048*0.680 AXLE 4.767*6.308*1.420
AXLE 3.875*5.685*0.685/0.920 AXLE 4.250*6.250*1.188 AXLE 4.875*5.999*0.625
AXLE 3.875*5.690*0.875 AXLE 4.250*6.250*1.300 AXLE 4.875*6.373*0.921


OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch
OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch

OEM 681734 Fuwa Bridge 13T Rear Wheel Hub Rubber Oil Seal 108x153x17 4.250x6.000x0.680 Inch

FAQ:

Q1: Are you trading company or manufacturer?

A:We are factory, we have manufacturing experience for rubber products more then 20 years.

Q2: Can I get some samples?

A: Yes, Sample order is available for quality check and market test .But you have to pay the express cost.

Q3: What’s delivery time?

A: It usually takes about 1-2 working days for small order and 10-15 days for big order.

Q4: Can I mix different power in one container?

A: Yes ,Different models can be mixed up in one container,even one order.

Q5: If I only know the excavator model, but can not offer parts No., what should I do ?

A. If possible, you can send us pictures of old products, nameplate or the size for reference.
