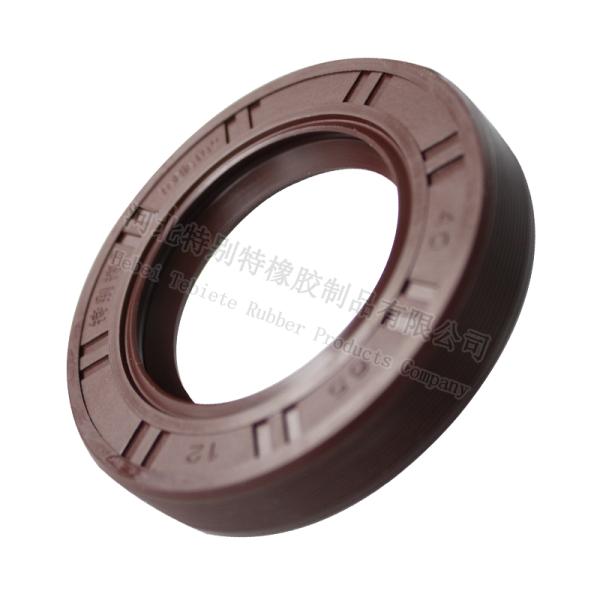

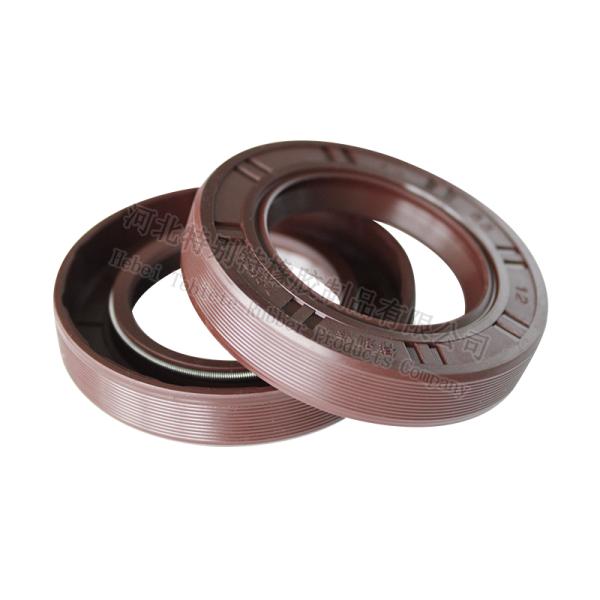

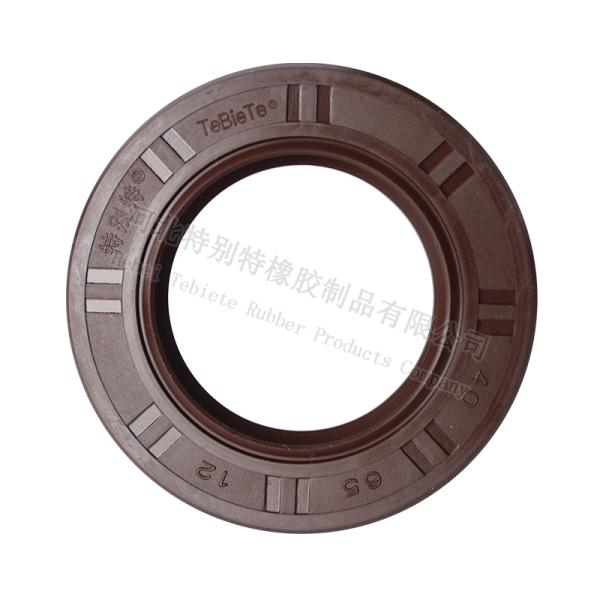

40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal
Specifications
Brand Name :
TBT/ customized
Model Number :
ID:40mm OD:65mm H:12mm
Certification :
IATF 16949: 2016 , ISO 9001:2008
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10000pcs /day
Delivery Time :
5-40days(accroding to quantity)
Packaging Details :
Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton
Material :
NBR、FKM or Customized
Type :
TC
Apply :
Agricultural Machinery
Warranty :
12 months
Application :
Industry, excavator, Pump Hydraulic Machine Rotary Shaft, bulldozer, Hydraulic loader
Mold in Stock :
5000 items
Description

Product Name:

TC Type National Agricultural Machinery Oil Seal Oil Seal,Cover Rubber Bearing Seal

Product Description:

Product Name Rear Wheel Oil Seal
Size 40x65x12
Materials NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE
OEM No. Accept throurh drawing or samples
Apply Agricultural Machinery
Feature Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
Hardness 30-90 shores A
Color Brown,Black,White, blue, green,Clear,etc
Size Any size, Customized/standard and nonstandard
Sample Time If in stock, within 3 days after payment
Delivery Time

10-20 days by shipping after final payment
Shipping By Ships
Customized OEM & ODM are welcomed
Packing Plastic bag&carton box or according to your requirements
Certification IATF 16949: 2016, ISO9001:2008

Material feather :

MATERIAL TEMP ADANTAGES LIMITATION

Nitrile Rubbrt

(NBR)

 -40~125℃

■Good oil and fuel resistance

■High tensile strength

■Low swelling in water

■Poor weather and ozine resistance

■Poor resistance against polar lkuids

■Poor resistance against clhydrocarbon

■Poor resistance against aromatic fluids

Fluorinated Rubber

(FKM)

 -20~250℃

■The resistance against oil and fuels is better than other types

■The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons

■Exccllcent hcat resistance

■Exccllcent weather and ozonc resistance

■Exccllcent acid resistance

■Low swelling in water

■Limited cold flexibliity

■Limited tensile and tear strength

■Limited wear resistance

■High compression set in hot water

■Poor resistance to polaric solvents

Polyacrylate Rubber

(ACM)

 -25~150℃

■Good oil and fuels resistance

■Good weater and ozone resistance

■Not usable in contact with water and water solutions

■Limited cold flexibility

■Limited tensile strength and tear resistance

■Poor wear reisistance

■Poor resistance against polar and aromatic and chlorinared hydrocarhons

Silicone Rubber

(VQM)

 -60~225℃ ■Best heat resistance of all rubber types
■Excellent low temp resistance of all rubber types
■Excellent weather and ozone resistance

■Poor tensile and tear strength

■Poor wear resistance

■Sensitive to hydrolysis

■Poor resistance against aromatic oils and oxidized mineral oils

■Poor diffusion resistance

TYPE SIZE TYPE SIZE TYPE SIZE
AXLE 1.000*1.752*0.641 AXLE 3.875*5.690*0.927 AXLE 4.250*6.250*1.375
AXLE 1.063*2.000*0.615 AXLE 3.875*5.691*0.938 AXLE 4.250*6.254*1.250
AXLE 1.750*2.500*0.690/0.743 AXLE 3.875*5.696*0.875 AXLE 4.375*5.748*0.605
AXLE 2.225/2.375*3.125*0.6/0.7 AXLE 3.875*5.696*0.875 AXLE 4.375*5.751*0.945
AXLE 2.250*3.000*0.800 AXLE 3.938*5.505*0.750 AXLE 4.375*5.751*1.016
AXLE 2.250*3.251*0.689 AXLE 3.999*5.747*0.960 AXLE 4.375*5.763*0.930
AXLE 2.250*3.251*0.740 AXLE 4.000*5.126*1.047 AXLE 4.375*5.884*0.825
AXLE 2.500*3.500*0.500 AXLE 4.000*5.375*1.000 AXLE 4.375*5.905*1.000
AXLE 2.750*3.779*0.762 AXLE 4.000*5.625*0.605 AXLE 4.375*6.003*1.047
AXLE 2.875*3.625*0.472 AXLE 4.000*5.626*0.688 AXLE 4.375*6.251*0.605
AXLE 2.875*3.875*0.500 AXLE 4.000*5.626*0.700 AXLE 4.500*5.374*0.905
AXLE 3.437*4.755*0.642/0.720 AXLE 4.000*5.750*0.928 AXLE 4.500*5.750*0.960
AXLE 3.437*4.755*0.699 AXLE 4.000*5.750*1.068 AXLE 4.500*5.876*0.984
AXLE 3.438*4.757*0.700 AXLE 4.000*5.754*1.079 AXLE 4.625*5.999*0.840
AXLE 3.438*4.757*0.859 AXLE 4.000*5.757*0.866 AXLE 4.606*6.311*1.141
AXLE 3.500*4.547*0.900 AXLE 4.000*5.757*0.930 AXLE 4.625*6.001*0.912
AXLE 3.500*4.841*0.919 AXLE 4.000*5.757*0.930 AXLE 4.625*6.001*1.000
AXLE 3.500*4.842*0.903 AXLE 4.125*5.375*0.605 AXLE 4.625*6.006*0.846
AXLE 3.500*4.842*0.904 AXLE 4.250*6.000*0.637 AXLE 4.625*6.622*1.093
AXLE 3.500*4.842*0.925 AXLE 4.250*6.000*0.680 AXLE 4.750*6.250*0.813
AXLE 3.574*4.757*0.548 AXLE 4.250*6.000*0.750 AXLE 4.750*6.308*1.115
AXLE 3.625*4.810*0.921 AXLE 4.250*6.000*0.750 AXLE 4.765*6.251*0.605
AXLE 3.625*4.810*4.823*0.921 AXLE 4.250*6.000*0.766 AXLE 4.765*6.311*1.078
AXLE 3.875*5.126*0.605 AXLE 4.250*6.000*1.000 AXLE 4.766*6.001*1.063
AXLE 3.875*5.129*0.844 AXLE 4.250*6.008*1.142 AXLE 4.765*6.311*1.115
AXLE 3.875*5.376*0.905 AXLE 4.250*6.008*0.974 AXLE 4.766*6.311*1.125
AXLE 3.875*5.500*0.938 AXLE 4.250*6.048*0.680 AXLE 4.767*6.308*1.420
AXLE 3.875*5.685*0.685/0.920 AXLE 4.250*6.250*1.188 AXLE 4.875*5.999*0.625
AXLE 3.875*5.690*0.875 AXLE 4.250*6.250*1.300 AXLE 4.875*6.373*0.921


40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal

40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal

40x65x12 TC Type National Agricultural Machinery Oil Seal Cover Rubber Bearing Seal

FAQ:

Q1: How long is your delivery time?

A: 3-5days after payment received(public holiday excluded).

Q2: How to make payment?
A: We accept multiple payment method like Bank Transfer, Western Union, Money Gram, Credit Card, Paypal ,L/C and so on.

Q3:Who will pay importing duties?
A: Our quotation does not includes importing cost such as duties. So our customer has to pay these fees according to importing policy of their country. If our customer has special requirement for the declared value, you can tell us.

Q4:How about your product quality control?

A:We produce strictly according to the standard production process : qualified material--vulcanization--trimming-second vulcanization--quality inspection.

Q5: What is your advantages?

A:Our products offers excellent quality, reasonable price, good after-sales service & quality assurance.
