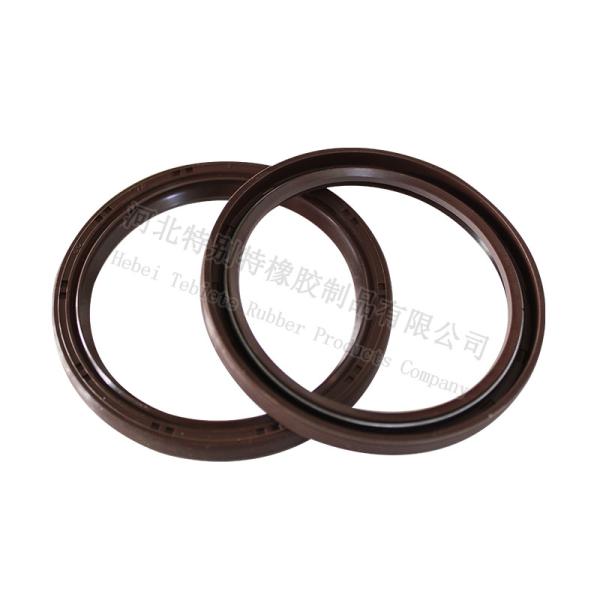

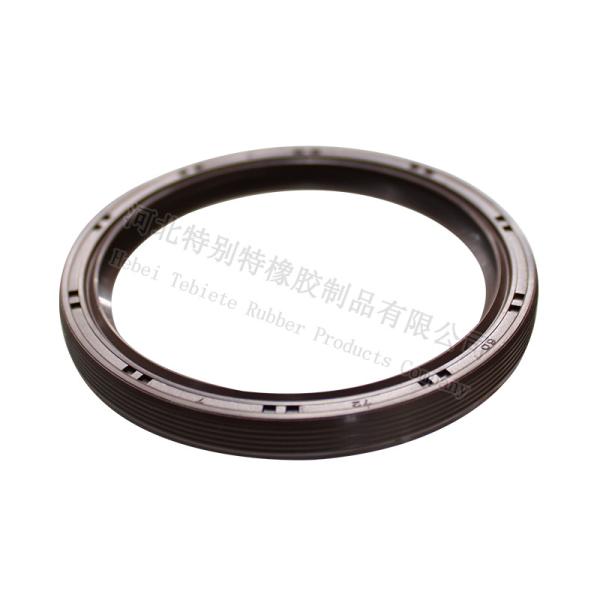

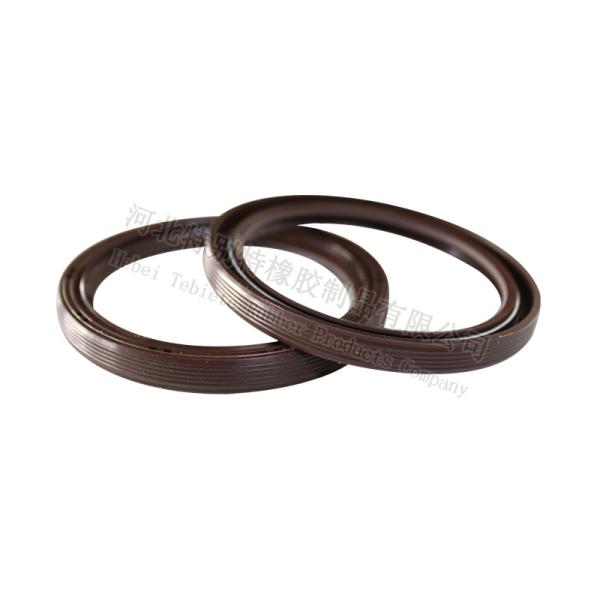

60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck
Specifications
Brand Name :
TE BIE TE/ customized
Model Number :
60x72x7
Certification :
IATF 16949: 2016 , ISO 9001:2008
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10000pcs /day
Delivery Time :
5-40days(accroding to quantity)
Packaging Details :
Plastic Bag+ Box+ Carton Box; 40-200pcs/ Outer Carton
Materia; :
NBR or Customized
Color :
Brown, Black,Blue,Green or depends on requirments
OEM :
Welcome
Sample :
accept
Size :
ID:60mm OD:72mm H:7mm
Hardness :
20-90 shore A (depend on material)
Description

Product Name:

60x72x7 Factory Price TC Type Diver Shaft Oil Seal for DFCV 153 Truck

Product Description:

Product name

Diver Shaft Oil Seal for DFCV 153 Truck

Material

NBR
Size 60x72x7mm

color

black red blue brown or customes request

Size

Customized size/standard size

Hardness

20-90shore A or as your requirements

Certificate

IATF16949:2016 ISO9001:2008

Application

Oil Prevention Sealing;Water Prevention Sealing;Corrosion Prevention Sealing;Gas Prevention Sealing;Leak Prevention Sealing

Port of loading

Tianjin/ Qingdao/Ningbo/Shanghai

Term of payment

PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc.

Packing

Neutral packing or meeting customer's need
Temperature

NBR(-40~120°C),FFKM(-20~320°C)

(-20~200°C),Silicone (-70~220°C)

EPDM(-50~150°C),PU(-40~90°C)
Feature Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
Hardness 30-90 shores A
Sample Time If in stock, within 3 days after payment
Delivery Time

10-20 days by shipping after final payment
Shipping By Ships

Rubber Material's Features:

NBR Excellent resistant to oil, Low temperature resistant,widely used in industrial area
EPDM Excellent resistance to weather and ozone, good resistance to heat, low temperature and chemical
NR High elasticity, good chemical strength
CR Generally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range
SBR Shock resistance,performance well in adhesion and sealing
SILICONE Widest operating temperature range, performance stably in high and low temperature,widely use in food sealing area
VT/FKM Excellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent
HNBR Thermal stability and oxidation resistance
IIR Low permeability rate and good electrical properties

MATERIAL TEMPERATURE ADANTAGES LIMITATION

Nitrile Rubbrt

(NBR)

 -40~125ºC

Good oil and fuel resistance

High tensile strength

Low swelling in water

Poor weather and ozine resistance

Poor resistance against polar lkuids

Poor resistance against clhydrocarbon

Poor resistance against aromatic fluids

Fluorinated Rubber

(FKM)

 -20~250ºC

The resistance against oil and fuels is better than other types

The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons

Exccllcent hcat resistance

Exccllcent weather and ozonc resistance

Exccllcent acid resistance

Low swelling in water

Limited cold flexibliity

Limited tensile and tear strength

Limited wear resistance

High compression set in hot water

Poor resistance to polaric solvents

Polyacrylate Rubber

(ACM)

 -25~150ºC

Good oil and fuels resistance

Good weater and ozone resistance

Not usable in contact with water and water solutions

Limited cold flexibility

Limited tensile strength and tear resistance

Poor wear reisistance

Poor resistance against polar and aromatic and chlorinared hydrocarhons

Silicone Rubber

(VQM)

 -60~225ºC Best heat resistance of all rubber types
Excellent low temp resistance of all rubber types
Excellent weather and ozone resistance

Poor tensile and tear strength

Poor wear resistance

Sensitive to hydrolysis

Poor resistance against aromatic oils and oxidized mineral oils

60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck

60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck

60x72x7 TC Type Diver Shaft Oil Seal For DFCV 153 Truck

FAQ:

Q : When can I get the price?

A : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us by E-mail,so that we will regard your inquiry as the first priority.

Q : How can I get a sample to check your quality?

A :After price confirmation, you can require for samples to check our quality.

Q : Can you do the design for us?

A :Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can manufacture the products as per your requirements.

Q : How long can I expect to get the sample?

A :It will be ready for delivery in 7-10 days. The samples will be sent to you via express and arrive in 3-5 days.
