Black Blue Hydraulic Piston Seals , Double Acting Piston Seal 80*60*35.1mm Size
Black Blue Hydraulic Piston Seals , Double Acting Piston Seal 80*60*35.1mm Size
Black Blue Hydraulic Piston Seals , Double Acting Piston Seal 80*60*35.1mm Size
Black Blue Hydraulic Piston Seals , Double Acting Piston Seal 80*60*35.1mm Size
Specifications
Brand Name :
B+S
Model Number :
DAS 80*60*35.1
MOQ :
10
Price :
negotiations
Payment Terms :
T/T, Western Union,
Supply Ability :
800 PCS / MONTH
Delivery Time :
15 Days After Payment
Packaging Details :
Packaging because of different sizes and qty, we use the plastic bag
Type&Size :
DAS 80*60*35.1
Style: :
Hydraulic
Properties :
High Pressure Resistance, Wear Resistance
Function: :
Double acting
Sample :
Openly Window Shop, Can Provide Sample (payable)
Color :
Black Blue
Material: :
NBR POM TPE
Place Of Origin :
German
Description

Hydraulic DAS piston seals 80*60*35.1 Combined seals for Mechanical Hydraulic


1. The characteristics :

Oil seal edge, elastomer

The sealing lip short and soft with spring

With dustproof lip

Resistance to pressure oil seal, of a whole in the larger diameter used under high pressure

Used for sealing pressure situations



2. Operating conditions

Pressure: ≤40Mpa

Temperature: -35~+110° C

Speed: Maximum reciproing speed

Media: Mineral oil-based hydraulic fluids,

Flame retardant hydraulic fluids

3. Material

Material: Profile seal: NBR

Back-up Ring: Polyester elastomer

Guide rings: POM


4. Sale related product

Boom Cylinder Repair Seal Kit Arm Cylinder Repair Seal Kit Bucket Cylinder Repair Seal kit
Hydraulic pump seals kit Control valve seals kit Travel motor seals kit Swing motor seals kit
Center Joint seal kit Control Levers Seal Kit Track Adjuster Seal kit Pilot gear pump seal kit
and more...



5. DAS SIZE SERIES TABLE

PART NO D A G D1 H
A1 h9 A2 h9 G1+0.2 G2+0.1
-DAS80-62 80.00 62.00 76.00 22.50 3.60 79.00 29.70
-DAS80-60 80.00 60.00 74.15 22.40 6.35 78.30 35.10
-DAS75-59 75.00 59.00 71.00 20.50 3.10 74.00 26.70
-DAS75-55 75.00 55.00 69.20 22.40 6.35 73.30 35.10
-DAS70-58 70.00 58.00 66.00 20.50 4.20 69.40 28.90
-DAS70-54 70.00 54.00 66.00 20.50 3.10 69.00 26.70
-DAS70-50 70.00 50.00 64.20 22.40 6.35 68.30 35.10
-DAS65-50 65.00 50.00 60.40 18.40 6.35 63.50 31.10
-DAS65-49 65.00 49.00 61.00 20.50 3.10 64.00 26.70
-DAS63-51 63.00 51.00 59.00 20.50 4.20 62.40 28.90
-DAS63-47/1 63.00 47.00 59.00 20.50 3.10 62.00 26.70
-DAS63-47/2 63.00 47.00 58.40 19.40 6.35 61.50 32.10
-DAS63-47 63.00 47.00 58.40 18.40 6.35 61.50 31.10
-DAS60-48 60.00 48.00 56.00 20.50 4.20 59.40 28.90
-DAS60-44/1 60.00 44.00 56.00 20.50 3.10 59.00 26.70
-DAS60-44 60.00 44.00 55.40 18.40 6.35 58.50 31.10
-DAS56-40 56.00 40.00 52.00 20.50 3.10 55.00 26.70
-DAS55-39/1 55.00 39.00 51.00 20.50 3.10 54.00 26.70
-DAS55-39 55.00 39.00 50.36 18.40 6.35 53.50 31.10
-DAS50-38 50.00 38.00 46.00 20.50 4.20 49.40 28.90
-DAS50-34/1 50.00 34.00 46.00 20.50 3.10 49.00 26.70
-DAS50-34 50.00 34.00 45.40 18.40 6.35 48.50 31.10
-DAS45-35 45.00 35.00 40.40 16.40 6.35 43.50 29.10
-DAS45-31 45.00 31.00 41.00 15.50 2.60 44.00 20.70
-DAS45-29 45.00 29.00 40.40 18.40 6.35 43.70 31.10
-DAS42-28 42.00 28.00 38.00 15.50 2.60 41.00 20.70
-DAS40-32 40.00 32.00 36.00 15.50 3.20 39.40 21.90
-DAS40-30 40.00 30.00 35.40 16.40 6.35 38.50 29.10
-DAS40-30/2 40.00 30.00 37.00 12.50 4.00 39.00 20.50
-DAS40-30/1 40.00 30.00 36.00 12.50 4.00 38.00 20.50

PART NO D A G D1 H
A1 h9 A2 h9 G1+0.2 G2+0.1
-DAS40-26 40.00 26.00 36.00 15.50 2.60 39.00 20.70
-DAS40-24 40.00 24.00 35.40 18.40 6.35 38.50 31.10
-DAS35-25 35.00 25.00 31.40 16.40 6.35 33.50 29.10
-DAS35-25/1 35.00 25.00 31.00 15.50 2.60 34.00 20.70
-DAS32-24 32.00 24.00 28.00 15.50 3.20 31.40 21.90
-DAS32-22 32.00 22.00 28.50 16.40 6.35 30.50 29.10
-DAS32-22/1 32.00 22.00 28.00 15.50 2.60 31.00 20.70
-DAS30-21 30.00 21.00 27.00 13.50 2.10 29.00 17.70
-DAS30-17 30.00 17.00 26.50 15.50 6.30 29.00 28.10
-DAS28-19 28.00 19.00 25.00 13.50 2.10 27.00 17.70
-DAS25-16 25.00 16.00 22.00 13.50 2.10 24.00 17.70
-DAS25-15 25.00 15.00 21.45 16.40 6.35 23.50 29.10
-DAS25-15/2 25.00 15.00 22.00 12.50 4.00 24.00 20.50
-DAS25-15/1 25.00 15.00 21.00 12.00 4.00 23.00 20.00
-DAS22-13 22.00 13.00 19.00 13.50 2.10 21.00 17.70
-DAS20-11 20.00 11.00 17.00 13.50 2.10 19.00 17.70

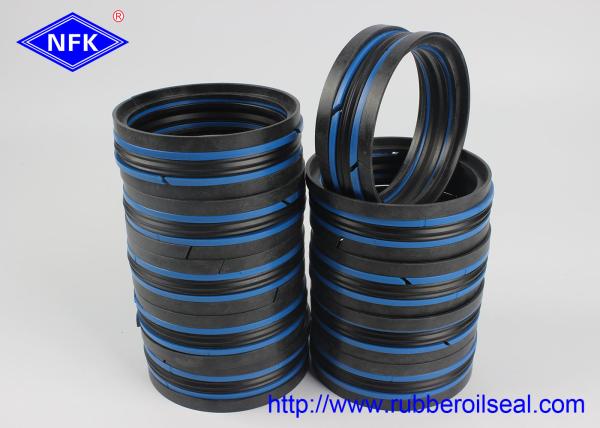

6. picture viewing


Black Blue Hydraulic Piston Seals , Double Acting Piston Seal 80*60*35.1mm Size

7. FAQ

Q1: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.

A. In order to give you fast and accurate pricing information, we need some details about the machine

Q2: To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so on.


Q3: How long is your delivery time?

A: Generally it takes 5-7 days if we have stock.

Q4: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.

A. In order to give you fast and accurate pricing information, we need some details about the machine engine/appliion and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.

Q5: How to guarantee your after sales service?
1. Strict inspection during production
2. Recheck the products before shipment to ensure our packaging in good condition
3. Track and receive feedback from our customer
Q6: Could you supply solutions to us?

A: Sure we can.

Q6: Do you have a minimum order requirement?

A: Small trial order is acceptable.
