Specifications
Brand Name :
TECNOLAN
Model Number :
196118 ,196133 TDE 50*30*25.4，TDE 50*34*18.4
Place of Origin :
Italy
MOQ :
5
Price :
Negotiations
Payment Terms :
TT, Western Union, Cash, Bank, PayPal.HSBC,CITY BANK.
Supply Ability :
6000 PCS / MONTH
Delivery Time :
1-2 workdays,Big order for 10-15 Days After Payment
Packaging Details :
The original factory packaging
Type&Size :
Combination seal TDE 50*30*25.4，TDE 50*34*18.4
Style :
PDE PDP PDH TDE TGU TPL TPM TPS TTD TTE TRU TTQ TTR TTU TUT
Properties :
High Pressure Resistance, Wear Resistance
Scope of appliion :
Piston, cylinder
Standard Or Nonstandard :
Standard
Nature :
Wear resistance, high pressure resistance
Temperature (°C) :
NBR -30℃~+110℃; FKM :-20℃~+200℃
Machine Model :
Ship, Excavator, Pump Hydraulic Machine Rotary Shaft, rotary drilling rig, Hydraulic Loader
Pressure / Speed :
50(MPa) /0.5m/s
Sample :
Openly Window Shop, Can Provide Sample (payable)
Main sales area :
Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East
Way By Deliv: :
Shipping By Sea,air Express,DHL ,EMS, FADEX,TNT.
Description

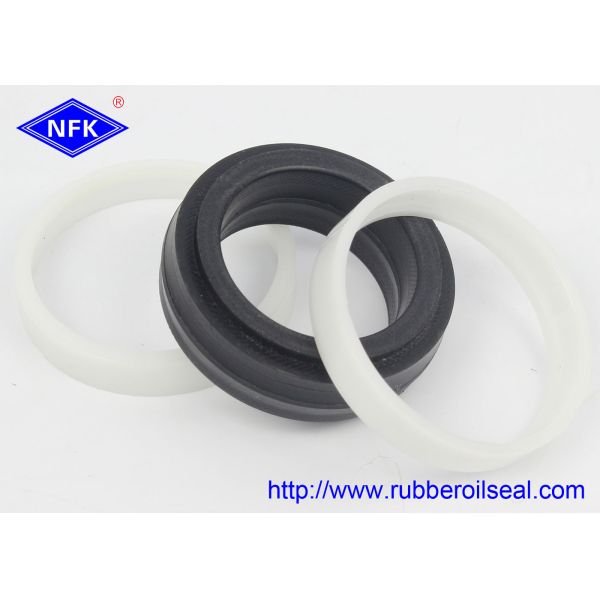

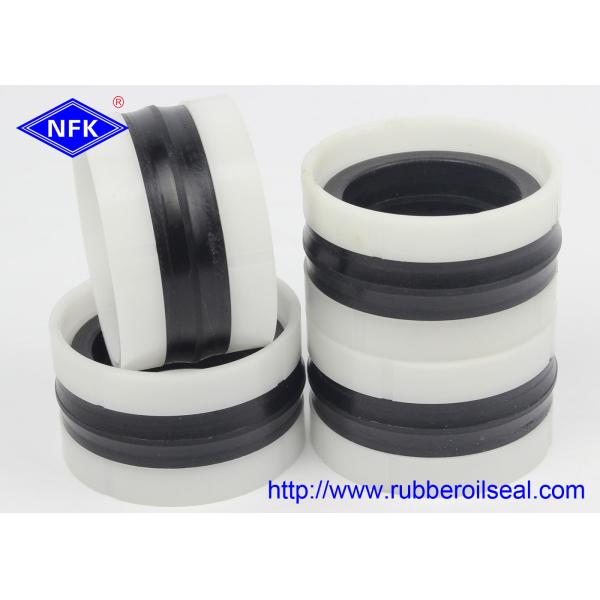

High pressure combination seal 196118 ,196133 TDE50 piston seals for hydraulic cylinders tecnotex rubberseals


1. Operating conditions


Pressure / Speed : 50(MPa) /0.5m/s

Temperature: NBR -30℃~+110℃; FKM :-20℃~ 200 ℃

Nature: Wear resistance, high pressure resistance

Speed: Maximum reciproing speed

Types : Combination seal


Media: Mineral oil-based hydraulic fluids,

Flame retardant hydraulic fluids

Main sales area :Africa, South America, Southeast Asia, North America, Northeast Asia, Middle East


2. Material

Material: Profile seal: NBR

Back-up Ring: Polyester elastomer

Guide rings: POM

Standard 196118 196133 Tecnotex rubberseals TDE 50 Hydraulic Piston Seals


3....About us

Our Company focus for more than twenty years of construction machinery industry market
In addition to excavators, breakers, and other equipment and machinery repair kits:

Excavator repair kit
Hydraulic breaker repair kit
Rotary hydraulic drill repair kit
Ship hydraulic pump repair kit
Ship motor repair kit
Concrete pump truck repair kit
Crane Seal Repair Kit
Port equipment repair kit
Aerial work machinery repair kit
Bulldozer repair kit
Forklift repair kit .........

4....Our inventory series products includes of brand oil seal :

Pump truck accessories Italy TECNOLAN TDE50 piston combination seal

Product egory

Piston seal: TDE TPM TPL PDE PDP TTU TTD TTE TRU SPGW SPGO SPG SPGA SPF NCF ODI OSI OUIS OHM OKH DAS OK SELA OUY D-8

Rod Seal: TSE TLI TTH TTI TTS IDI IUH ISI IUIS D-2 D-3 D-6

U-seal: UPI UPH USH USI V99F V96H UN

Buffer seal: HBTS HBY HBTTS D-14

Wiper seal: DKB DKBI DKBI3 DKBZ DKI, DWI DKH DWIR DSI LBI LBH VAY DH ME-2,ME-8

Wear ring: WR KZT RYT

Rotating seal: ROI D-14 SPN

Spare ring: N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3

O-ring: Oring kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9 series M 2.4 series
M 3.0 series M4.0

Common pressure oil seals: SC, SB, TC, TB, VC, VB, DCY, TC4Y, TC4, TB4, DC, DB, VR, MG, OKC3,HSCL,HTC ,HTC9L,HTGL,KC
High pressure oil seal: TCV, TCN TCZ ,TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3...

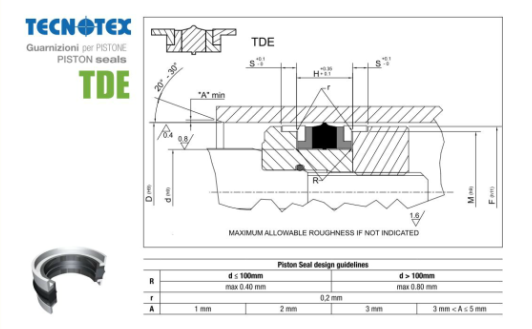

5. TDE SIZE SERIES TABLE

NS RIF. ALTRI RIF. DIMENSIONI SEDI / HOUSING DIMENSIONS
Our ref. Other references D d H
TDE 1000 098047 25.00 12.00 12.40
TDE 1001 118066 30.00 17.00 15.40
TDE 1002 137086 35.00 22.00 15.40
TDE 1003 157094 40.00 24.00 18.40
TDE 1004 177114 45.00 29.00 18.40
TDE 1004/1 196118 196133 50.00 30.00 25.40
TDE 1005 196133 50.00 34.00 18.40
TDE 1006 216153 55.00 39.00 18.40
TDE 1007 236173/1 60.00 44.00 18.50
TDE 1007/1 236173/2 60.00 44.00 20.00
TDE 1008 248185 63.00 47.00 19.40
TDE 1009 255196 65.00 50.00 18.40
TDE 1010 275196 70.00 50.00 22.40
TDE 1011 295216 75.00 55.00 22.40
TDE 1012 295220 75.00 56.00 24.40
TDE 1012/1 300225 76.20 57.15 22.40
TDE 1013 314236 80.00 60.00 22.40
TDE 1014 326248 83.00 63.00 22.40
TDE 1015 334255 85.00 65.00 22.40
TDE 1016 354275 90.00 70.00 22.40
TDE 1016/1 354275/1 90.00 70.00 25.40
TDE 1017 374295 95.00 75.00 22.40
TDE 1018 393295 100.00 75.00 22.40
TDE 1019 393314 100.00 80.00 25.40
TDE 1019/1 400325 101.60 82.55 24.21
TDE 1020 413314 105.00 80.00 22.40
TDE 1021 433334/1 110.00 85.00 22.40
TDE 1022 433334 110.00 85.00 25.40
TDE 1023 433354 110.00 90.00 25.40
TDE 1023/1 450350 114.30 88.90 32.15
TDE 1024 452354 115.00 90.00 22.40
TDE 1025 472374 120.00 95.00 22.40
TDE 1026 472393 120.00 100.00 25.40
TDE 1027 492393 125.00 100.00 25.40
TDE 1028 492393/1 125.00 100.00 32.40
TDE 1029 492413 125.00 105.00 25.40
TDE 1029/1 500400 127.00 101.60 32.15
TDE 1030 511413 130.00 105.00 25.40
TDE 1031 531433 135.00 110.00 25.40
TDE 1032 551452 140.00 115.00 25.40
TDE 1033 551472 140.00 120.00 25.40
TDE 1034 570472 145.00 120.00 25.40
TDE 1035 590472 150.00 120.00 38.40
TDE 1036 590492 150.00 125.00 25.40
TDE 1037 610511 155.00 130.00 25.40
TDE 1038 629511 160.00 130.00 25.40
TDE 1038/1 638511 162.00 130.00 25.40
TDE 1039 669551 170.00 140.00 25.40
TDE 1039/1 700600 177.80 152.40 32.15
TDE 1040 708629 180.00 160.00 31.40
TDE 1041 708590 180.00 150.00 35.40
TDE 1042 748629 190.00 160.00 35.40
TDE 1043 787669 200.00 170.00 35.40
TDE 1044 826708 210.00 180.00 32.40
TDE 1045 866748 220.00 190.00 35.40
TDE 1046 984866 250.00 220.00 35.40



6. Picture viewing

Standard 196118 196133 Tecnotex rubberseals TDE 50 Hydraulic Piston SealsStandard 196118 196133 Tecnotex rubberseals TDE 50 Hydraulic Piston SealsStandard 196118 196133 Tecnotex rubberseals TDE 50 Hydraulic Piston Seals


Can you call us to discuss your questions when you have time? Please call 86 13924029131 whatsapp(wechat ).
We believe you will find some oilseals & repair kits in our product . We are confident that our products can meet your needs in various ways.
Please let us know if you want to deal with Solve the problem of seals further. look forward to hearing from you.


7. FAQ

Q1: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.

A. In order to give you fast and accurate pricing information, we need some details about the machine

Q2:To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so on.


Q3: How long is your delivery time?

A: Generally it takes 5-7 days if we have stock.

Q4: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.

A. In order to give you fast and accurate pricing information, we need some details about the machine engine/appliion and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.

Q5: How to guarantee your after sales service?
1. Strict inspection during production
2. Recheck the products before shipment to ensure our packaging in good condition
3. Track and receive feedback from our customer
Q6: Could you supply solutions to us?

A: Sure we can.

Q6: Do you have a minimum order requirement?

A: Small trial order is acceptable.


If there is any need ,please feel free to write to ask ,We will send our picture book for you if you are interested in our alogues. Thanks!
