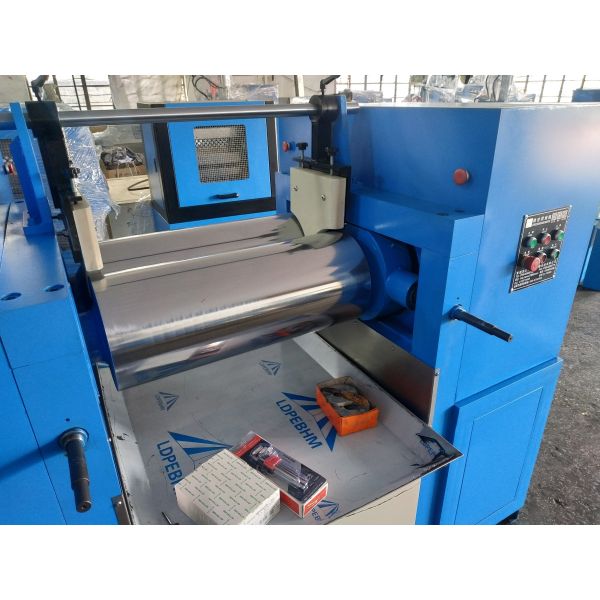

Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill
Specifications
Brand Name :
ZL
Model Number :
ZL-3018
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
Small Rubber Two Roll Open Mixing Mill Silicone Mixing Mill Lab Rubber Mixing Mill is packaged within wooden case.
Length of roller face :
350mm
Mixing Capacity :
0.002-2.8kg
Roll Hardness :
HRC 50 ~ 60
Safety device :
It have 6 safety buttons and safety guard is option
Temperature Accuracy :
± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Power :
380V 3 phase 50-60hz
Driving Power :
1kw
Color :
Red (can be customized）
Description

Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill

Application:

It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.

ZL-3018 Two roll mill.pdf

Introduction:

Advantages: simple structure, easy operation, strong processing adaptability, less investment, etc.

Applicable products: plasticizing and mixing, coloring, tableting, and supplying glue of various rubber raw materials, silica gel, and plastic products.

Applicable places: small and medium-sized factories and the production of materials for special purposes in small batches.

Technical parameters:

Roll Hardness HRC 50 ~ 60
Temperature Accuracy ± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Model ZL-3018-76 ZL-3018-120 Zl-3018-160 ZL-3018-200 Zl-3018-230 Zl-3018-300 ZL-3018-400
Diameter of roll mm 76 120 160 200 230 300 400
Length of roller face mm 300 350 350 500 650 650 900
Mixing Capacity kg 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed rpm 19 19 19 19 19 19 19
Friction ratio 1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range mm 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power KW 1 1.5 2.2 7.5 11 30 37
Heating Mode Electricity heating , Oil Heating ( option)
Cooling Mode Water Cooling ( option)
Roll Temperature Room temperature -- 300℃
Safety device It have 6 safety buttons and safety guard is option
Machine weight kg 160 460 660 860 1960 2960 3800
Overall dimension mm 1100x400x1180 1100x550x1380 1200x650x1380 2200x750x1380 2200x950x1580 2600x950x1580

5295x1789

x170
Power 380V 3 phase 50-60hz

Lab Electrical Heating Masterbatch Rubber Mixing Process Open Two Roll Mixing Mill

Advantage Service:

1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.

2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.

3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.

4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.

5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.

Technical Support:

1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;

2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.
