Face Mask Automatic Making Machine

Equipment Introduction:

This machine is mainly used for the automatic forming of flat masks: the entire roll of fabric is driven by rollers after unwinding, the fabric is unwound by automatic folding, hemming, and the bridge of the nose. It is welded to the seal by ultrasonic welding, and then passes through the ultrasonic side seal, and is cut and formed by a cutter. The masks are conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding. After the mask is made, it is transported to the flat belt line for collection.

Equipment capacity:

One-to-two line mode: 80 ～ 100 pcs / min (4800 ～ 6000 pcs / hour)

Mask specifications:

Dimensions: 17.5 X9.5; 1-4 layers;

Installation and configuration requirements:

Features and benefits:

1. Automatic counting can effectively control production efficiency and production progress.

2. The frame is made of aluminum alloy and stainless steel, which is light and beautiful and does not rust.

3. Variable frequency control, which can adjust the equipment operating speed according to actual needs.

4. Pull the barrel to feed, and the positioning is more accurate, which can minimize the width of raw materials and save costs.

5. Uniform length and size control of the finished product with a deviation of ± 1mm can effectively control the length of the finished product.

6. The equipment has a high degree of automation and low requirements for operating staff, and only needs to discharge and arrange the finished product.

7, strap medical mask machine mining machine ultrasonic system, transducer, stable performance and easy operation.

The automatic ultrasonic welding wheel is made of imported high-quality steel DC53, which prolongs the life of the mold and is durable and durable.

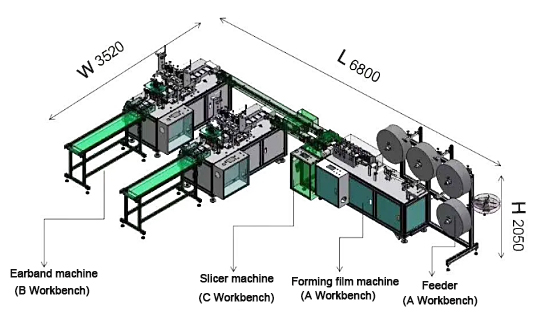

Equipment structure diagram (this picture is for reference only, the equipment is subject to the actual product)):
