5KN Computer Servo Tensile Strength Testing Machine For Plastics
5KN Computer Servo Tensile Strength Testing Machine For Plastics
5KN Computer Servo Tensile Strength Testing Machine For Plastics
5KN Computer Servo Tensile Strength Testing Machine For Plastics
5KN Computer Servo Tensile Strength Testing Machine For Plastics
5KN Computer Servo Tensile Strength Testing Machine For Plastics
5KN Computer Servo Tensile Strength Testing Machine For Plastics
5KN Computer Servo Tensile Strength Testing Machine For Plastics
Specifications
Brand Name :
Zhongli
Model Number :
ZL-8002
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
15 days after receiving the deposite
Packaging Details :
5KN Tensile Bending Compression Computer Servo Testing Machine is packaged within wooden case.
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
ZL
Model Number: :
ZL-8002
Power: :
Electronic
Usage: :
Strength Testing Machine
Max load: :
100-5000kg
tester resolution: :
Max load 1/200000
Effective tensile stroke: :
800mm
Effective testing: :
400mm
Testing speed: :
From 0.001 to 500mm/min
Machine size: :
1200* 530* 1800mm
Inside space: :
200 *300 *500mm
weight: :
300KG
Description

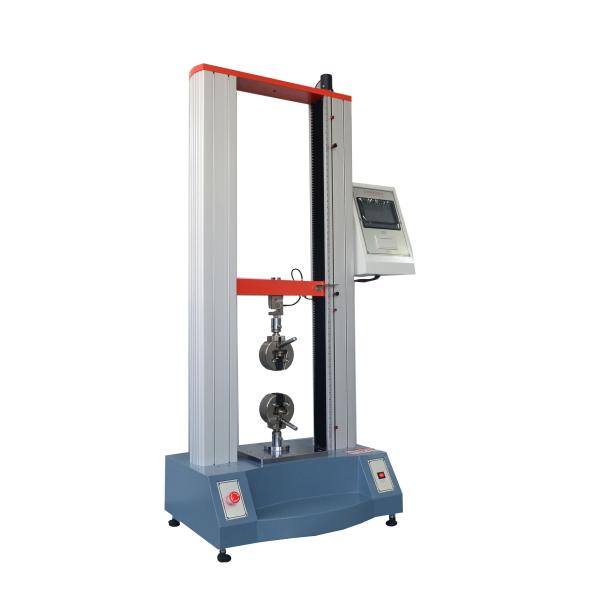

5KN Tensile Bending Compression Computer Servo Testing Machine

Equipment Summary:

ZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine​ is a company designed to aluminum alloy as the main machine, it is not only small, widely used ,less space, elegant appearance, and with rolled base station, makes it all very convenient. In particular, it suitable for production line control of product quality testing equipment. This series is mainly used in the test load is less than 5000KG non-metallic and metallic materials within the test.

ZL-8002B deskop computer type servo tensile testin...

Main Features:

ZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine​ is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.

Meet the Criteria:


"GB/T16491-1996 electronic universal testing machine"

Technical Parameter:

Model ZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine​
Max load 100,200,500,1000,2000,5000kg (optional)
Accurate grade 1 grade /0.5 grade
Effective measuring range

Force from 0.2% to 100% (1grade) / from 0.4%

to 100% (0.5 grade)
Measuring accuracy Tolerance ±1% / tolerance ±0.5%
Tester resolution Max load 1/200000, and constant resolution
Load sensor

Basic configuration sensor max load: from four sensors to

choose one
Effective tensile stroke 800mm(can be widened according to customers requirement )
Effective testing width 400mm(can be widened according to customers requirement )
Testing speed From 0.001 to 500mm/min
Accuracy of displacement measurement Tolerance: ±0.5% / tolerance: ±0.2%
safety Electronic-limit protection
Testing platform moving device Fast /slow ( two speeds to control), can jog
Return Back

Manual or automatic operation, After the test, the moving

iron return to initial position with the highest speed by manual

or automatic operation
Overload protection Overload 10%,automatic protection
fixture A set of tensile fixture
Machine size 1200*530*1800mm(L*W*H)
Power system Panasonic AC Servo Motor + Driver + high-precision ball screw
Temperature range From normal temperature to 200 degree
Temperature display Digital display
Inside space 200*300*500mm (W*L*H )
Cooling system Compression from France
Power supply 220V50HZ or according to the requirement
Power

0.75KW ( depending on different demand of force, using

different motor)
weight 300 KG
Units

KG,N,LB, TON can be exchanged
