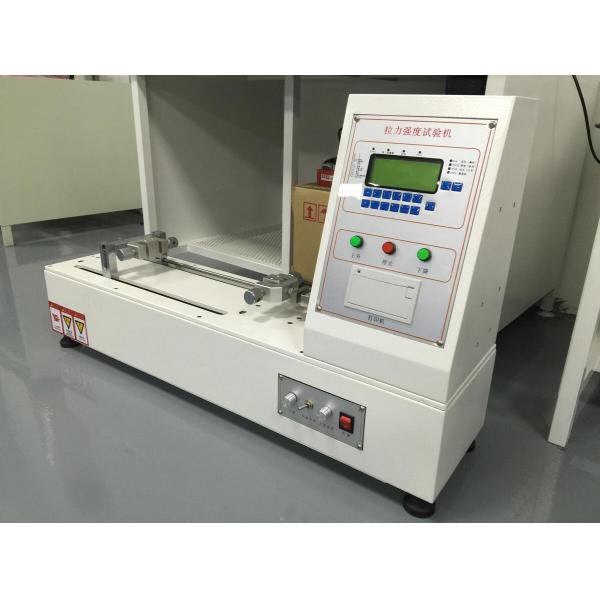

ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine
ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine
ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine
ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine
ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine
ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine
Specifications
Brand Name :
ZL
Model Number :
ZL-8005
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine is packaged within wooden case.
Product name :
Computer Type Servo Horizontal Universal Testing Machine
Max. Force :
500N,1KN,2KN,5KN optional
Accuracy :
1 grade
Force range :
1% ~ 100% FS
Force accuracy :
±1% of reading
Test speed :
50 ~ 500mm / min, can be adjusted
Effective test space :
φ140mm
Key words :
Servo Horizontal Tensile
Description

ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine

Summary:

Applicable to rubber and plastics, paper products, color printing packaging, adhesive tape, luggage handbags, textiles, pharmaceuticals, cosmetic, food, wire and electronics industries. Can test a variety of materials and finished products, the physical properties of semi-finished products, buy a variety of fixtures can do tensile, compression, holding, holding pressure, bending, tearing, peeling, adhesion, shear and other tests.

This machine is a new design and development of large and medium-sized computer-based pull (pressure) force testing machine. The company completely changed the traditional material testing machine machine heavy, complex operation, the performance of a single shortcomings, the structure of the use of high-level paint processing of aluminum extrusion plate built-in high-precision, low resistance, gapless screw and guide column; monitoring and control system data acquisition And the operation speed is high, the test result can be printed out by the liquid crystal display or by the printer. Product performance is stable and reliable, high precision measurement, easy to understand.

Parameter:

Model ZL-8005 Computer Type Servo Hydraulic Horizontal Universal Testing Machine
Max. Force 500N,1KN,2KN,5KN optional
Accuracy 1 grade
Force range 1% ~ 100% FS
Force accuracy ±1% of reading
Deformation indication accuracy better than ± 1.0%
Test speed 50 ~ 500mm / min, can be adjusted
Test maximum stroke up to 500mm without fixture
Effective test space φ140mm
Force unit switching kgf, gf, n, kN, Ibf
Stress unit switching MPa, kPa, kgf / cm2, Ibf / in2
Machine working table size 30 × 26 × 100cm
Machine weight: about 75kg
Power supply AC220V, 50 / 60Hz, 10A or specified

ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine
