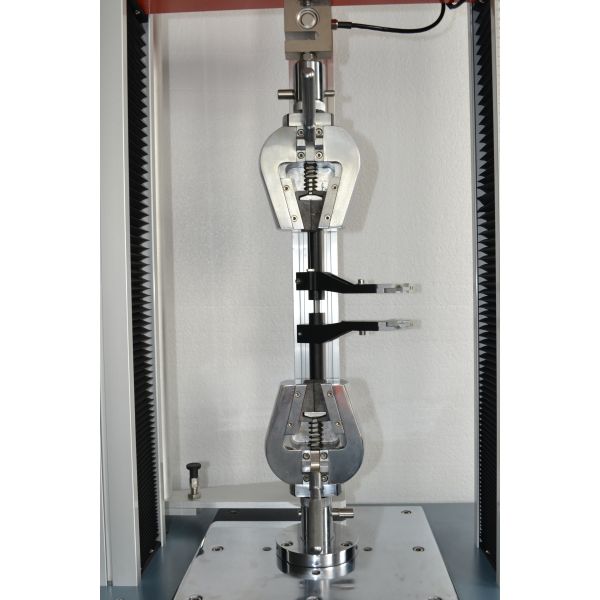

GB / T16491 Simple Type Desktop Digital Tensile Testing Machine 20KN

Machine introduction:

ZL-8002C Desktop digital tensile testing machine is simple type tensile testing machine,simple structure, easy to operate,can be placed on the worktable to testing. Using the electronic control system, governor control speed regulating motor rotation, and then slow down by variable speed mechanical construction to drive T type lead screw Load sensor up and down, to complete specimen tensile or compression test. Force out put by sensor, feedback to display, test speed real-time display.

Especially suitable as production line control product quality testing instruments. This testing machine mainly suitable for test load is less than 2000KG non-metal and metal materials testing.

Main function:

ZL-8002C Desktop digital tensile testing machine 5...

This machine is applied to test all material in tension, compression, bending, shear, peel (90 degrees and 180 degrees), tear or two extended (need to add extensometer) and others, the material such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials, it can judge the product quality from the test.

Main features:

1. The appearance of good design. For many years, our company have been very much pay attention to the appearance of the products,developed many products can be comparable to those of foreign models,surface is aluminum and electrostatic spray figure.

2. Digit Led can identify tension or stress, LCD interface clear, easy to read.

3. Units:N-K GF- LBF optional and can be automatically swap.

4. LCD Liquid crystal display with backlighting, Can be used in the environment of the insufficient light.

5. Single determination, can read tensile and press peak value, and can be manually reset.

6. With the function of limit and overload in downtime.

7. Contain thermal printers, can automatically output test results.

8. Can store 10 test reference points automatically calculate the average, automatic fetching max force,fracture strength value.

Corresponding standard:

Applicable industry:

It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.

Technical parameters:
