Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Specifications
Brand Name :
ZL
Model Number :
ZL-8006A
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
Computer Servo Type Universal Testing Machine Load Cell Tensile Testing Machine is packaged within wooden case.
Product name :
Computer Servo Type Universal Testing Machine Load Cell Tensile Testing Machine
Maximum load :
10 Ton
Tester resolution :
Max load 1/200000，constant the resolution
Range of testing speed :
0.001～500mm/min
Fixture :
A set of tensile fixture
Accurate grade :
1 grade / 0.5 grade
Effective tensile stroke :
800mm
Key words :
Compression Bending Shear Peel
Description

Computer Servo Type Universal Testing Machine Load Cell Tensile Testing Machine

Tensile Testing Machine.pdf

Equipment Overview:

ZL-8006A Computerized Servo Universal Material Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has high precision in the measurement and control of load and displacement. And sensitivity, it can also carry out automatic control test of constant velocity loading and constant velocity displacement. The operation is simple and convenient, and it is especially suitable as a testing instrument for controlling product quality on the production line. This series of models is mainly suitable for non-metallic and metallic material tests with a test load of less than 50kN.

The Main Function:

It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, optical fiber cable, safety belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper material, profile, spring steel, Bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, tension, compression, bending, shearing, peeling, tearing, two-point extension (an extensometer is required), etc. Various tests.

Technical Parameters:

Model ZL-8006A
Maximum Load 10000KG, 20000KG within the self selection
Accuracy Class Level 0.5
Effective Force Range 0.4%～100% (Level 0.5)

Force

Measurement Accuracy

 Within ±1% of indicated value/Within ±0.5% of indicated value

Testing Machine

Resolution

 The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process
Load Cell

Basic configuration: one tension and pressure sensor (maximum load)

Extended configuration: multiple sensors can be added
Deformation Measurement System (Optional According To Requirements)

Extended Configuration: large deformation: minimum gauge

distance 10mm, Deformation Range: 800mm

Extended Configuration: small deformation: gauge length 25mm, 50mm, 100mm; Deformation Range: 5mm, 10mm, 25mm

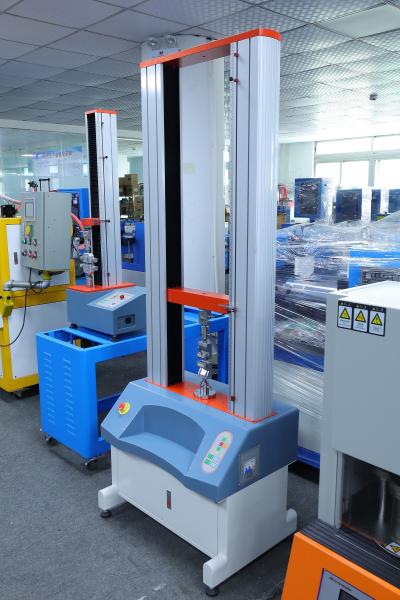

Machine Picture:
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
Load Cell Tensile Testing Machine Computer Servo Type Universal Testing Machine
