ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
Specifications
Brand Name :
ZL
Model Number :
ZL-3030
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 set per month
Delivery Time :
7-10 days
Packaging Details :
Packaged in wooden case （fumigation free）
Name :
ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
Burner :
Φ9.5mm±0.3mm long about 100mm Bunsen burner
Test Inclination :
The Bunsen burner is 90°
Flame Height :
Adjustable from 20mm±2mm to 100mm±2mm
Flame Application Time :
0-999.9s±0.1s adjustable (generally choose 15s)
Combustion Gas :
Liquefied petroleum gas or coal gas
Temperature Range :
0~200°C
Test Process :
Manual control of the test program
Standard :
ISO379 ASTM D5132
Description

ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials

◆The combustion test of automotive interior materials is mainly a simulated combustion performance safety test item stipulated in the national standard GB8410-2006 and the American standard FMVSS 571.302.

◆The combustion test of automotive interior materials is to use a Bunsen burner of specified size and a specific gas source (liquefied petroleum gas or coal gas), and apply flames to horizontal automobile interior materials according to a certain flame height and a certain flame angle. Evaluate its flammability and fire hazard by using the ignition time, duration and burning length of the test product.

◆The combustion tester for automotive interior materials is mainly for qualitative evaluation of the flammability of automotive interior materials. It is suitable for the research, production and quality inspection departments of various types of automotive interior material manufacturers and their material components, and also suitable for insulation materials, engineering plastics or other solid combustible materials industries.

●Technical Parameters:

Burner Φ9.5mm±0.3mm long about 100mm Bunsen burner
Test Inclination

The Bunsen burner is 90° vertically facing the

horizontally placed sample and burning
Flame Height Adjustable from 20mm±2mm to 100mm±2mm (generally adjusted to 38mm)
Flame Application Time 0-999.9s±0.1s adjustable (generally choose 15s)
Combustion Gas Liquefied petroleum gas or coal gas
Temperature Range 0~200°C (displays the internal temperature of the studio under the test state)
Test Process Manual control of the test program
Reference Standard GB8410-2006, FMVSS 571.302
Studio Volume

385mm x 204mm x 360mm

(Wide*Deep*High About 0.03m³)
External Dimensions of the Equipment 550mm wide x 210mm deep x 550mm high

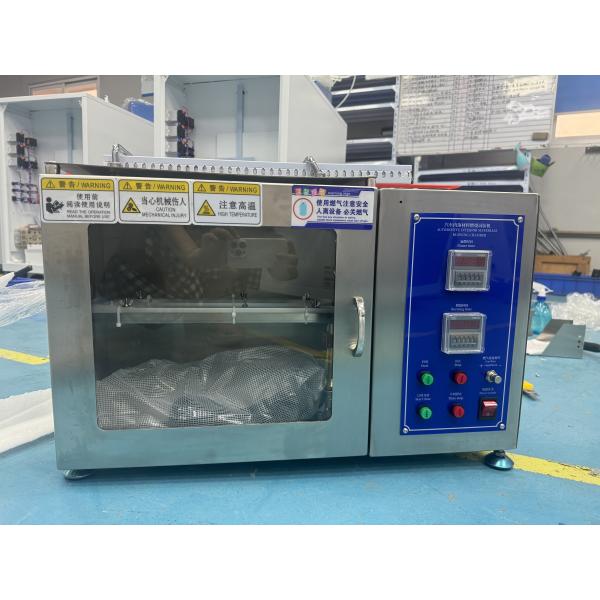

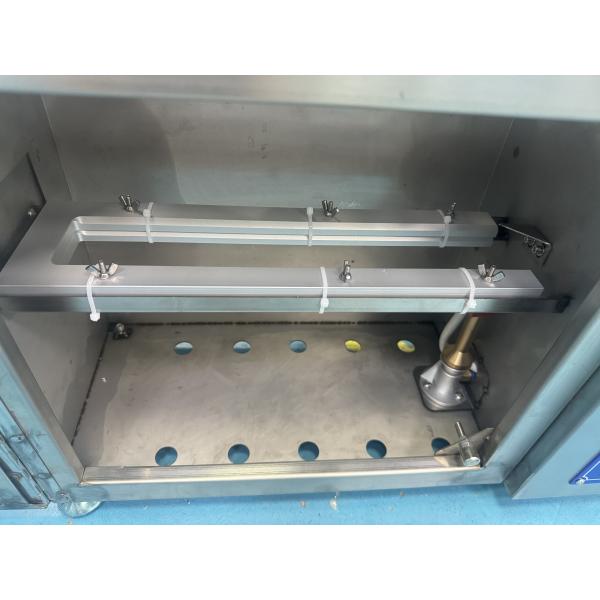

Machine Picture:

ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials

ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials
