Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Air Cooled Twin Screw Laboratory Extrusion Pelletizer
Specifications
Brand Name :
ZL
Model Number :
ZL-3017D
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/P, D/A
Supply Ability :
30 set per month
Delivery Time :
15-20 days
Packaging Details :
Air-Cooled Twin Screw Laboratory Extrusion Pelletizer will be packaged in wooden case.
Product name :
Air-Cooled Twin Screw Laboratory Extrusion Pelletizer
Model :
ZL-3017D
Screw diameter :
Taper 16*2pcs
Designed output :
0.1-3KG/h
Extruder size :
0.7*0.2*0.5m
Weight :
50kg
Extrusion center height :
300mm
Motor power :
750W
Warranty period :
1 year
Description

Air-Cooled Twin Screw Laboratory Extrusion Pelletizer

Rubber Test Machine:

I. Equipment overview:

Product performance of laboratory small twin-screw extruder:

*Professionally manufactured screw and barrel with high processing precision and quality assurance.

* Brand motor drive, screw speed control is stable and reliable.

* Adjustable particle size and thickness of materials in the screw to fully get plasticized and mixed.

Applications of laboratory small twin-screw extruder:

* Material melting, plasticizing extrusion

* Optimization of extrusion process parameters

* Organization of small-scale experimental lines for film, sheet, pipe, pelletizing, etc.

II. Equipment parameters:

Model ZL-3017D
Screw diameter Taper 16*2pcs
Designed output 0.1-3KG/h
Extruder size 0.7*0.2*0.5m
Weight 50kg
Extrusion center height 300mm
Extrusion direction Right → out to the left
Motor power 750w
Voltage 220V 50HZ [three-plug plug]
LD 16:1
Heating temperature Normal temperature -350℃/450℃ [quotation subject]
Warming time Normal temperature -350 degrees/30min
Temperature control accuracy ±1℃
Temperature fluctuation ±2.5℃
Cooling method Three-zone air-cooled active zone cooling
Applicable raw materials PP,PC, PVCABS, PE, PA6, PS, PEI, PIMMA, POM, TPU, PTE, PEEK, etc.
Feeding area with silent cooling device [air-cooled or water-cooled optional offer subject to].
Screw barrel material 38Crmola,Nitrided treatment
Space occupied

Length 1.5m*Width 500mm*Height 500mm

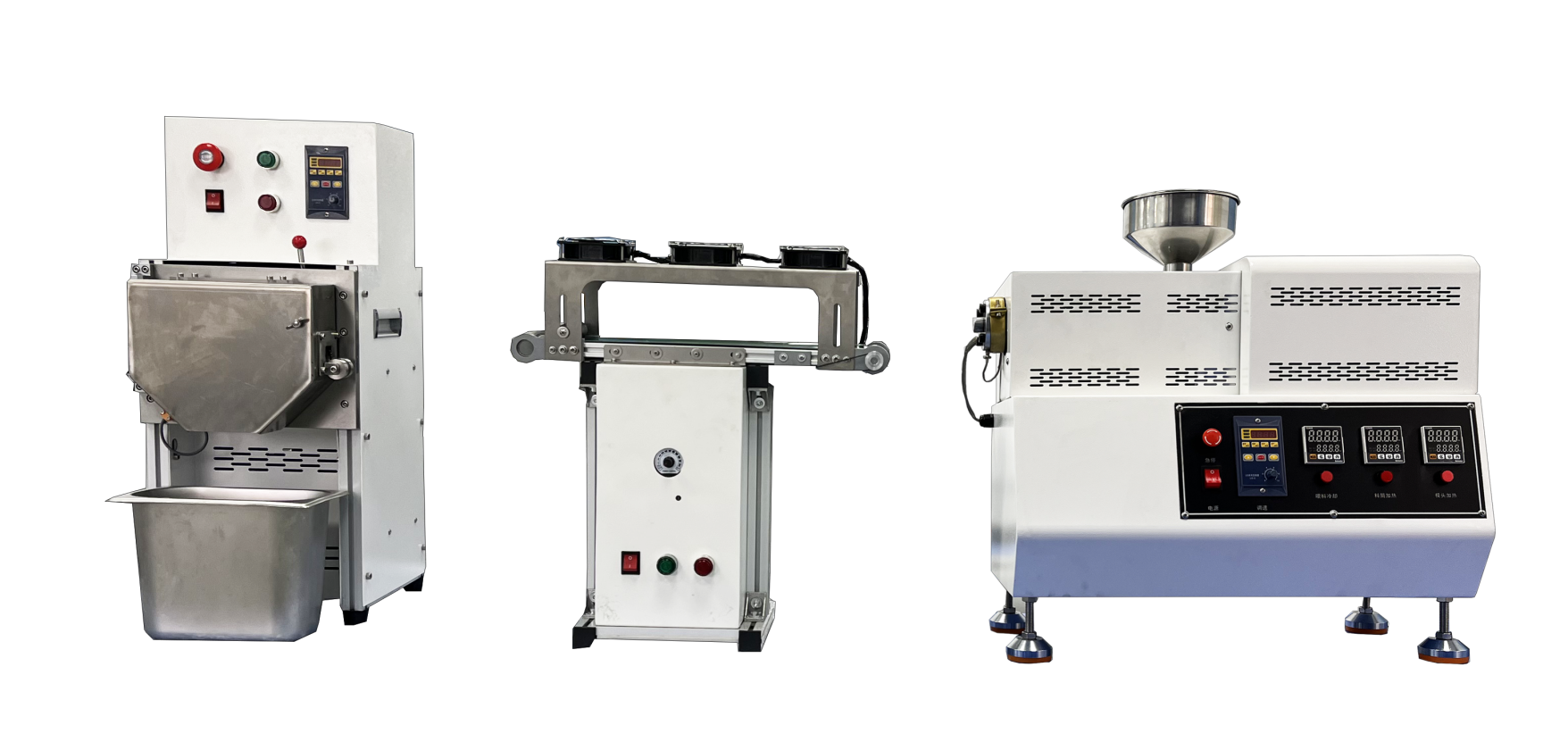

【Extruder + air-cooling device + haul-off and pelletizing device】
