Industrial Black Metal Keyboard 83 Keys 304 Stainless Steel Material For Info Kiosk
Industrial Black Metal Keyboard 83 Keys 304 Stainless Steel Material For Info Kiosk
Industrial Black Metal Keyboard 83 Keys 304 Stainless Steel Material For Info Kiosk
Industrial Black Metal Keyboard 83 Keys 304 Stainless Steel Material For Info Kiosk
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A361-LTB-FN-BT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
304 stainless steel
Keys :
83 keys
Interface :
USB or PS/2
Function keys :
Yes
Colour :
Black Titanium
GW :
1.5 KGS
Mounting :
Top Panel Mounting
Description

Ruggedized Industrial Metal 83 Keys For Info Kiosk Entry SS Keyboard

MODEL NO.: K-TEK-A361-LTB-FN-BT-DWP

MECHANICAL DATA

· Actuator/keys: 83 keys, super quality SUS304 brushed stainless steel

· Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

· Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

· Key travel: 2.0mm

· Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

· Switch life: more than 10 million of operations.

· Front Plate: 1.5mm thickness super quality brushed stainless steel

· Back Plate:3.0mm thickness brushed & oxidized aluminum

· Tracker ball: 38.1mm (1.5’) diameter, IP68 dynamic washable 1200DPI laser trackball

· G.W.:2.0KGs

· Dimensions:361.0mm x 145.0mm

ENVIRONMENTAL ADAPTABILITY

· Operating temperature:-20oC to +60oC

· Storage temperature: -30oC to +70oC

· Operating RH: 30-90%

· Atmospheric pressure: 60-106Kpa.

· Saline mist: 96 hours, IEC 60512-6

· Damp heat test at + 40oC: 21 days, IEC 60512-6

· Dry heat test at + 85oC: 10 days, IEC 60512-6

ELECTRICAL DATA

· Supply Voltage: +5V DC +/-5%

· Current Rating: appr. 30mA

· EMC Standard: It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004

· EMI: EN 55022: 2010

· EMS: EN 55024:2010

· Lifespan > 5 years

· Switch Contact Material: Carbon-on-Gold key switch technology PCB.

· Interface: PS2, USB available

· OS: All windows, Linux, Unix, Mac OSX

RELIABILITY

· RoHS Compliant, CE and FCC, ESD

· Protection Level: IP67

· Vandal resistant IK09

· Key Lifespan >10 million actuations

· MTBF >50000H

· MTTR <30min

DESCRIPTION:

3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,

High quality durable black titanium electroplated on the top stainless steel plate, stainless steel top plate with threaded bolts for top panel mounting solution.

Material: super quality SUS304 stainless steel.
PS/2 and USB interfaces are available, No driver needed, plug and play.

Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise,

Carbon-on-Gold PCB key switch technology.
Laser engraved characters for excellent durable.
All international language lay-out are optional.

IP67 Dynamic waterproof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions

Fast and accurate cursor position with extremely smooth operation

DIMENSIONS: 361.0mm x 145.0mm (top panel)

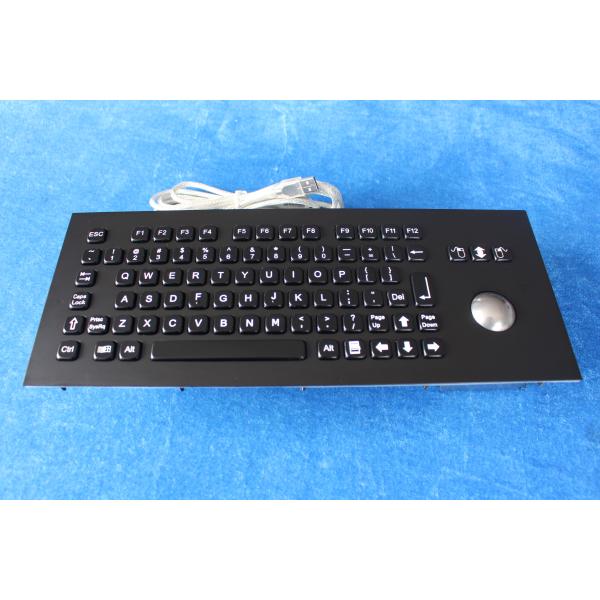

Actual Photos:

Industrial Black Metal Keyboard 83 Keys 304 Stainless Steel Material For Info Kiosk

Industrial Black Metal Keyboard 83 Keys 304 Stainless Steel Material For Info Kiosk
