IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys
IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys
IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys
IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys
IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys
IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A95TP-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be advised
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Front Plate :
Quality brushed stainless steel
Mounting Rack :
Aluminum alloy
Touchpad lifespan :
> 10 Mio times
Power supply :
5V DC+ 10%
Work current :
4.0mA (normal)
Tracking speed :
Maximum 1,016 m/sec
Description

IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys

Model NO:K-TEK-A95TP-DWP

Description: IP67 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse keys under touchpad, the electronics controller module shielded and protected with stainless steel housing, stainless steel top plate with threaded bolts for top panel mounting solution. One complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet.

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

Dimension: 95.0mm x 95.0mm (front panel)

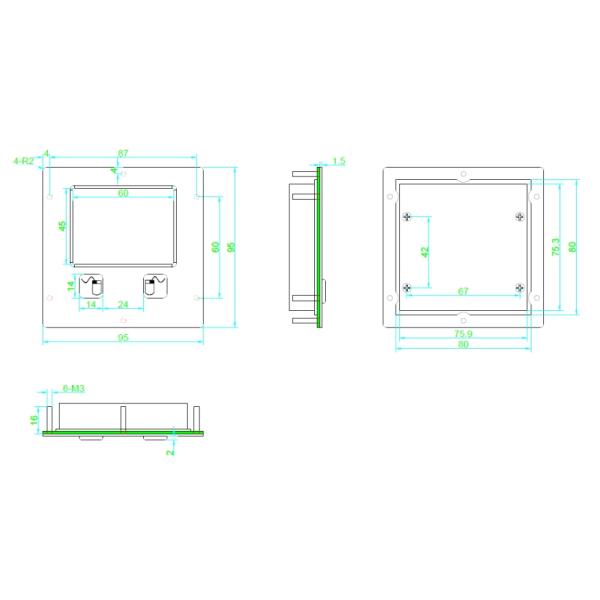

Mechanical Drawing:

IP67 dynamic Sealed and Ruggedized Tough Touchpad with sealed stainless steel mouse keys

TECHNICAL SPECIFICATION:

ITEM SPECIFICATION
Mechanical Front Plate Quality brushed stainless steel
Touchpad thickness 1.5 mm PCB thickness inclusive of mylar layer
Validated touch width 45.0mm (max)
Validated touch length 60.0mm (max)
Mounting Rack Aluminum alloy
Back Metal Cover Rear side integrated electronics protected by a metal cover
Touchpad lifespan > 10 Mio times
Dimensions

Touchpad: 60.0mm x 45.0mm;

Front Mounting Panel: 80.0mm x 80.0mm (front panel),

Rear Mounting Panel: 87.0mm x 90.0mm
Interface PS2 and USB both available
Electrical Power supply 5V DC+ 10%,
Work current 4.0 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP67 dynamic (front panel)
Static Release: 15 KV (front panel)
EMC Standard: EN55022(B)
Environmental Operating temperature: -20°C to +60°C
Storage temperature: - 40°C to + 70°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability MTBF >50000h
MTTR < 30min
Key switch lifespan >10 million actuations
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
