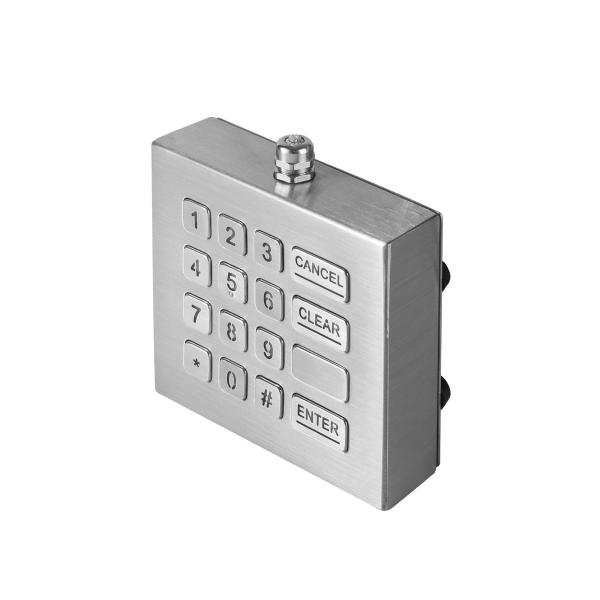

Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution
Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution
Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution
Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B120KP-BL-DT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Metal Stainless steel
Key number :
16 keys
Interface :
USB or PS/2 interface
Key travel :
2mm long stroke
Colour :
Brushed stainless steel
Dimension :
120.0mm x 98.0mm (L x W )
Mounting :
Top panel mounting
Description

Updated16 Keys Numeric Keypad with Backlight for Outdoor IP68 standard Desktop Solution

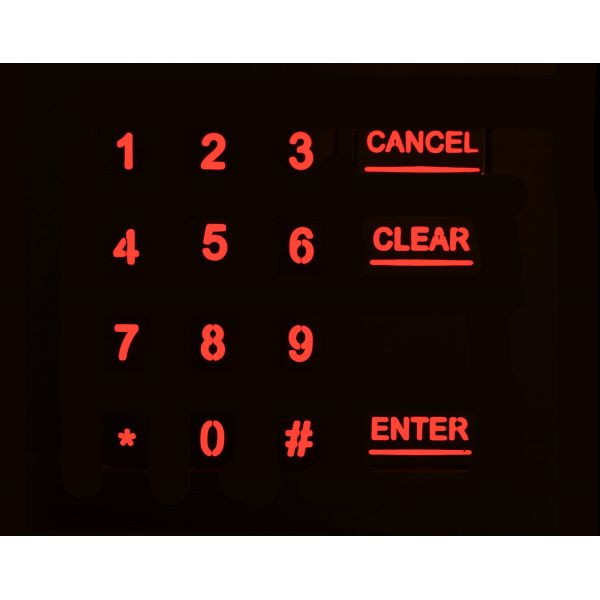

16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial dot matrix numeric keypad with fully sealedindustrial metal dome PCB with socket on the back panel for connecting electronics controller, industrial metal dome PCB with gold-on-gold keyswitch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out
via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included (Red/blue/white/greenoptional), movable desktop solution.
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc,no rust risk and anti-salt spray corrosion.
DIMENSIONS: 120.0mm × 98.0mm (front panel)

Specifications:

MECHANICAL DATA

Actuator/keys

16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel

Switching material

Gold-on-Gold key switch technology PCB

Actuation Force

0.6 N+/-0.1N (pressure point)

Key travel

0.45mm

Lettering

laser engraving, or raised letters

Front plate

Super quality SUS304 brushed stainless steel

Back plate

Super quality SUS304 brushed stainless steel

Actuator/keys materials

stainless steel.

Dimensions

120.0mm x 98.0mm (L x W )

G.W.

0.8KG.

Key top style

Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys;14.0mm x 28.0mm for function keys

Switch life

more than 5 million of operation

More View:

Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution

Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution

Our Office:

Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution

Our Factory:

Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution

Updated16 Keys Industrial Numeric Keypad with Backlight IP68 standard Desktop Solution
