Desktop Metal Ruggedized Keyboard Waterproof Industrial Kiosk With Trackball
Desktop Metal Ruggedized Keyboard Waterproof Industrial Kiosk With Trackball
Desktop Metal Ruggedized Keyboard Waterproof Industrial Kiosk With Trackball
Desktop Metal Ruggedized Keyboard Waterproof Industrial Kiosk With Trackball
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A420-OTB-KP-FN-DT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To Be Quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Actuator/keys :
102 keys, super quality SUS304 brushed stainless steel
Water proof :
Yes
Key travel :
2.0mm long stroke
Dimentions :
430.0mm x 155.0mm x 49.0mm (L x W x H)
USB /PS2 :
Yes
trackball :
MTB/OTB
Protect Level :
IP68
Description

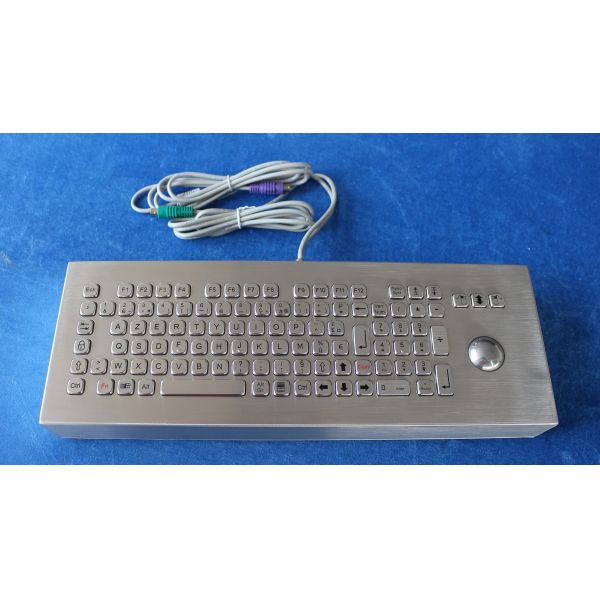

Waterproof Industrial Kiosk Stainless Steel Desktop Metal Keyboard with Trackball


Items Specifications
Key Features 102 Keys Compact Format IP68 dynamic Vandal Proof Stainless steel industrial keyboard with full keyboard functionalities, with IP68 dynamic rated 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, numeric keypad, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, movable stand alone DESK TOP VERSION. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, without metal parts inside to avoid rust risk and anti-salt spray corrosion.
The keyboard can be dynamic washable with water and other liquids.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to
design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP68 protection from top panel, top stainless steel plate with threaded
bolts for easy tightly mounting to enclosure or panel.
Material Stainless Steel
Electrical Data Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
Environmental Adaptability Operating temperature: -20℃ to +60℃
Storage temperature: -30℃ to +70℃
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
Mechanical Data Actuator/keys: 102 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys
are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm long stroke.
Actuation Force: 1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1Nfor key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Stainless Steel Housing: super quality brushed stainless steel.
Compatible Operation System OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
Reliability RoHS Compliant, CE and FCC, ESD
Protection Level: IP68
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
Dimension 430.0mm x 155.0mm x 49.0mm (L x W x H)
Weight G.W.: 3.00KGs


Desktop Metal Ruggedized Keyboard Waterproof Industrial Kiosk With Trackball
