22 Keys Sealed Silicone Rubber Keyboard With Rugged Force Sensing Pointers

MODEL NO.: K-TEK-M160-HP-KP-DWP

DESCRIPTION: 22 keys IP67 dynamic sealed and ruggedized silicone rubber keyboard with a Force Sensing Resistor pointing device for fast and accurate cursor position, with integrated numeric keypad,with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, CLEAN key for easy cleaning without needing to take the keyboard from PC, with stainless steel housing protects the electronics controller, with mounting holes for rear panel mounting.

DIMENSIONS: 140.0mm x 105.0mm (front panel)

APPLICATIONS

• This ruggedized and compact design keyboard can be good for working in low-light areas, it is also available with optional LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for below wide applications:
• MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
• MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
• MILITARY: Army, Navy, Air force
• INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses

MAIN FEATURES:

Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality.

The keyboard lacks the crevice found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Clean key Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY.
Special durable-coating for excellent mechanical and chemical resistance.
With firm tactile key feel, key travel 1.50mm key travel.
Integrated Force Sensing Resistor Pointing Device.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Low-profile keys for easy cleaning

Key life: 10 millions

MECHANICAL DATA:

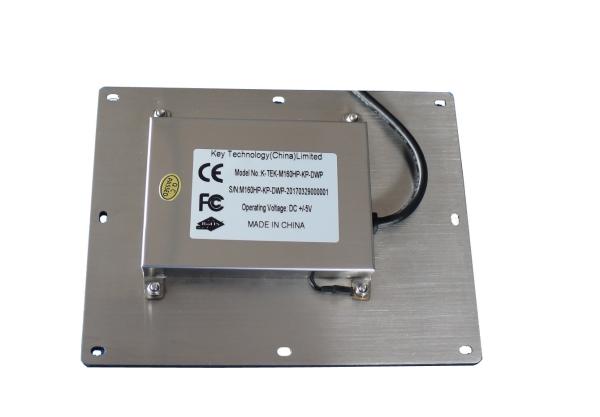

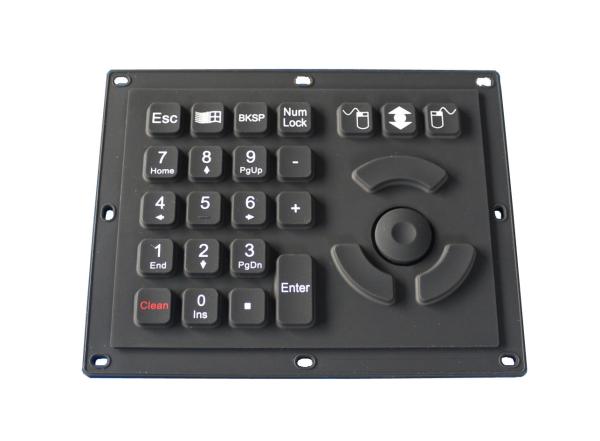

Photos for reference:

ELECTRICAL DATA:

• Supply Voltage: +5V DC +/-5%
• Current Rating: 30mA (non-backlight) , 150mA (with backlight on)
• EMC Standard: IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 EMI: EN55022: 2010
• EMS: EN55024: 2010
• Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
• Interface: PS2, USB available.
• OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20℃ to +60℃
• Storage temperature: :-30℃ to +70℃
• Operating RH: 100%
• Atmospheric pressure: 60-106Kpa
• Shock: 3x11 ms pulses of 50g on each of 3 axes
• Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz,
• DURATION OF TEST PER AXIS: 3 hours Flammability
• PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY:

• RoHS , CE, FCC
• Protection Level: IP67, NEMA 6P
• Key Lifespan >10 million actuations
• MTBF >50000H
• MTTR <30min
