IP65 Stainless Steel USB kiosk Keyboard With Touchpad with any customized layout

DESCRIPTION: 68 keys compact format IP65 static vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet,industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear panel mounting solution.

MAIN FEATURE:

• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

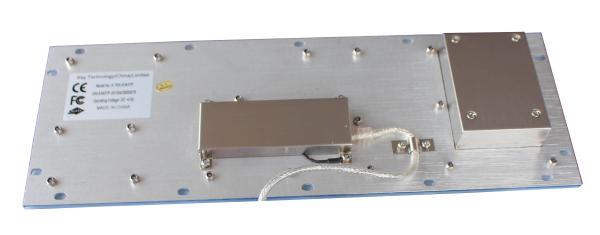

• Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.
• An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Complete electronic modules including controller in close consultation with our customers are available.
• PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

ELECTRICAL DATA:

ENVIRONMENTAL ADAPTABILITY:

• Operating temperature:-20oC to +60oC
• Storage temperature: -30oC to +70oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40oC: 21 days, IEC 60512-6
• Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:

• RoHS Compliant, CE and FCC, ESD
• Protection Level: IP65(front panel)
• Vandal resistant IK09
• Key Lifespan >10 million actuations
• MTBF >50000H
• MTTR <30min

Mechanical Drawing:
