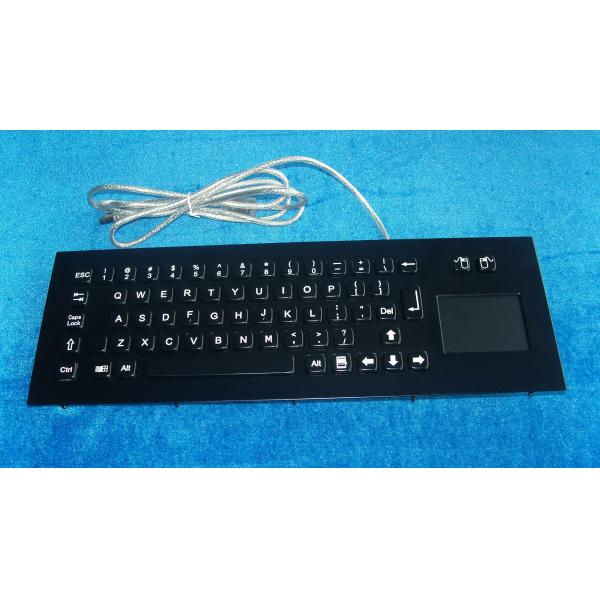

Ultra thin IP65 Dynamic Industrial Black Metal Keyboard Durable Vandal resistant
Ultra thin IP65 Dynamic Industrial Black Metal Keyboard Durable Vandal resistant
Specifications
Model Number :
K-TEK-A361TP-BT
Place of Origin :
Shenzhen, China
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Brand Name :
IKB-MKB
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
MOQ :
1pc
Price :
To be quoted
IP65 dynamic industrial stainless steel keyboard durable black titanium :
RoHS Compliant, CE and FCC,IP65,ESD
Protection Level :
IP65(front panel)
Vandal resistant :
IK09
Key Lifespan :
>10 million actuations
MTBF :
>50000H
MTTR :
<30min
Description

IP65 dynamic industrial stainless steel keyboard durable black titanium

Special Features:


1. vandal proof stainless steel industrial kiosk keyboard with touchpad
2. High quality scratch-proof durable black titanium electroplated
3. CE, FCC, RoHS, IP65, ESD
4. 68 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
5. With P65 dynamic sealed & ruggedized tough touchpad with scroll function
6. One complete silicone rubber along mounting aluminum plate
7. High quality scratch-proof durable black titanium electroplated on top stainless steel plate
6. Stainless steel top plate with threaded bolts for top panel mounting solution.
7. Metal keys are protected against twisting and evering which can not be dislodged from front.
8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.


Specifications:

MECHANICAL DATA

Key

68 keys, super quality brushed stainless steel

Key top style

Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 100mm for space bar.

Key travel

2.0mm

Touch pad

Sealed and ruggedized tough touchpad.

Touchpad cover

Composite

X/Y position sensing resolution

40 counts/mm

X/Yposition reporting

Relative

Switch life

more than 10 million of operations

Actuation Force

0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point)
1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)

Tracking speed

Maximum 1,016 m/sec

Output(self-detectable depending on cable)

PS2 or USB

Mounting Rack

Aluminum alloy

Front Plate

Super quality brushed stainless steel

Lettering

Sunk laser legends & characters in high quality ink

Actuator/keys materials

stainless steel

G.W.

1.80KGs

Dimension

361.0mm x 125.0mm (front panel)0K
343.0mm x 105.0mm (back panel)

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 20mA


EMC Standard:

It is compliance with the council IEC 61000-4-2:2008;
IEC 61000-4-3:2006+AI:2007+A2:2010；
IEC 61000-4-4:2004

EMI:

EN 55022: 2010

EMS:

EN 55024:2010

Lifespan

> 5 years

Switch Contact Material:

Carbon-on-Gold key switch technology PCB.

Interface:

PS2, USB available.

OS:

All windows, Linux, Unix, Mac OSX
