16 keys weather proof USB black backlit metal numeric keypad

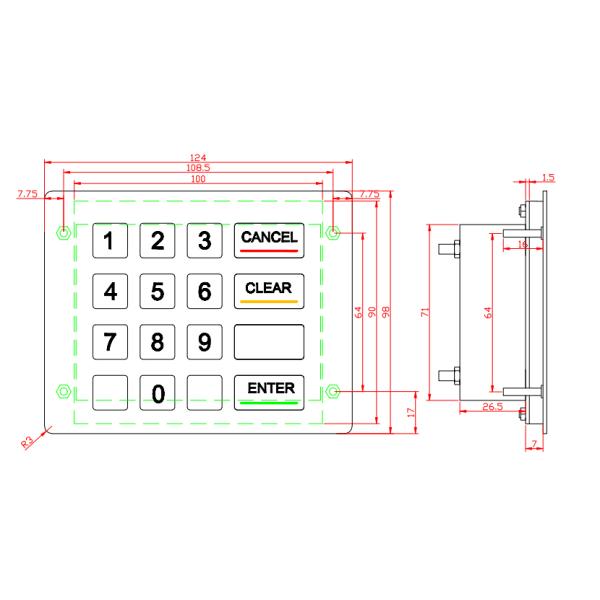

Dimension: 124.0mm x 98.0mm (front panel)

Description: 16 keys compact format IP65 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB wih socket on the back for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, original treatment and finnish stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, industrial backlight included, (Red/blue/white/green optional), top stainless steel plate with black titanium electroplated and sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts under top stainless steel plate for top panel mounting solution.

Special Features:

1. USB port, RS232 port, PS2 port are availabel.

2. High quality black titanium top panel mounting versio.

3. Imposing stainless steel design keyboards with custom layouts options.

4. Waterproof,vandalproof,scrachproof, salt fog proof.

5. 0.45mm short stroke with firm tactile perception for comfortable operation
6. Complete electronic modules included.

This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc..

MAIN FEATURE:

• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning, threaded bolts & sealing gasket for easy tightly mounting to enclosure or panel.
• An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
• Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Metal keys are protected against twisting and levering which cannot be dislodged from front, or defaced removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Specifications:

Actual Photos:
