16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix
16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix
16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix
16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix
16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix
16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B124KP-AC-BL-BT
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Price :
To be quoted
Panel :
Top panel mountign
Interface :
USB, PS/2, RS232
Key travel :
0.45mm short stroke
Material :
304 stainless steel
Colour :
Black
Backlight :
Blue or Red
Key number :
16 keys
Description

16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix

MAIN FEATURE:


• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to
design, functionality, longevity and high protection level.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof
especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat
keyboard surface for easy cleaning, threaded bolts & sealing gasket for easy tightly mounting to enclosure
or panel.
• An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data
input, with firm tactile perception for comfortable operation
• key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering
rub-off.
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced
removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Complete electronic modules including controller in close consultation with our customers are available.

Mechanical DATA:

Actuator/keys 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key
Key top style Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys
Key travel 0.45mm
Actuation Force 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x28.0mm(pressure point)
Switch life more than 5 million of operations
Front Plate 1.5mm thickness super quality brushed stainless steel with black titanium electroplated
Back Stainless steel housing 1.0mm thickness super quality stainless steel
G.W. 0.80KGs
Dimensions 120.0mm x 98.0mm (L x W )

ENVIRONMENTAL ADAPTABILITY • Operating temperature:-20oC to +60oC
• Storage temperature: -30oC to +70oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40oC: 21 days, IEC 60512-6
• Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY • RoHS Compliant, CE and FCC, ESD
• Protection Level: IP65(front panel)
• Vandal resistant IK10
• Key Lifespan >5 million actuations
• MTBF >50000H
• MTTR <30min

PCB Users choice:

1) Button chrome-plasted colors: polished or sand blasted chrome.

2) Zinc alloy plasted of the frame work’s colors: polished or sand blasted chrome.

3) Other usage keyboard is available besides using for telephone and access control systems

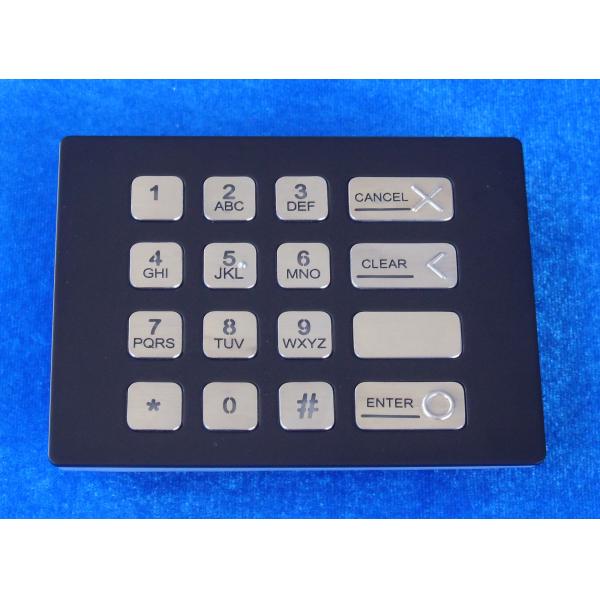

Actual Photo:

16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix

Our Certificate:

16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix

Our factory:

16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix

16 keys weather proof industrial black backlit metal numeric USB keypad with dot matrix
