IP65 Industrial Trackball Pointing Device
IP65 Industrial Trackball Pointing Device
IP65 Industrial Trackball Pointing Device
IP65 Industrial Trackball Pointing Device
IP65 Industrial Trackball Pointing Device
IP65 Industrial Trackball Pointing Device
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A83-38-TB
Certification :
CE,FCC,ROHS,IP65,IP68,ESD
Place of Origin :
China
MOQ :
+ 1 pc
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
3000pcs/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box,several boxes to one carton
Material :
Metal Stainless steel
Colour :
Brushed stainless steel
Trackball :
MTB，OTB，LTB
Trackball Resolution :
400DPI, 800DPI, 1200DPI Resolution optional
Key Travel :
2 mm long stroke
Trackball diameter :
19mm, 25mm, 38mm 50mm also available
Dimension :
83.0mm x 110.0mm (front plate )
Interface :
USB or PS/2 interface
Description

IP65 ruggized Industrial Trackball Pointing Device With 38mm Diameter

Main Features:

1. IP65 dynamic rated Vandal proof stainless Steel trackball

2. IP68 dynamic rated washable 38.0mm stainless steel trackball module for fast and accurate fixing

cursor position with extreme smooth operation without any noise

3. Trackball module protected and shielded by stainless steel housing

4. Rear stainless steel plate with mounting holes for rear panel mounting.

5. 3 optional trackball modules:

5.1 IP65 static mechanical trackball module with 400 DPI,

5.2 IP68 dynamic optical trackball module with 800 DPI,

5.3 IP68 dynamic laser trackball module with 1200 DPI,


System:

OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER.

Specifications:

MECHANICAL DATA Switching material: Carbon-on-Gold
Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Key Travel: 2.0mm
Lettering: laser engraving, or raised letters.
Front panel: brushed stainless steel
Actuator/keys materials: brushed stainless steel
Dimensions: 110.0mm x 80.0mm (top panel)
G.W. 0.8KGs

ELECTRICAL DATA		 Power supply voltage: 5V DC.
Power Consumption: Under 30mA for operation
Electrical lifetime: > 5 years
EMC:EN55022(B)
Communication interface: PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.

RELIABILITY		 RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations .
MTBF >50000H.
MTTR <30min.

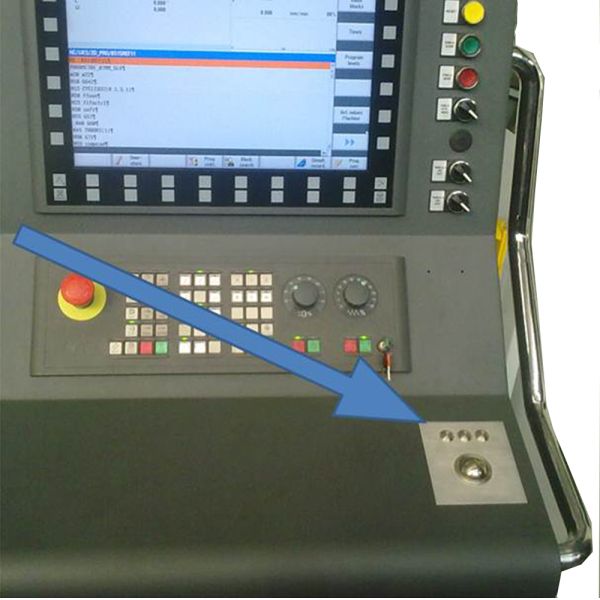

Actual Application:

IP65 Industrial Trackball Pointing Device

Our Certificate:

IP65 Industrial Trackball Pointing Device

Our Office:

IP65 Industrial Trackball Pointing Device
