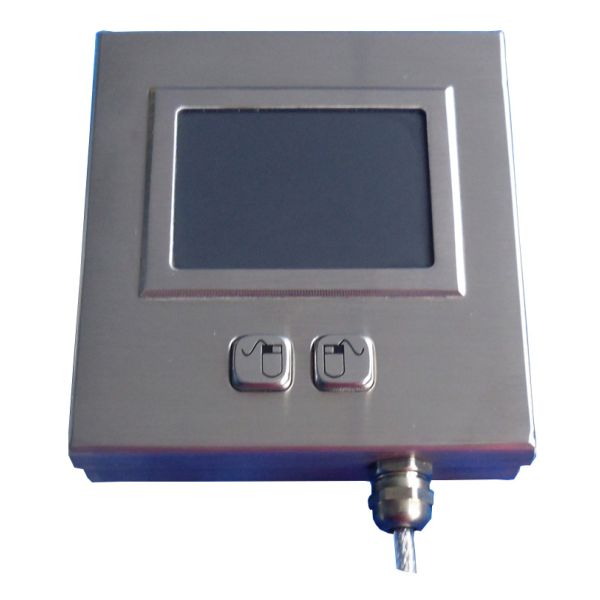

Weather proof metal movable Industrial Touchpad with 2 mouse buttons for railway
Weather proof metal movable Industrial Touchpad with 2 mouse buttons for railway
Weather proof metal movable Industrial Touchpad with 2 mouse buttons for railway
Weather proof metal movable Industrial Touchpad with 2 mouse buttons for railway
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A107-TP-DT
Certification :
CE, FCC, RoHS, IP65, ESD
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
3000pcs/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box,several boxes to one carton.
Dimension :
107.0mm x 120.0mm x 20.0mm (L x W x H)
Material :
Brushed stainless steel or Black
Application :
Kiosk, medical, railway, navy
OEM/ODM :
yes
Interface :
USB or PS/2
Colour :
Brushed stainless steel or Black
Mounting :
Stand alone movable touchpad
Description

Weather proof metal industrial movable touchpad with 2 mouse buttons

Mian features:

1. IP65 dynamic sealed and ruggedized tough touchpad


2. with scroll function (optional) for fast and accurate cursor position


3. With stainless steel housing protects the electronicss module


4. Raised buttons for mouse keys


5. Stainless steel desk top touchpad


6. Plug and play USB or PS/2 interface


7. Raised buttons for mouse keys


8. Stand alone desk top version


9. Ergonomic quality ruggedized touchpad

Application:

A: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.


B: MILITARY: Army, Navy, Air force, Marine and Boating etc


C: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc.


D: INDUSTRIAL: Industrial automation, Banks/Kiosks, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses.

ITEM

SPECIFICATION

Mechanical

Front Plate

Quality brushed stainless steel

Touchpad thickness

1.3 mm PCB thickness inclusive of mylar layer

Validated touch width

46.50mm (max)

Validated touch length

62.50mm (max)

Back Metal Cover

Rear side integrated electronics protected by a metal cover

Touchpad lifespan

> 10 Mio times

Dimensions

Touchpad: 65.0mm x 49.0mm;

Dimensions: 107.0mm x 120.0mm x 20.0mm (L x W x H)

Interface

PS2 and USB both available

Electrical

Power supply

5V DC+ 10%,

Work current

4.0 mA (normal)

X/Y position sensing resolution

1000 points/inch (40 points/mm)

X/Y position reporting:

Relative

Tracking speed:

Maximum 1,016 m/sec

Protection level:

IP65 (front panel)

Static Release:

15 KV (front panel)

EMC Standard:

EN55022(B)

Environmental

Operating temperature:

-20°C to +60°C

Storage temperature:

- 40°C to + 70°C

Operating RH:

10%-95%

Atmospheric pressure:

60-106Kpa

Reliability

MTBF

>20000h

MTTR

< 30min

Touchpad Lifespan

>10 million actuations

OS

OS is under All windows, Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable inner box, suitable brown inner boxes to a standard export carton.
