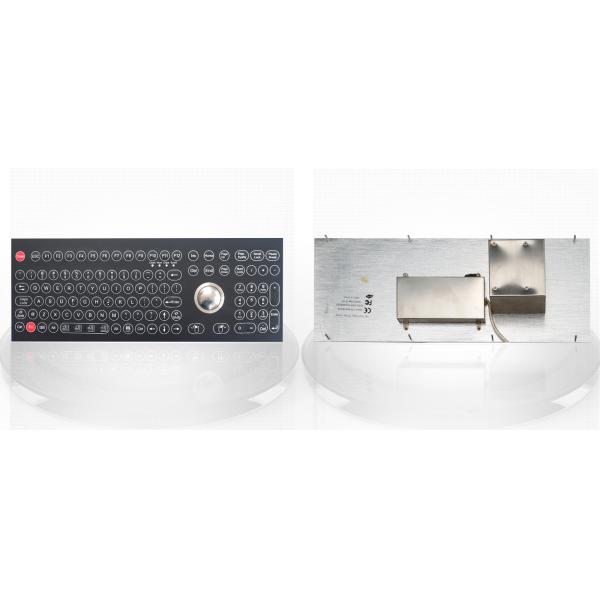

Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard
Specifications
Model Number :
K-TEK-D410-OTB-KP-FN
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2-3 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Brand Name :
IKB-MKB
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Price :
to be quoted
keys :
108 keys (including 2 mouse buttons)
mounting :
front panel mounting
color :
black & white
layout :
any customized language
trackball resolution :
800DPI
material :
membrane
Name :
medical keyboard
Description

Rugged Falt Membrane Hospital Keyboard All In One Function

DESCRIPTION: 108 keys IP65 dynamic rated industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized aluminum back plate with sand blasting & oxygenation treatment, top panel mounted.

MEDICAL KEYBOARD DIMENSIONS: 410.0mm x 160.0mm (top panel)

Keyboard Layout:

Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard

Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard

Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard

Actual Pictures:

Rugged Flat Membrane Medical Keyboard All In One Function washable Keyboard

MECHANICAL DATA
Number of Keys 108 keys (including 2 mouse buttons)
Key switch Technology metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys (Omron micro key switch technology optional)
Actuation Force 3.5N±0.2N (press point)
Key Travel 0.45±0.05mm
Key switch Lifetime 1 mil. operations
Mounting Type Top panel mounting.
Colors 3 (white, black, grey)
G.W. 1.50KGs
Key Dimensions (print area) 13.0mm x 13.0mm
Trackball IP68 washable 38mm stainless steel optical ball, or silver hardened resin optical ball
Trackball resolutions 800DPI
WATERPROOF KEYBOARD ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 100mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 100%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
MEMBRANE KEYBOARD RELIABILITY
RoHS, CE, FCC
Protection Level IP65 dynamic
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
