External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting
External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting
External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting
External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting
External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting
External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A62KP-AC-BL
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
US
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Panel mounting :
Rear panel mounting
Key numbers :
12 keys
Materials :
Metal
System :
All Windows, Linux, Unix, Mac OSX
Dimensions :
62*70mm
Interface :
Dot matrix
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Description

External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting

Main features:

1) Force 160-180 grams, nimble dial-up


2) Highly anti-destructive power,


3) Relative humidity ≤ 95%


4) Defend grad e IP65~IP67


5) Atmospheric pressure 80~106kPa


6) Contact resistance<100 Ω


7) Ambient temperature -20~+50 °C


8) Service life≥500 thou san d

Main components

1) Alloy chrome-plated button and framework

2) Natural electrical conductive silicon rubber

3) Epoxy resin gilding

PCB Users choice

1) Button chrome-plated colors: polished or sandblasted chrome.

2) Zinc alloy – plated of the framework’s colors: polished or sandblasted chrome

3) Other usage keyboard is available be side s using for telephone and access control systems

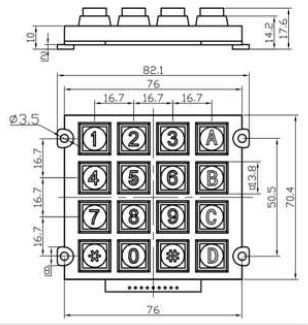

Mechanical Drawing:

External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting

Actual Photos:

External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting

External Mini Die Casting Metal Keypad 4 X 4 Rear Panel Mounting
