Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B107R-38-OTB-BT
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Trackball Diameter :
38mm
Colour :
Black
DPI :
800 DPI resolution
IP rate :
IP68
Moust Buttons :
3
Material :
Metal Stainless Steel
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Description

Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation

Special Features:

1. IP65 dynamic rated vandal proof stainless steel optical trackball with IP68 dynamic rated washable 38.0mm hardened resin optical trackball module with +800 DPI resolutions

2. stainless steel top plate with durable and scratch-proof black titanium electroplated, with welded threaded bolts for top panel mounting solution.

3. IP68 dynamic waterproof (from the top)

4. Solid State Optical Navigation Technology

5. Removable Ball Versions

6. Maintenance free with no moving parts

7. Intrinsically and ESD safe operation

8. Quadrature, PS/2 and USB outputs

TECHNICAL SPECIFICATION:

ITEM

SPECIFICATION

Mechanical

Key

3 keys, sealed stainless steel buttons

Key top style

sealed round stainless steel buttons with tactile feeling

Front Plate

Quality brushed SUS304 stainless steel

Key Travel

0.45mm

Ball

Epoxy Resin with special surface treatment, 38mm/1.50'

Key switch lifespan

more than 10 Mio actuations

Track ball lifespan

> 5 Mio revolutions

Back Metal Cover

Rear side integrated electronics protected by a metal cover

Tracking Force

20 grams Nominal Continuous Friction / Scraper Ring

Dimension

Dimensions with 38mm track ball,

Front plate (W x H): 107.0mm x 120.0mm

Interface

PS2, USB are available, Y type cable with ports of PS2 and USB

Electrical

Power supply

5V DC+ 10%, keyboard interface

Protection level

IP68 (front panel), NEMA3

EMC Standard

EN55022(B)

Power consuming

≤1.00W(dynamic)

≤0.2W(static)

Contact Material

sealed stainless steel buttons

Environmental

Operating temperature

-20ºC~+ 60º C

Storage temperature

- 30ºC~+ 70ºC

Operating RH

30～90%

Atmospheric pressure

60～106Kpa.

Reliable

Certificates

RoHS compliant, CE and FCC certified. ESD

MTBF

>50000H

MTTR

< 30min

OS

OS is under All windows, Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable brown box, suitable brown boxes to a standard export carton.

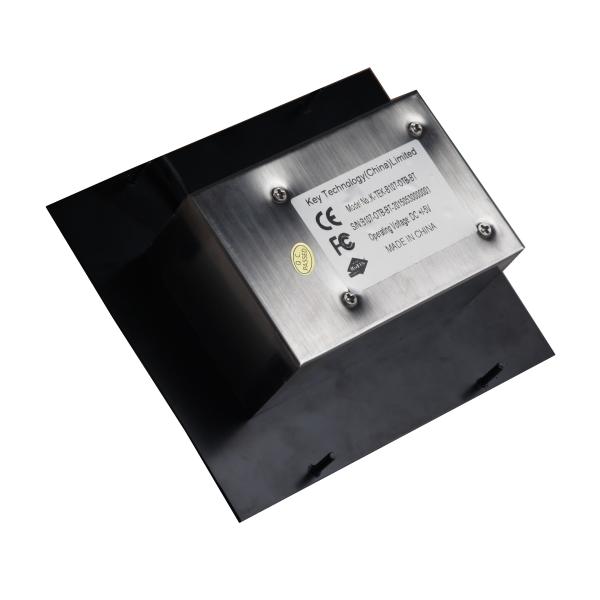

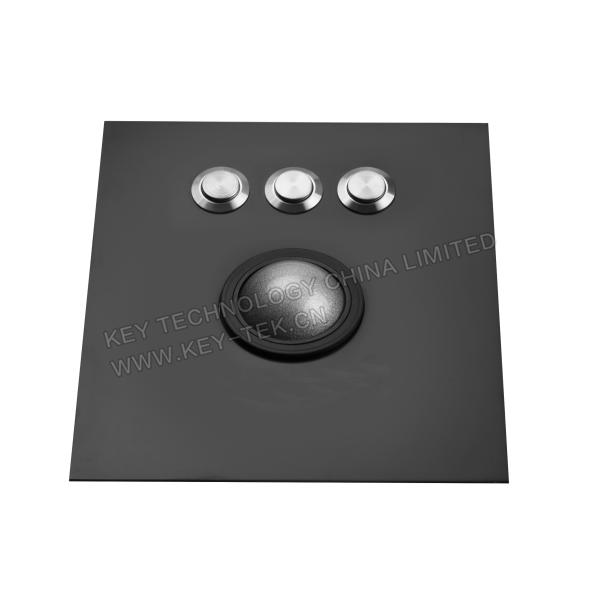

Actual Pictures:

Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation

Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
