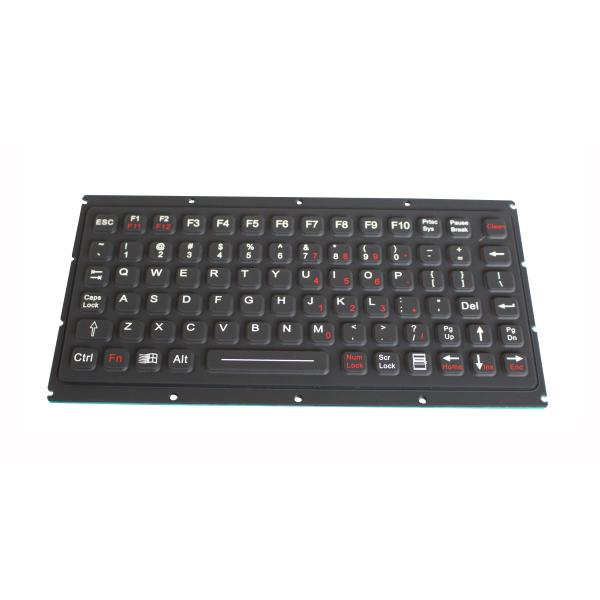

black rubber material military panel mounting keyboard with OEM and FN keys

81 keys IP65 dynamic sealed & ruggedized silicone rubber military keyboard with carbon-on-gold PCB included, 10 function keys on top line for easy operation, carbon-on-gold PCB with with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mounted version, adjustable backlight optional, Military Level.

MECHANICAL DATA

ENVIRONMENTAL ADAPTABILITY

1. Humidity: 100%

2. Shock: 3x11 ms pulses of 50g on each of 3 axes

3. Atmospheric pressure: 60-106Kpa

4. Flammability

5. Operating temperature:-20oC to +60oC(industrial level)

6. PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

7. -40oC to +85oC(military level)

8. Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz,

9. DURATION OF TEST PER AXIS: 3 hours

10. -55oC to +150oC(military level)

11. Storage temperature: :-30oC to +70oC (industrial level)

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA (non-backlight), 140mA (with backlight on)
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008；

IEC 61000-4-3:2006+AI:2007+A2:2010; IEC61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: All windows, Linux, Unix, Mac OSX

RELIABILITY
