Dynamic Durable Ruggedized Keyboard
Dynamic Durable Ruggedized Keyboard
Dynamic Durable Ruggedized Keyboard
Dynamic Durable Ruggedized Keyboard
Dynamic Durable Ruggedized Keyboard
Dynamic Durable Ruggedized Keyboard
Dynamic Durable Ruggedized Keyboard
Dynamic Durable Ruggedized Keyboard
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A380-50-MTB-FN
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Dimensions :
380.0mm x 145.0mm(top panel)
Key Travel :
2mm
Supply Voltage :
+5V DC +/-5%
Interface :
PS2, USB available
mouse buttons :
3
Keys :
82
Trackball :
MTB, OTB, LTB
Description

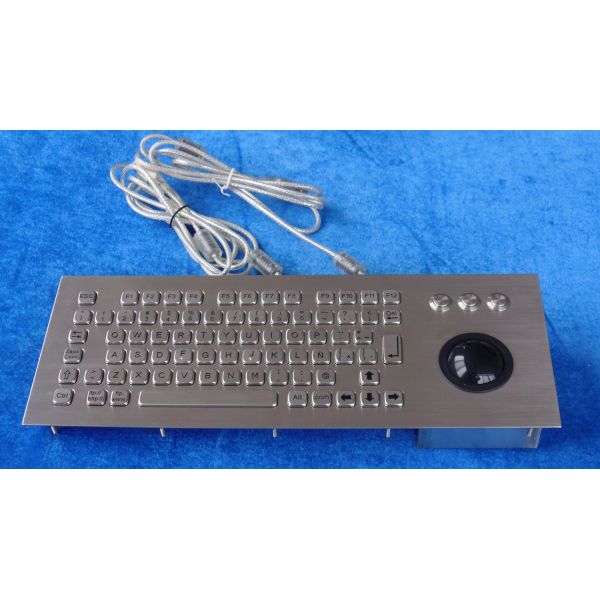

82 Keys IP65 Dynamic Ruggedized Keyboard With 50mm Resin trackball

Specifications:

MECHANICAL DATA

Key

82 keys, super quality SUS304 brushed stainless steel

Key top style

Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,

14.0mm x 28.0mm for enter key,

14.0mm x 100mm for space bar.

Key travel

2.0mm

Tracker ball

50mm diameter,

IP65 static 400DPI mechanical trackball module,

IP68 dynamic washable 800DPI optical trackball module,

IP68 dynamic Laser Trackball with 1200 DPI

Switch life

more than 10 million of operations

Actuation Force

0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point)

1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminum

Actuator/keys materials

stainless steel

G.W.

2.00KGs

Dimensions

380.0mm x 145.0mm (front panel)

Descriptions:

1. 82 Keys Compact Format IP65 Vandal Proof Stainless Steel industrial Keyboard.

2. with 50.0mm hard resin mechanical trackball module with 400DPI resolution.

2. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise.

3. function keys F1, F2..F10, F11, F12 are on the top panel for easy operation.

4. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling.

5. one complete silicone rubber under the top stainless steel plate for easy mounting & sealing tightly with cabinet.

6. stainless steel top plate with threaded bolts for top panel mounting solution.

7. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
8. Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.
9. Complete electronic modules including controller in close consultation with our customers are available.
10. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Applications:

This Keyboard is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
