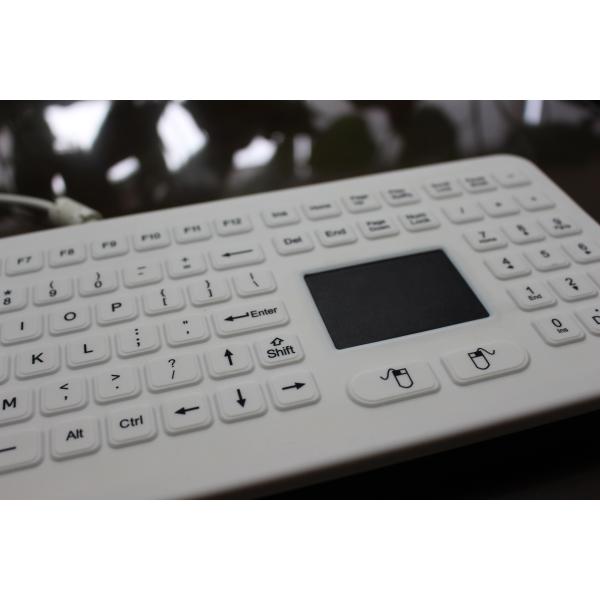

All In One Silicone Industrial Keyboard With Numeric Keypad white or black colour for medical

DESCRIPTION:

108 keys IP68 dynamic sealed & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities with FN (F1, F2...F11, F12) on upper line, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning via lock/disable the keyboard without needing to take away the keyboard from PC, standard alone desk top version sealed with robust polycarbonate case, adjustable industrial backlight optional.

DIMENSIONS: 399.0mm x 150.0mm x 20.0mm ( L x W x H )

APPLICATIONS:

This keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated touchpad. For working in low-light areas, it is also available with optional LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its large numeric pad allows for easy data entry, while its robust polycarbonate case protects it against any hazardous environment.

• MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
• MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
• MILITARY: Army, Navy, Air force
• INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
• OTHER INDUSTRIES

MECHANICAL DATA:

ELECTRICAL DATA:

1. Supply Voltage: +5V DC +/-5%
2. Current Rating: 30mA (non-backlight) , 150mA (with backlight on)
3. EMC Standard: IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 EMI: EN55022: 2010
4. EMS: EN55024: 2010
5. Lifespan> 3 years
6. Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
7. Interface: PS2, USB available.
8. OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY:

• Operating temperature:-20oC to +55oC
• Storage temperature: :-30oC to +65oC
• Operating RH: 100%
• Shock: 3x11 ms pulses of 50g on each of 3 axes
• Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
• Flammability
• PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY:

• RoHS, CE and FCC, ESD
• Protection Level: IP68, NEMA 6P
• Key Lifespan >10 million actuations
• MTBF >50000H
• MTTR <30min

Actual Pictures:

Our company:

Our 2018 new show:
