Ip65 Waterproof Vandal Proof Metal Keypad With Short Stroke 0.45mm Tactile Feeling
Ip65 Waterproof Vandal Proof Metal Keypad With Short Stroke 0.45mm Tactile Feeling
Ip65 Waterproof Vandal Proof Metal Keypad With Short Stroke 0.45mm Tactile Feeling
Ip65 Waterproof Vandal Proof Metal Keypad With Short Stroke 0.45mm Tactile Feeling
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B138KP-28-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
to be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Keys :
28 keys
Mounting :
rear panel mount solution
Key stroke :
0.45mm
Backlit colour :
optional
Dimensions :
138.0mm x 83.0mm (top panel)
G.W :
0.70KGs
Name :
ATM keypad
Description

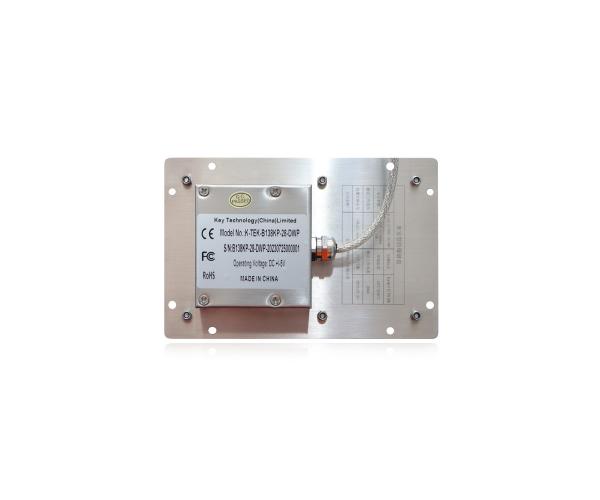

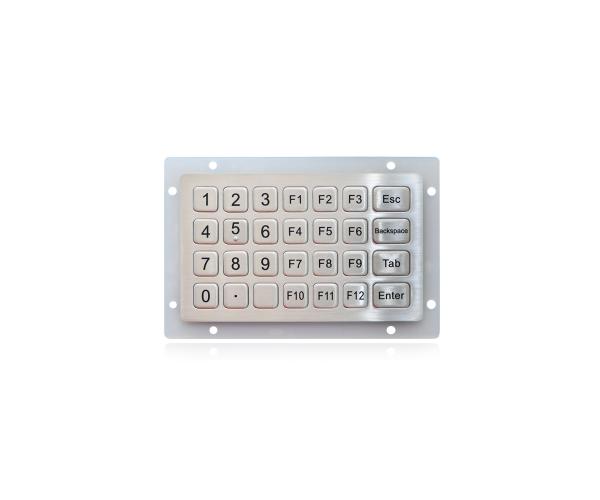

DESCRIPTION: 28 keys compact format IP65 dynamic waterproof and vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing. Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with industrial backlight optional. Top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with mounting holes for rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 138.0mm × 83.0mm (front panel)

Ip65 Waterproof Vandal Proof Metal Keypad With Short Stroke 0.45mm Tactile Feeling

ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 30mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface PS2, USB, RS232, RS485 available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
MECHANICAL DATA
Front Plate 1.5mm thickness super quality brushed stainless steel
Back Plate 1.5mm thickness super quality stainless steel
Actuator/keys 28 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm*21.0mm for longer keys,
Key Travel 0.45mm±0.05mm
Actuation Force

3.5N±0.2N for key 14.0mm x 14.0mm (pressure point)

3.5N±0.2N for key 14.0mm x 21.0mm (pressure point)
Switch Life more than 1 million of operations
G.W. 0.70KGs
ENVIRONMENTAL ADAPTABILITY
Operating Temperature -20℃ to +65℃
Storage Temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric Pressure 60-106Kpa
Saline Mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65 dynamic (front panel)
Vandal Resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
