IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B513TP-KP-FN-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Stainless steel
Keys :
103 keys (including 2 mouse buttons)
Key travel :
1.5mm±0.1mm
Interface :
PS2, USB
Touchpad :
Composite
Dimensions :
513.0mm x 409.5mm (front panel)
Name :
vandal proof metal keyboard
Description

DESCRIPTION: 103 keys (including 2 mouse buttons) compact format IP68 dynamic vandal proof stainless steel industrial keyboard with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with extremely good tactile feeling for stable and accurate input without any noise, one complete silicone rubber along the underneath of stainless steel top plate for easy mounting & sealing tightly with cabinet, 2 mouse buttons designed for right & left clicking, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, with numeric keypad. Wall mountable desktop version. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 513.0mm x 409.5mm (front panel)

MECHANICAL DATA
Actuator/keys 103 keys (including 2 mouse buttons)
Key top style Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel 0.45±0.05mm
Actuation Force 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Switch life more than 1 million of operations
Touch pad sealed and ruggedized tough touchpad
Touchpad cover Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Output (self-detectable depending on cable) PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
G.W. ≈5.0KGs
ELECTRICAL DATA
Supply Voltage +5V DC ± 5%
Current Rating 50mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP68
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

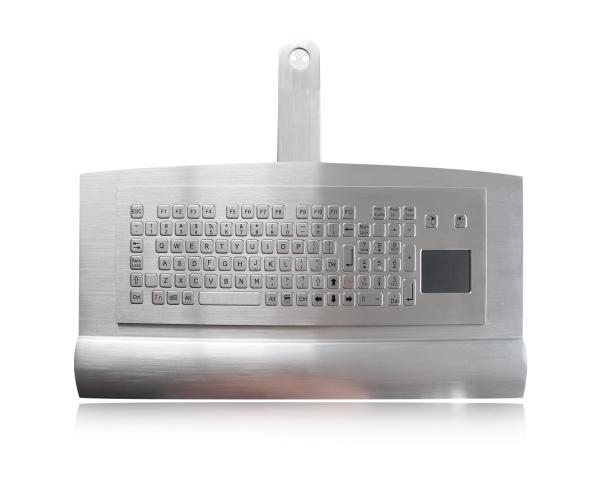

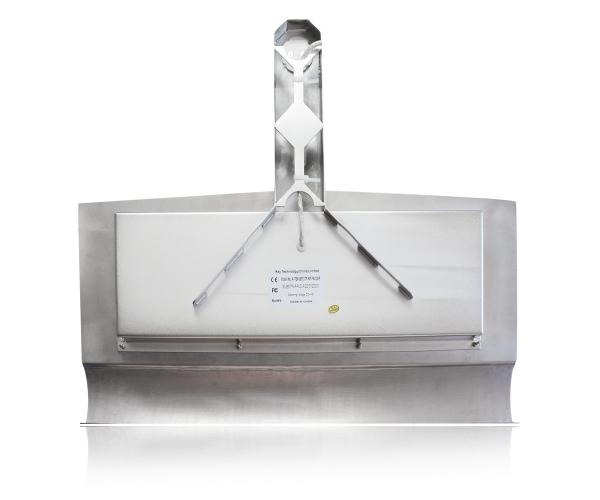

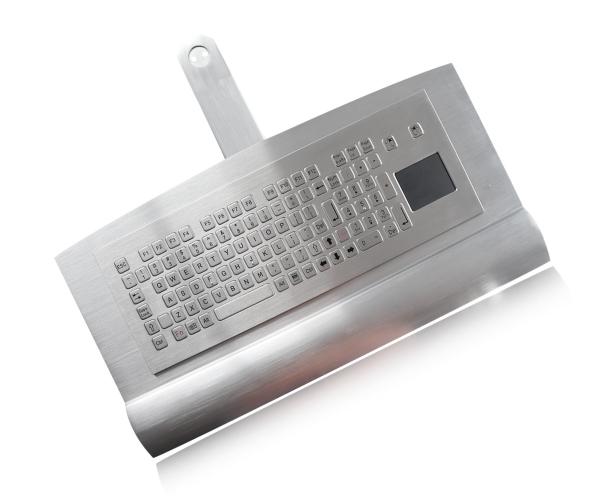

Industrial Keyboard With Touchpad Actual Photos:
IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
OUR COMPANY
IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
FAQ
www.rugged-key.com
www.key-tek.cn
www.ruggedized-keyboard.com

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.


IP68 Dynamic Vandal Proof Industrial Keyboard with 103 Keys & Touchpad
