Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M270-FN-BL-IT-NV-151B-DWP+M73TP
Place of Origin :
Shenzhen, China
Certification :
CE, RoHS, FCC, ESD, REACH, IP67, IP68
MOQ :
1pc
Price :
To be quoted
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Delivery Time :
ASAP Within 1-2 weeks upon payment confirmed
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Switch Type :
Military PCB with carbon-on-gold key switch technology
Dimensions :
Keyboard: 270.0mm x 110.0mm (L x W), Touchpad: 73.0mm x 76.0mm (L x W)
Weight :
0.90kg
Warranty :
1 Year
Backlight :
white Backlit
Compatibility :
All Windows, Linux, Unix, Mac OSX, Vxworks, Android
Name :
EMC Chiclet Keyboard
Description

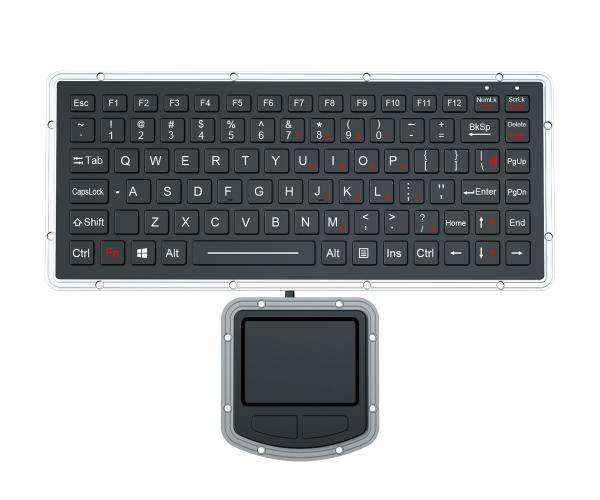

Double EMC Chiclet Keyboard With Touchpad Ultra-Thin Design Marine Keyboard

Product Description:

86 keys IP65 dynamic sealed and rugged durable ultrathin embedded chiclet keyboard with polymer keys, sealed and ruggedized touchpad with 2 mouse buttons for left/right clicking, 12 function keys(F1, F2, ... F12) on the top line for easy operation, which is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as military grade PCB, with carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mistyping. Adjustable white backlight included, meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards with 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.


DIMENSION: Keyboard: 270.0mm x 110.0mm (L x W), Touchpad: 73.0mm x 76.0mm (L x W)

Technical Parameters:

MECHANICAL DATA
Key 86 keys + 2 mouse buttons, durable and robust polymer keys
Key top style Protuberant rectangular keys with tactile feeling
Key technology Military PCB with carbon-on-gold key switch technology
Key size 14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys, 21.8mm x 14.0mm for Tab key, 68.0mm x 14.0mm for Space bar
Key travel 1.20mm±0.10mm
Actuation Force 1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys
Touch pad sealed & ruggedized tough touchpad
Touchpad cover Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
G.W. ≈0.90kgs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 30mA when backlight is off, 300mA with backlight on
Meet MIL-STD-461G (EMC, EMI, EMS, ESD):
1 CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
2 CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
3 CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
4 CS106 Conducted Susceptibility, Transients, Power Leads
5 CS112 Electrostatic Discharge Susceptibility
6 CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
7 CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
8 CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
9 RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
10 RE102 10kHz - 18GHz Radiated Emissions, Electric Field
11 RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
12 RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Lifespan > 5 years
Interface USB/PS2 optional
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -40℃ to +75℃
Storage temperature -45℃ to +85℃
Saline mist 96h, IEC60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
Humidity 3%~95%
Atmospheric pressure 60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection Level IP65 dynamic (front panel)
Vandal resistant IK09
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATION Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Packing and Shipping:

EMC Keyboard Packaging and Shipping

The EMC Keyboard comes in a compact and durable packaging that ensures safe delivery to our customers. The packaging is designed to protect the keyboard from any potential damage during shipping and handling.

Packaging Materials
  • Corrugated cardboard box
  • Bubble wrap
  • Plastic packaging tape
  • Protective foam inserts
Packaging Process

Our packaging process involves several steps to ensure the keyboard arrives in perfect condition:

  1. The keyboard is first placed in a plastic bag to protect it from any moisture.
  2. It is then wrapped in a layer of bubble wrap to provide cushioning and protection.
  3. The keyboard is placed in a corrugated cardboard box and secured with plastic packaging tape.
  4. Protective foam inserts are added to the box to prevent any movement during transit.
  5. The box is then sealed and labeled for shipping.
Shipping Options

We offer various shipping options to cater to our customers' needs:

  • Standard shipping: Delivery within 5-7 business days.
  • Expedited shipping: Delivery within 2-3 business days.
  • International shipping: Delivery times vary based on location.
Shipping Fees

Shipping fees are calculated based on the weight and destination of the package. Customers can view the shipping fees at checkout before making a purchase.

International Shipping

For international orders, customers are responsible for any customs or import duties that may apply. These fees are not included in the shipping fees and will be collected by the carrier upon delivery.

At EMC, we take great care in packaging and shipping our products to ensure they arrive in perfect condition. For any questions or concerns regarding shipping, please contact our customer service team.
