89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M380-DHP-FN-BL-DWT-151B-25KV-DT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
silicone
Backlight :
White
Keys :
110 keys (including 2 mouse buttons)
Key travel :
1.50mm±0.10mm
Protection Level :
IP65 dynamic (front panel)
Interface :
USB/PS2 available
Pointing device :
touchpad
Lifespan :
> 5 years
Key word :
rugged keyboard, silicone industrial keyboard
Description

Model NO: K-TEK-M380-DHP-FN-BL-DWT-151B-25KV-DT-DWP

DESCRIPTION FOR MILITARY KEYBOARD:

89 keys IP67 dynamic sealed and durable embedded silicone rubber military keyboard with a Force Sensing Resistor pointing device with 2 mouse buttons for left and right clicking , with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, desk top version with grey color stainless steel metal housing or rear panel mount solution wtih mounting holes along the edges of stainless steel back plate, adjustable white backlight included. FN + bulb button to control keyboard backlight on or off. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.). Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 380.0mm x 160.0mm x 30.9 (L x W x H)

MECHANICAL DATA
Keys 91 keys (including 2 mouse buttons)
Key top style Protuberant rectangular keys with tactile feeling
Key travel 1.50±0.10mm
Actuation Force 1.5N±0.2N (pressure point )
G.W. 3.0KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 50mA when backlight is off, 300mA with backlight on
Meet MIL-STD-461G (EMC, EMI, EMS, ESD)
1 CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
2 CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
3 CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
4 CS106 Conducted Susceptibility, Transients, Power Leads
5 CS112 Electrostatic Discharge Susceptibility
6 CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
7 CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
8 CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
9 RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
10 RE102 10kHz - 18GHz Radiated Emissions, Electric Field
11 RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
12 RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Lifespan > 5 years
Switch Contact Material Carbon-on-gold key switch technology
Interface USB
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -40℃ to +75℃
Storage temperature -45℃ to +85℃
Operating RH 3%~95%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection Level IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

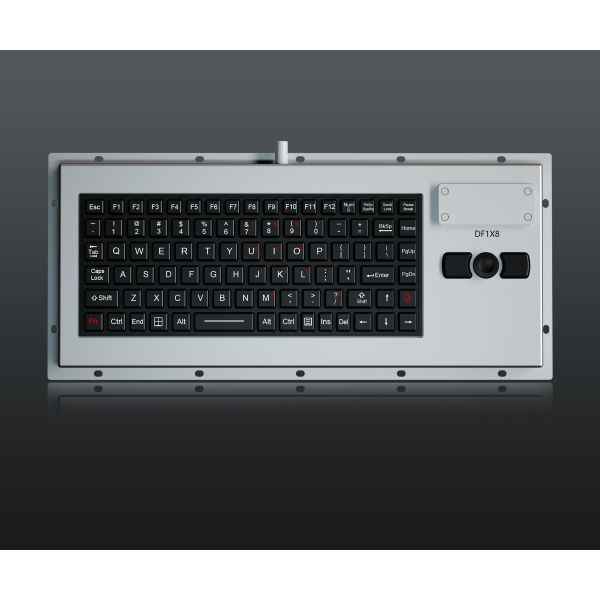

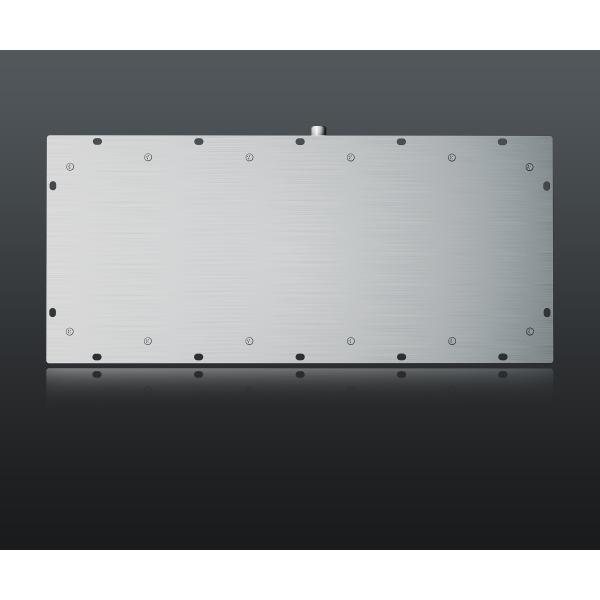

Actual Photos For Military Keyboard
89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard

89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
Key Technology China Limited89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard89 Keys Military Keyboard IP67 Dynamic Sealed And Durable Embedded Silicone Rubber Keyboard
