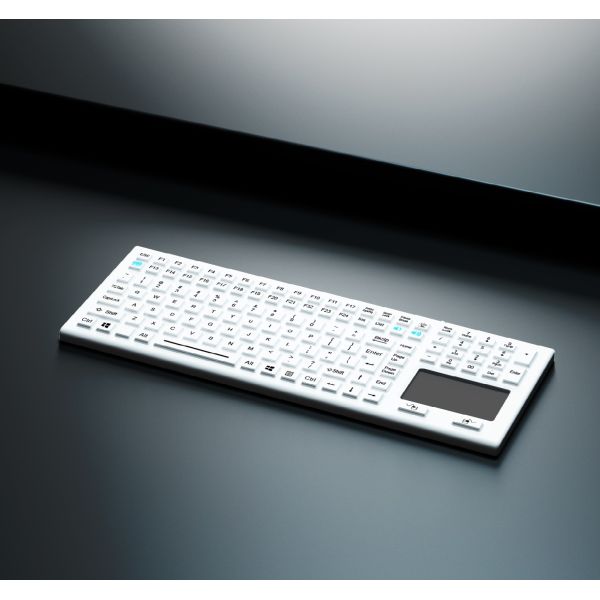

124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial
124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial
124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial
124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial
124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial
124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M369TP-KP-FN-BL-DT
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Price :
to be quoted
housing :
robust polycarbonate
application :
indutrial, medical
color :
black, white
USB :
Yes, PS2 optional
material :
silicone rubber
mouse :
touchpad
Name :
Medical keyboard
Description

Medical washable silicone rubber keyboard

DESCRIPTION: 124 keys IP68 dynamic sealed & ruggedized industrial silicone rubber contamination-proof keyboard with full keyboard functionalities with FN (F1, F2...F23, F24) on upper line, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position, with carbon-on-gold key switch technology with key stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, this washable keyboard is an ideal solution to withstand to most chemicals and liquids under harsh environment, standard alone desk top version. Blue backlight included. With direct light button for backlight on or off. With special button for power-off or power-on the entire keyboard without needing to take out the USB cable from PC USB port, which avoid to be with mis-operation during cleaning the keyboards.

DIMENSIONS: 369.0mm x 135.0mm x 11.0mm (L x W x H)

MECHANICAL DATA
Key 124 keys (including 2 mouse buttons)
Key top style Protuberant rectangular keys with tactile feeling.
Key Size 12.0mm X 12.0mm for normal keys
Key travel 1.50mm±0.10mm
Actuation Force 1.2N±0.2N (pressure point )
Switch life more than 5 million of operations.
Touch pad 1.3mm thick PCB, containing polyester film
Touchpad cover Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Output (self-detectable depending on cable) PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5V ± 0.25V
Current rating (active mode) < 10 mA
G.W. 0.80KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 50mA when backlight is off, 300mA with backlight on
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Carbon-on-Gold key switch technology with gold PCB
Interface PS2, USB available
Cable length Standard 2.0m, customized length available.
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Saline mist 96h, IEC60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
Humidity 100%
Atmospheric pressure 60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc.;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses MILITARY:Vehicle, aerospace, naval, defense, maritime, radar, console, portable, rugged laptop, UAV ground station etc.

Actual pictures:

124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial

124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial
