90 Keys Industrial Stainless Steel Keyboard With Sealed / ruggedized SS hula pointer
90 Keys Industrial Stainless Steel Keyboard With Sealed / ruggedized SS hula pointer
90 Keys Industrial Stainless Steel Keyboard With Sealed / ruggedized SS hula pointer
90 Keys Industrial Stainless Steel Keyboard With Sealed / ruggedized SS hula pointer
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B380-DHP-FN-DT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
to be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
material :
Stainless steel
connection :
USB / PS2
application :
Indutrial
Backlight color :
No
G.W. :
2.80KGs
Name :
industrial keyboard
Keyword :
stainless steel keyboard, metal keyboard
Description

Industrial metal keyboard

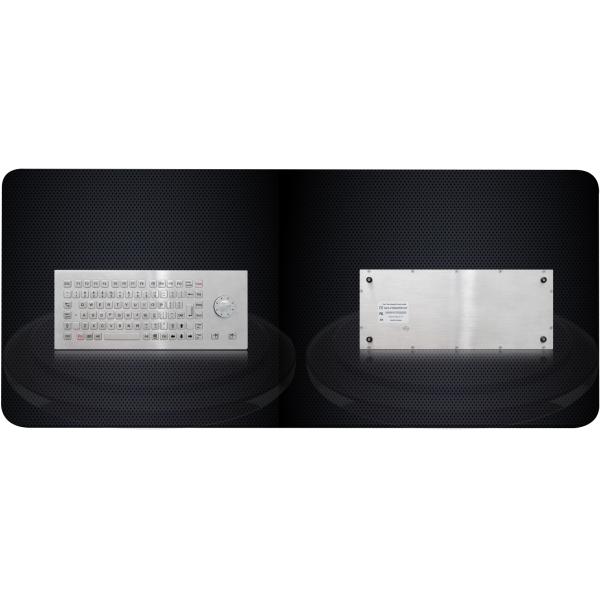

DESCRIPTION: 90 keys compact format IP68 dynamic waterproof, oil proof, dust proof and explosive proof stainless steel industrial keyboard with sealed & ruggedized tough stainless steel hula pointer for fast and accurate cursor position, 2 mouse buttons designed for right & left clicking, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology, all the keys are flat without raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, with 0.45mm short stroke with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION, or optional mountable desktop with mounting holes on the bottoms for fixing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSION: 380.0mm x 155.0mm x 21.5mm (L x W x H)

90 Keys Industrial Stainless Steel Keyboard With Sealed / ruggedized SS hula pointer

MECHANICAL DATA
Actuator/keys 90 keys (including 2 mouse buttons)
Key top style Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel 0.45±0.05mm
Actuation Force

3.5N±0.2N for key 14.0mm x 14.0mm (pressure point )

7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
G.W. ≈3.0KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 50mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 100%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP68
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATION Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
