Desktop Industrial Membrane Keyboard With OMRON Key Technology And Trackball
Desktop Industrial Membrane Keyboard With OMRON Key Technology And Trackball
Desktop Industrial Membrane Keyboard With OMRON Key Technology And Trackball
Desktop Industrial Membrane Keyboard With OMRON Key Technology And Trackball
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-D410-OTB-KP-FN-SW-DT
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2-3 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Membrane + stainless steel
Keys :
106 keys (including 3 mouse buttons)
G.W. :
3.80KG
Resolution :
800 DPI
Mounting :
Desktop version
Trackball :
38.0mm optical trackball
Color :
White or black
Name :
Industrial Membrane Keyboard
Keyword :
Industrial keyboard trackball, membrane keyboard, industrial keyboard
Description

Industrial Membrane Keyboard With OMRON Key Technology & Trackball

Description For Industrial Membrane Keyboard : 106 keys IP68 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position, fully sealed and ruggedized industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely comfortable and light tactile feeling for reliable data input, with FN+LOCK combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, movable desktop version with rugged stainless steel housing.

Industrial Membrane Keyboard Dimensions: 420.0mm x 170.0mm x 50.5mm (L x W x H)

Industrial Membrane Keyboard MECHANICAL DATA
Number of Keys 106 keys (including 3 mouse buttons)
Key switch Technology OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force 2.0N±0.2N (press point)
Key Travel 0.45±0.05mm
Colors white, black
G.W. ≈3.8KGs
Trackball IP68 washable 38mm stainless steel optical ball, or silver hardened resin optical ball
Trackball resolutions 800DPI
Industrial Membrane Keyboard ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 100mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
Industrial Membrane Keyboard ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 3%~95%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
Industrial Membrane Keyboard RELIABILITY
RoHS, CE, FCC
Protection Level IP68
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

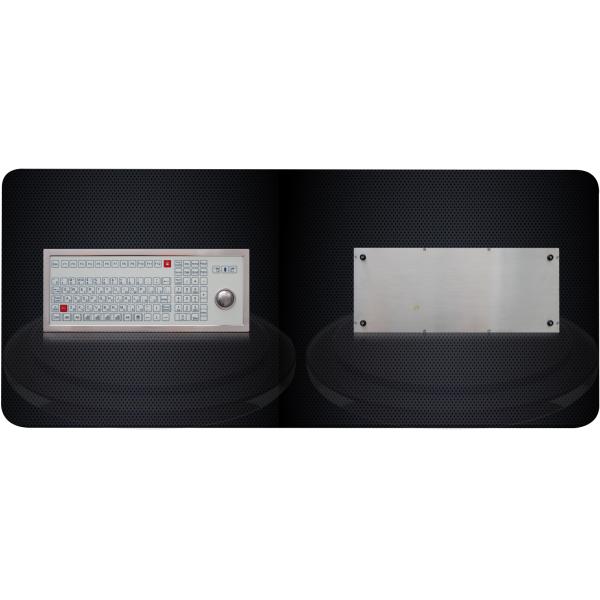

Industrial Membrane Keyboard Actual Photos
Desktop Industrial Membrane Keyboard With OMRON Key Technology And Trackball
