Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G
Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G
Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G
Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G
Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G
Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A365TP-FN-DT-DWP-2.4G
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Stainless steel
Keys :
85 keys
Key travel :
2.0mm long stroke
Interface :
PS2, USB
Touchpad :
Composite
Dimensions :
365.0mm x 165.0mm x 28.5mm (L x W x H)
Protection Level: :
IP67
Vandal Resist:ant :
IK08
Description

2.4G IP67 Wireless Metal Industrial Keyboard With Ruggedized Touchpad

MODEL NO.: K-TEK-A365TP-FN-DT-DWP-2.4G
DESCRIPTION:
1)85 keys compact format IP67 2.4G wireless stainless steel industrial keyboard with one receiver for signal transmit up to 10 meters.
2) IP65 dynamic sealed & ruggedized touchpad with scroll function (optional) for fast and accurate cursor position.
3) Functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation.
4)Industrial PCB with carbon-on-gold key switch technology, long stroke 2.0mm with excellent tactile feeling for fast and accurate data input.
5)Movable stand alone DESK TOP VERSION.
6)It is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

MECHANICAL DATA:

Key

85 keys, super quality SUS304 brushed stainless steel

Key top style

Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 70mm for space bar.

Key travel

2.0mm long stroke

Switch life

more than 5 million of operations

Actuation Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Stainless Steel Housing
Super quality brushed stainless steel.

Operating temperature

0℃ to +45℃
Storage temperature:
 -10℃ to +60℃
Dimensions
365.0mm x 165.0mm x 28.5mm (L x W x H)
G.W.:
3.00KGs

ELECTRICAL DATA:
Supply Voltage:
+4.5V DC +/-5%
Current Rating:
appr. 50mA
Lifespan
> 5 years
Switch Contact Material:
Carbon-on-Gold key switch technology PCB.
Interface:
PS2, USB available.
EMC Standard: EN 55032:2015
EN 55035:2017
OS:
All Windows, Linux, Unix, Mac OSX, Vxworks, Android

DIMENSIONS: 365.0mm x 165.0mm x 28.5mm (L x W x H)

RELIABILITY :
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK08
MTBF >20000H
MTTR <30min
Actual Photos:
Front View
Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G

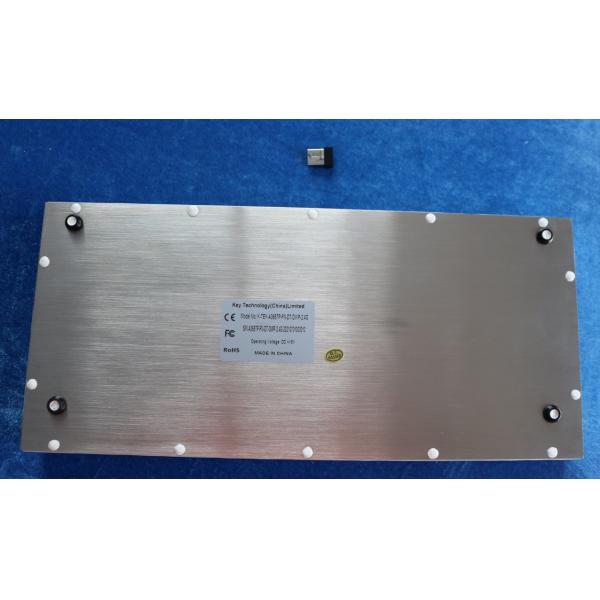

Back View
Wireless Metal Keyboard IP67 With Touchpad IP67 Movable Desk Top 2.4G
FAQ
www.rugged-key.com
www.key-tek.cn
www.ruggedized-keyboard.com

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
