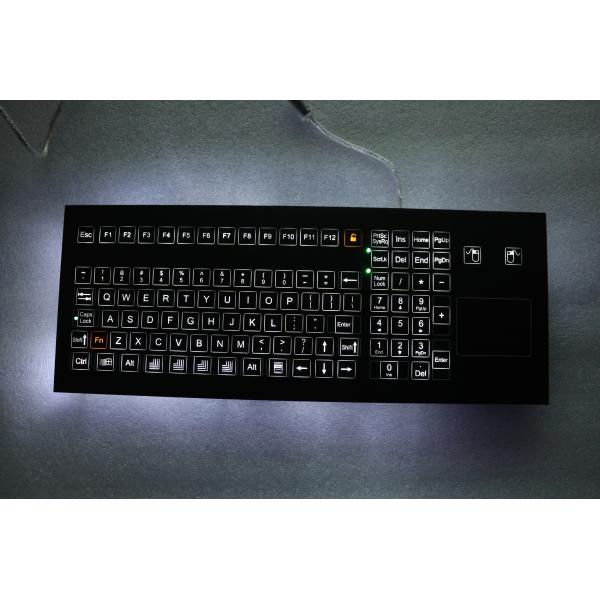

Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-D410TP-KP-FN-BL-SW
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Industrial Membrane
Membrane Colour :
Black or White
Keys :
108 keys
Numeric keypad :
Yes
Backlight :
White
Interface :
USB or PS/2
Switches :
Omron
Mounting :
Top Panel Mounting
GW :
1.3 KGS
Dimensions :
410.0mm x 160.0mm
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Description
Washable Backlit Membrane Keyboard With OMRON Switch Industrial Hospital
DIMENSIONS: 410.0mm x 160.0mm (top panel)
DESCRIPTION:
  • 108 keys IP67 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line

  • IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position

  • 2.0mm thickness industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input

  • With “FN+Lock” key combination for easy cleaning via lock/disable the entire keyboard without taking the keyboard from PC, surface mounted extremely flush with anti-microbial

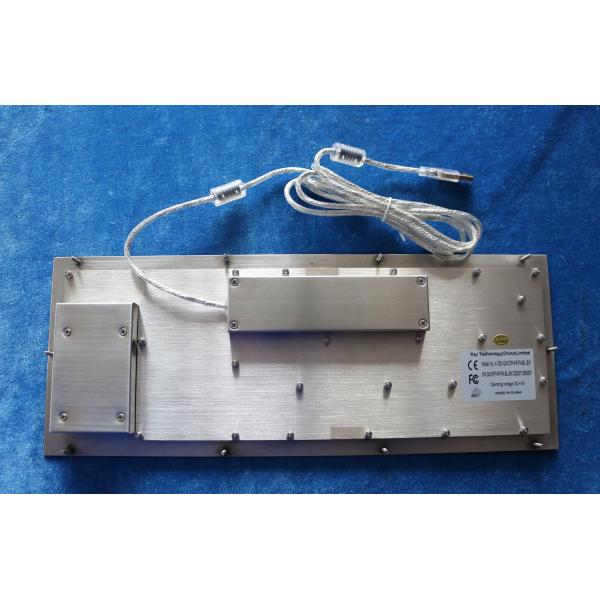

  • Durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 1.5mm stainless steel plate with brushed treatment.
  • With top panel mounted solution. White backlight included to fit for dim conditions.

APPLICATIONS:

-This keyboard is ideal for environments ranging from manufacturing to material handling to medical settings. Numeric pad for easy data entry.
-Lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
-MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
-MILITARY: Army, Navy, Air force
-INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc
OTHER INDUSTRIES

SPECIFICATION:

Number of Keys: 108 Keys
Key switch Technology: OMRON switch technology with short stroke 0.45mm
Actuation Force: 1.4N+/-0.1N for key 13.0mm x 13.0mm (press point)
Key Travel: 0.45mm
Protection Level: IP67(front panel)
Mounting Type: Top panel mounting.
Keyboard Colors: White or Black
Keyboard Dimensions: 410.0mm x 160.0mm (Front Panel)
G.W.: 1.50KGs
ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 300mA (with backlight on)
EMC Standard: EN 55032:2015; EN 55035:2017
Lifespan > 5 years
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android
ENVIRONMENTAL ADAPTABILITY :
Operating temperature: -20℃ to +60℃
Storage temperature: -30℃ to +70℃
Saline mist: 96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Operating RH: 100%
Atmospheric pressure: 60-106Kpa

Washable Backlit Industrial Membrane Keyboard With OMRON Switch
Washable Backlit Industrial Membrane Keyboard With OMRON Switch


TOUCHPAD:
Touchpad cover: Composite
Motion Detection


Method: capacitive
Resolution: 40 counts / mm
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 V DC ±0.25V
Current rating (active mode): 17 mA



RELIABILITY
RoHS , CE, FCC, ESD
Protection Level: IP67 (front panel)
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min

Washable Backlit Industrial Membrane Keyboard With OMRON SwitchWashable Backlit Industrial Membrane Keyboard With OMRON Switch

ENVIRONMENTAL ADAPTABILITY
