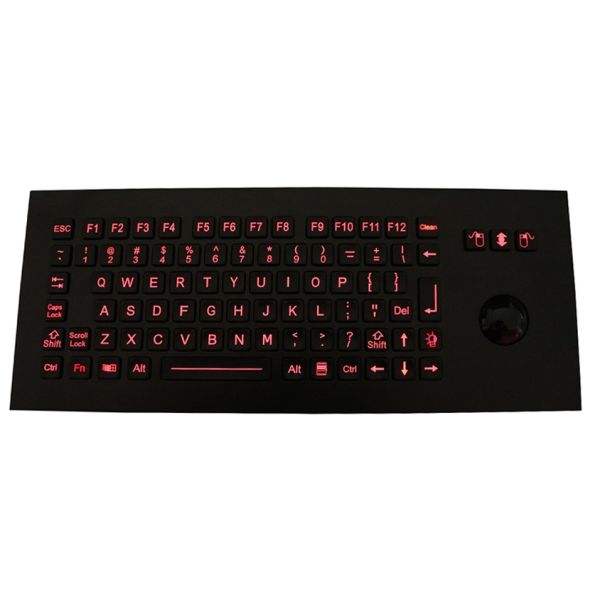

SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M361-MTB-FN-BL-BT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
SUS304
Keys :
85 keys
Dimensions :
361.0mm x 145.0mm (L x W)
Interface :
PS2, USB available
Trackball :
Mechanical trackball
Backlight :
Yes
Mounting :
Top Panel with thread bolts
Surface :
black titanium electro-plated
Protection Level :
IP67 /IK09
Customized Layout :
Yes
Description

Black Navy Metal Keyboard with Backlight Trackball Panel Mount

Model NO: K-TEK-M361-MTB-FN-BL-BT-DWP
DESCRIPTION:
1)85 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard
2)With durable polymer keys.With IP65 static 38.0mm black hardened resin mechanical trackball module in 400 DPI resolutions for fast and accurate cursor position, stainless steel mechanical trackball module optional.
3)Fully sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (1.5mm) with extremely good tactile feeling for fast and accurate data input without any noise.
4)Functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC.
5)3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,
6)Strong durable polymer keys caps with laser technology for backlight out, with adjustable backlight included.
7)Stainless steel top plate with sealing gasket and threaded bolts for top panel mounting solution.
8)High quality durable black titanium electroplated on the top stainless steel plate, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

MECHANICAL DATA

Key

85 keys.Durable polymer keys

Key top style

Strong durable polymer
keys caps with laser technology for backlight out,

Key Size

14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 68mm for space bar.

Key travel

1.5mm

Switch life

more than 5 million of operations

Actuation Force
1.8N+/-0.1N for the normal keys, 2.5N+/-0.1N for the middle keys

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed stainless steel

Interface

USB or PS/2
Trackeball:
38mm (1.5') diameter IP65 static mechanical trackball

Keyboard Dimensions

361.0mm x 145.0mm (L x W )

DIMENSIONS: 361.0mm x 145.0mm (front panel)
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating:
50mA for keyboard with trackball without backlight.
300mA for keyboard with mechanical trackball with backlight on.
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan>5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android
ENVIRONMENTAL ADAPTABILITY
Operating temperature: -20℃ to +60℃
Storage temperature: -30℃ to +70℃
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days, IEC 60512-6
Dry heat test at + 85℃: 10 days, IEC 60512-6
RELIABILITY
RoHS, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK09
Key Lifespan >5 million actuation
MTBF >20000H
MTTR <30min
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
SUS304 PS2 USB Marine Metal Keyboard With Backlit Trackball
FAQ

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
