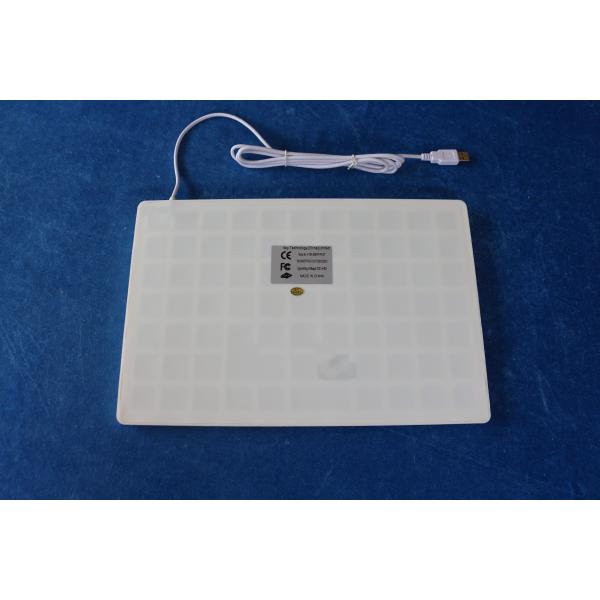

washable computer keyboard With 89 Keys Medical Grade Keypads touchpad Industrial Keyboard

Sepcial Features:

1.89 keys IP68 dynamic sealed & ruggedized industrial silicone rubber contamination-proof keyboard with full keyboard functionalities with FN (F1, F2...F23, F12) on upper line

2. integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position

3.gold-finnish PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise

4. with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, this washable keyboard is an ideal solution to withstand to most chemicals and liquids under harsh environment

5.standard alone desk top version. Standard US office layout. With special button for power-off or power-on the entire keyboard without needing to take out the USB cable from PC USB port, which avoid to be with mis-operation during cleaning the keyboards, without backlight

6.DIMENSIONS: 343.0mm x 228.0mm (L x W)

MECHANICAL DATA:

MAIN FEATURE:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust,
dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
With firm tactile key feel, key travel 1.50mm key travel.

Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Integrated touchpad.
Integrated numeric keypad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone.
Low-profile keys for easy cleaning
Key life: 5 millions

MECHANICAL DATA
Key: 89 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5V DC ± 0.25V
Current rating (active mode): 17 mA
G.W.: 0.80KGs
Dimensions: 343.0mm x 228.0mm (L x W)

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA

EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.

Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃

Saline mist:96h, IEC60512-6

Damp heat test at +40℃: 21 days, IEC 60512-6

Dry heat test at +85℃: 10 days, IEC 60512-6

Operating RH: 100%

RELIABILITY
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
