Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad
Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad
Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad
Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B107TP-BT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Metal stainless steel
Application :
Kiosk, medical, railway, navy
Mouse :
Industrial touchpad
Keys :
2 keys
Interfaces :
USB/PS2
Name :
Touchpad mouse
Description

Black Metal Industrial Touchpad Panel Mount for Public Access Kioisk


DESCRIPTION: IP65 dynamic sealed and stainless steel ruggedized tough touchpad with IP65 dynamic sealed stainless steel mouse buttons, with top panel mounting. One complete silicone rubber along the top stainless steel plate for easy mounting & sealing tightly with cabinet. High quality durable black titanium electroplated on the top stainlessMsteel plate. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 107.0mm x 120.0mm (top panel)

TOUCHPAD TECHNICAL SPECIFICATION

ITEM SPECIFICATION
Mechanical Front Plate Quality brushed stainless steel
Touchpad thickness 1.5 mm PCB thickness inclusive of mylar layer
Validated touch width 45.0mm (max)
Validated touch length 61.0mm (max)
Mounting Solution top stainless steel plate with mounting screw bolts
Back Metal Cover Rear side integrated electronics protected by a metal cover
Touchpad lifespan > 5 years
Dimensions

Touchpad: 61.0mm x 45.0mm;

Front Mounting Panel: 107.0mm x 120.0mm (front panel)
Interface PS2 and USB both available
Electrical Power supply DC +5V±5%
Work current 17 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP65 dynamic , IK09
Static Release: 15 KV (front panel)
EMC Standard: EN 55032:2015, EN 55035:2017
Environmental Operating temperature: -20°C to +65°C
Storage temperature: - 30°C to + 75°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability MTBF >20000H
MTTR < 30min
Key Switch Lifespan >1 million actuations
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
Application Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.


Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad

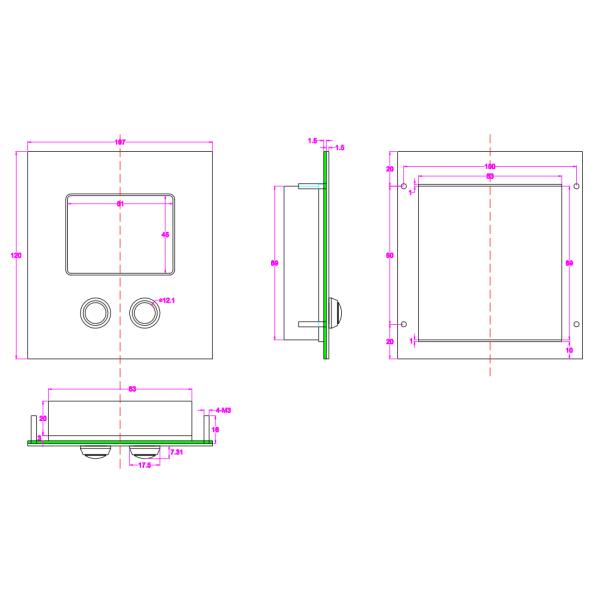

Industrial Touchpad Mechanical Drawing:
Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad
Our Company:
Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad
Industrial Touchpad Panel Mount For Public Access Kiosk Metal Keypad
