2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65
2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65
2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65
2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65
2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65
2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M90TP-IL-SS
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Price :
To be quoted
Key :
2 keys
Material :
Rubber
Color :
Black
Housing :
Stainless Steel
Switch life :
more than 5 million of operations
Cable Length :
2.0m
Dimensions :
90.0mm x 90.0mm (front panel)
G.W. :
0.50KGs
Description

IP65 Rugged Silicone Touchpad Industrial Waterproof Pointing Device

DESCRIPTION: IP65 dynamic Sealed and Ruggedized Rubber Touchpad for fast and accurate cursor position, with 2 raised

mouse buttons under touchpad, with stainless steel housing protects the electronics controller, with mounting
holes along the rear panel mounting plate for rear panel mounting.
MAIN FEATURES:
-IP65 dynamic Sealed and Ruggedized Touchpad for fast and accurate cursor position
-Special dura-coating for excellent mechanical and chemical resistance
-With firm tactile key feel, key travel 1.5mm.
-Enclosure: industrial silicone
-Ease of customizing with multiple languages, to accommodate foreign or custom variants.
-PS/2, USB connection cables that plug directly into computer like keyboard operations.
MECHANICAL DATA:
Keys: 2 keys
Key top style Protuberant rectangular keys with tactile feeling
Touchpad Cover: Composite Mutual Capacitance sensing
Switch life: More than 5 million of operations
X/Y Position Resolution: 1000 points/inch(40 points/mm)(graphics tablet mode)
Validated touch width: 40.33mm (max)
Validated touch length: 56.14mm (max)
Output (self-detectable depending on cable): PS2 or USB
Cable Length: 2.0m
G.W.: 0.50KGs

ELECTRICAL DATA :
Supply Voltage: +5V DC +/-5%
Current Rating: 17 mA
EMC Standard: EN 55032 : 2015 , EN 55035: 2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB
Interface: PS2, USB available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY :
Operating temperature: -20℃ to +60℃
Storage temperature: -30℃ to +70℃
Humidity: 5%--95%
Atmospheric pressure: 60-106Kpa

RELIABILITY:
RoHS, CE and FCC
Protection Level: IP65
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min

APPLICATIONS:

  • MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
  • MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
  • MILITARY: Army, Navy, Air force
  • INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
  • OTHER INDUSTRIES

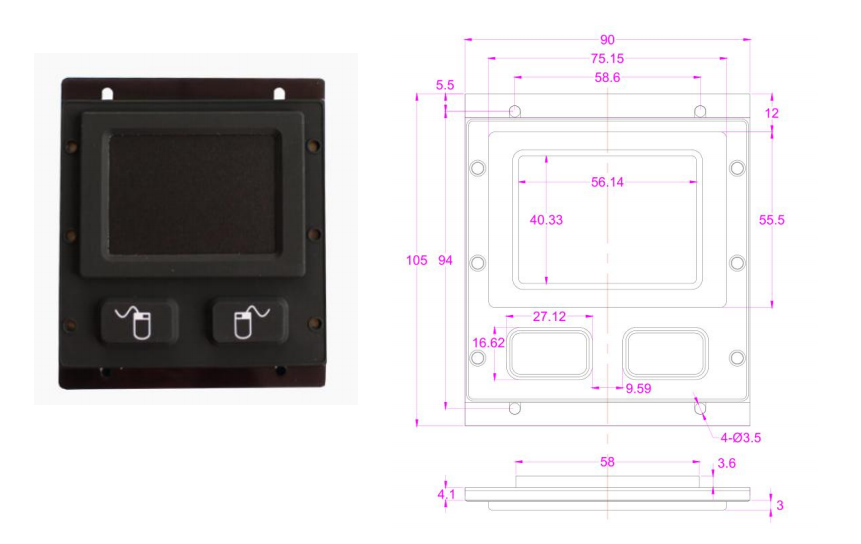

DIMENSIONS : 90.0mm x 90.0mm (front panel)
2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65

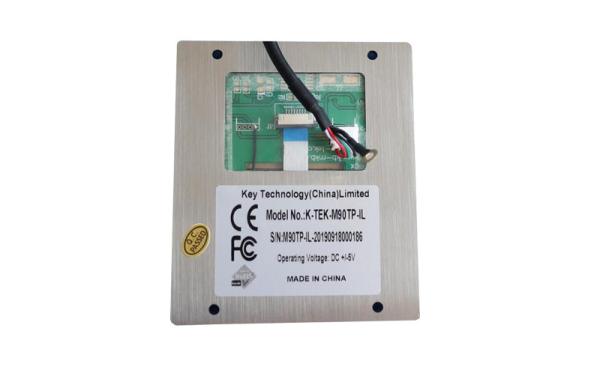

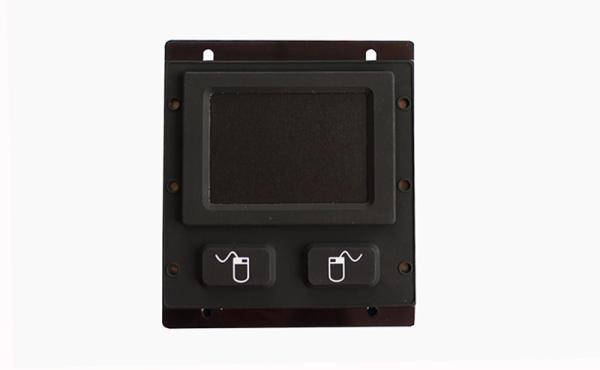

ACTUAL PHOTOS:

2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65


2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65

------------------------------------------- Our Certifications: -------------------------------------------------------

2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65

2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65

------------------------------------------------------Company Tour ----------------------------------------------------

2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65

FAQ

Q1) Are you factory ?
A:Yes ! Key Technology (China) Limited is a professional manufacture in Rugged keyboards for more than 14 years. Our Innovative design and superior quality make Key Technology popular all over the world.

Q2) Can you customize the surface and program of your product according to my requirements?
A:Yes. You need to provide the surface draft !

Q3) Is your keyboard waterproof ?
A:We do have waterproof metal keyboards with degree IP65-IP68.

Q4) Can you do a sample for me?
A: Yes, we can make you a sample for your approval.
