Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball
Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball
Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball
Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball
Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball
Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A361-OTB-FN-BL-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Price :
To be quoted
Material :
Stainless steel
Backlight :
Blue or Red
Mounting :
Top Panel with thread bolts
Interface :
USB or PS/2
Protection Level :
IP67
Vandal Resistant :
IK08
Description

Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball

DESCRIPTION:
-84 keys compact format IP67 static vandal proof stainless steel industrial keyboard .
-With IP68 dynamic rated washable 38.0mm stainless steel optical trackball module ,which is 800DPI resolutions .
-Function keys F1, F2..F10, F11, F12 are on the top panel for easy operation.
-Industrial PCB with carbon-on-gold key switch technology .
-Long stroke (2.0mm) for fast and accurate data input without any noise.
-3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling.
-Stainless steel top plate with threaded bolts for top panel mounting solution.
-Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out.
-With adjustable industrial blue or red backlight included,which is good for outdoor application.
-It can withstand harsh environments(direct rain,much dynamic water, oil, dirt, salt mist etc) and no rust risk and anti-salt spray corrosion.

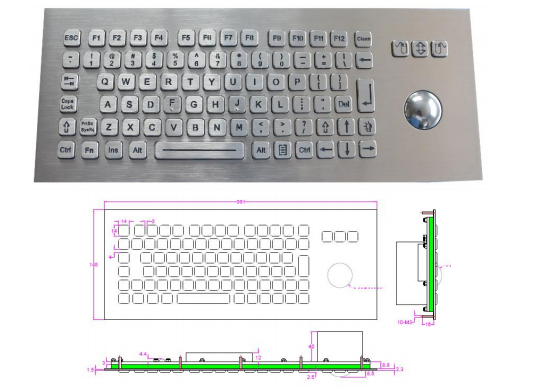

DIMENSIONS: 361.0mm x 145.0mm (front panel)

Application:
-This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
- internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
-Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MECHANICAL DATA:
Actuator/keys: 84 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 3.0mm thickness brushed & oxidized aluminium
Tracker ball: IP68 dynamic 800DPI optical trackball
G.W.: 1.80KGs
Dimensions: 361.0mm x 145.0mm (front panel) , 343.0mm x 125.0mm (back panel)
ELECTRICAL DATA :
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 300mA
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB
Interface: PS2, USB available
OS: All Windows, Linux, Unix, Mac OSX, Android
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF

>20000H
MTTR <30min
ENVIRONMENTAL ADAPTABILITY :
Operating Temperature: -20oC to +60oC
Storage Temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric Pressure: 60-106Kpa
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6


Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball

Actual Photos:

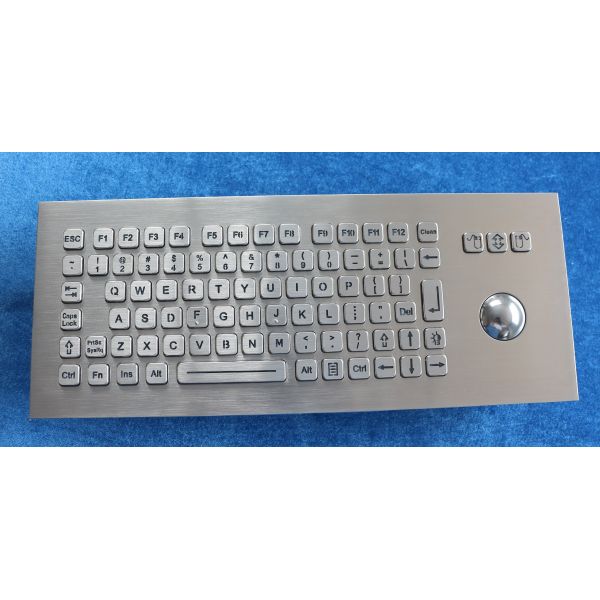

Keyboard without backlight

Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball

Back View

Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball
Panel Mounted Metal Rugged Keyboard With Backlit USB Optical Trackball

FAQ

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
