Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-TP94-DML-ESD-PS2
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Color :
Black
Mounting solution :
panel mounted
Interface :
USB or PS2
Description

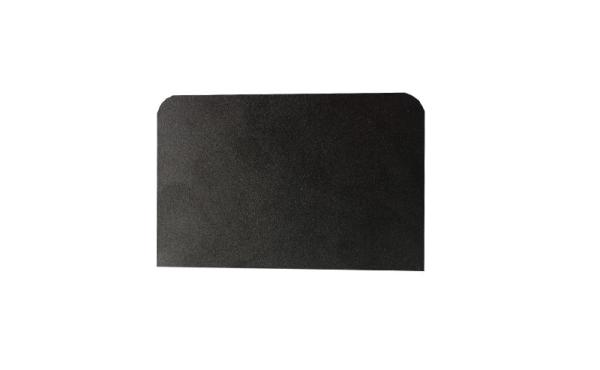

IP67 Trackpad module with highest level of control and accuracy

Model NO: K-TEK-TP6549-PS2

DESCRIPTION: K-TEK-TP6549-PS2 is a high performance humanize designed touchpad module especially for Laptops, Notebooks and EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers. Function as complete computer mouse via PS2 interface. Plug-and-play. With multi-touch functionality in difference with conventional mouse.

MAIN FEATURES:

Standard PS2 interface

Supports X-Y motion

Scrolling, left & right click

Multi-touch functionality

Standard white and blace color for optional

ELECTRICAL DATA

Parameter Sym. Ratings
Supply Voltage VCC 2.6V to 5V
Input Voltage VIN -0.3V to +6V
Output Voltage VOUT -0.3V to +6V
Operating Temperature Range TB 0°C to +60°C
Storage Temperature TS -40°C to +85°C

Parameter Sym. Condition Min. Typ. Max. Unit
Operating voltage VCC 2.8 3.3 5.0 V
Input leakage IIN V IN =V CC, V SS ±1 mA
Input high voltage VIH 2.0 V
Input low voltage VIL 0.8 V
Output low voltage VOL1 I OL1 = 10 mA 0.4 V
ESD Level 4 4 8 KV

CN1 PIN DEFINITION :

1 2 3 4 5 6 7 8
VDD PS2/DATA PS2/CLK RIGHT LEFT GND NC NC
